Help modifying startTasksFrom to support sub-WorkflowTasks

[hyjkim]

Pyflow has a nice option of starting from a particular task id when a workflow is run. eg,

wf = SomeWorkflow()
wf.run(startFromTasks='task_id')

Which works great as long as your workflows are just one level deep. In some instances, I'd like to start from a specific subworkflow task. Take the following example:

from pyflow import WorkflowRunner
import sys

class ChildA(WorkflowRunner):
    def workflow(self):
        self.flowLog('ChildA called')


class ChildB(WorkflowRunner):
    def workflow(self):
        self.flowLog('ChildB called')
        gcc_wc = GrandchildC()
        gcc_task = self.addWorkflowTask('grandchild_c', gcc_wc)

        gcd_wc = GrandchildD()
        self.addWorkflowTask('grandchild_d', gcd_wc, dependencies=gcc_task)

class GrandchildC(WorkflowRunner):
    def workflow(self):
        self.flowLog('GrandchildC called')


class GrandchildD(WorkflowRunner):
    def workflow(self):
        self.flowLog('GrandchildD called')

class Master(WorkflowRunner):
    def workflow(self):
        a_wf = ChildA()
        a_task = self.addWorkflowTask('child_a', a_wf)
        b_wf = ChildB()
        self.addWorkflowTask('child_b', b_wf, dependencies = a_task)

if __name__ == "__main__":
    startFromTasks = None
    if len(sys.argv) > 1:
        startFromTasks = sys.argv[1]
    wf = Master()
    wf.run(startFromTasks=startFromTasks, isContinue='Auto')

Where this workflow is launched as

python workflow.py

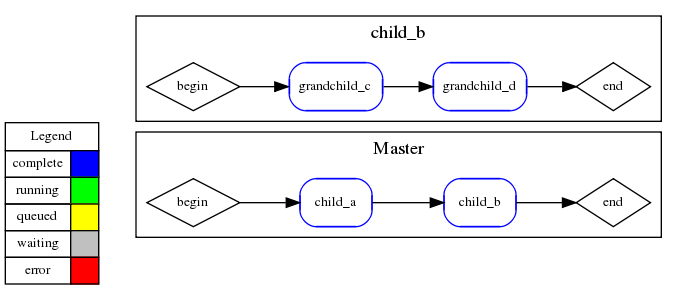

Running the whole workflow generates a task graph like this:

Like in my initial example, it's simple enough to launch from a child workflow:

python workflow.py child_b

But trying to start from a specific grandchild workflow results in no tasks being run at all:

python workflow.py child_b+grandchild_d

I'm guessing this is due to the way that pyflow builds its DAG. A grandchild task will not be added to the DAG if the child task is already marked as complete.

Any ideas on how I could extend pyflow to support this feature?

[ctsa]

Thanks for finding this issue and providing all the details. I won't be able to take a deep dive into this one anytime soon but it seems probable that child_b is being erroneously marked as complete, which would produce the behavior you describe. It's likely to be an issue in here:

https://github.com/Illumina/pyflow/blob/master/pyflow/src/pyflow.py#L2351-2370

Note you might want to try disabling the auto-continuation when you test this -- that wasn't the problem in this case but you could be building up a completion history which would complicate this test otherwise.
