Motor Pin Detect incorrect connection #1
Description

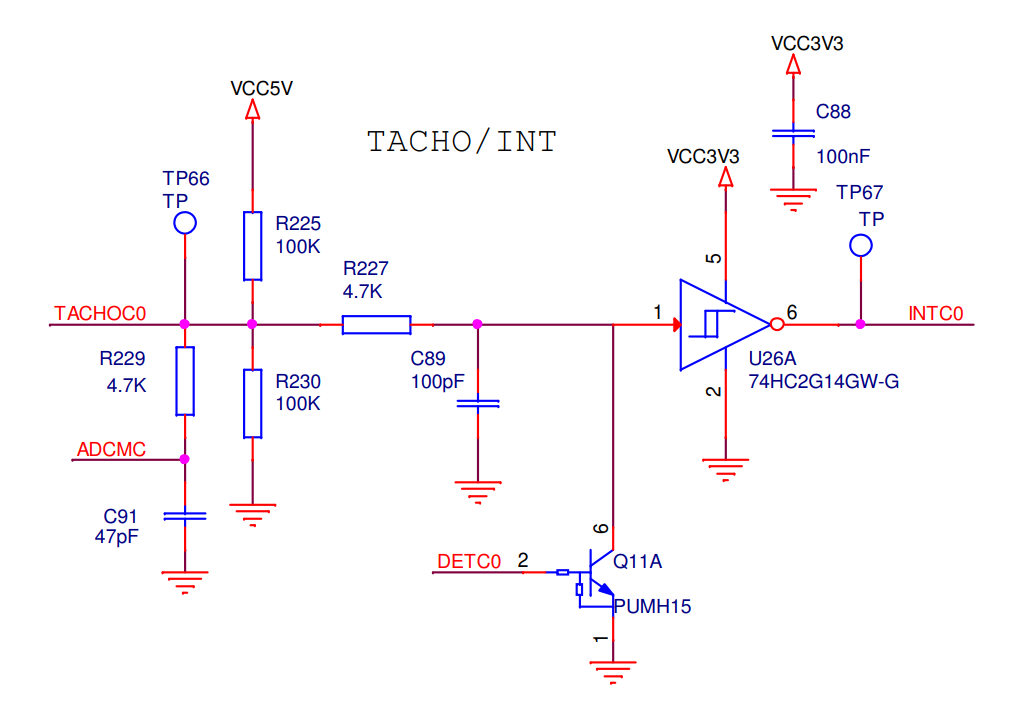

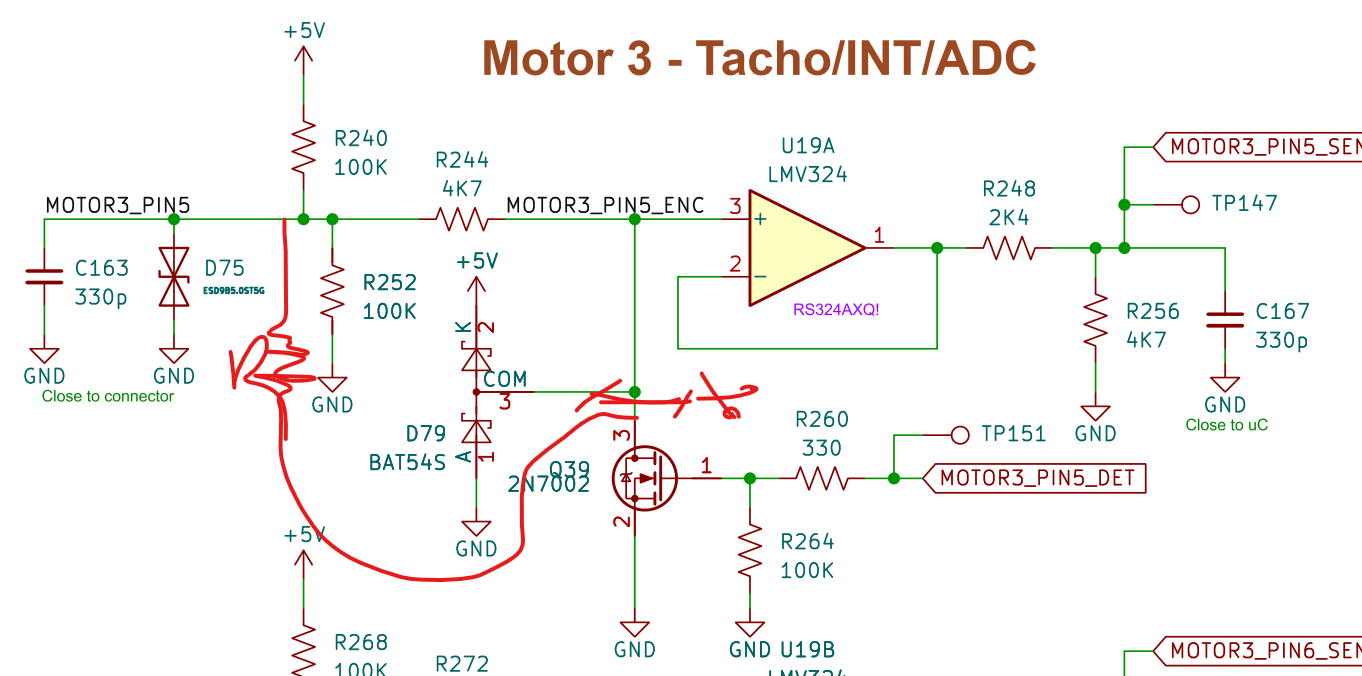

The pulldown transistor on the motor encoder input should have a different 4k7 resistor connected to the connector in order to make the voltage divider correctly.
{{ message }}
The pulldown transistor on the motor encoder input should have a different 4k7 resistor connected to the connector in order to make the voltage divider correctly.
