Base level offset

[davepypy]

Hi,

we're using a Hamamatsu ORCA Flash 4.0 V2 sCMOS camera for which the stated e-/ADU conversion factor is 0.46 e-/count and "dark offset" is 100 counts:

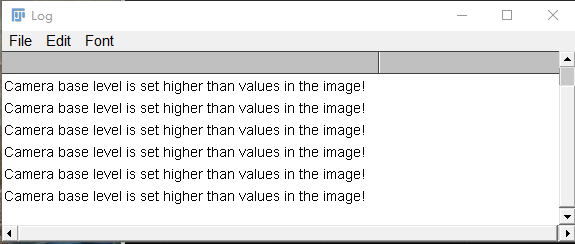

However, if these values are entered into the camera parameter settings, ThunderSTORM complains that the base level offset is higher than the signal:

What might be the issue here? Is it correct that the "dark offset" has to be given in ADU counts and not electrons?

Thanks and best regards,
Dave

[kclwcic]

Wondering if there was a resolution to this - Dave, did you find the answer?

[cleterrier]

Dark offset has to be entered in ADU i.e. 100 Christophe Le mer. 2 août 2023, 10:24, Wohl Cellular Imaging Centre < ***@***.***> a écrit :

…

Wondering if there was a resolution to this - Dave, did you find the answer? — Reply to this email directly, view it on GitHub <#71 (comment)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AAIDLC2MBJW25U5PZUDANSTXTIE6NANCNFSM4SIW5IQA> . You are receiving this because you are subscribed to this thread.Message ID: ***@***.***>
