A very small util for rendering .obj files in .tga format. Uses DXMath and DX SimpleMath (mostly targeting the latter, but seeing as SimpleMath sucks as a DXMath wrapper)

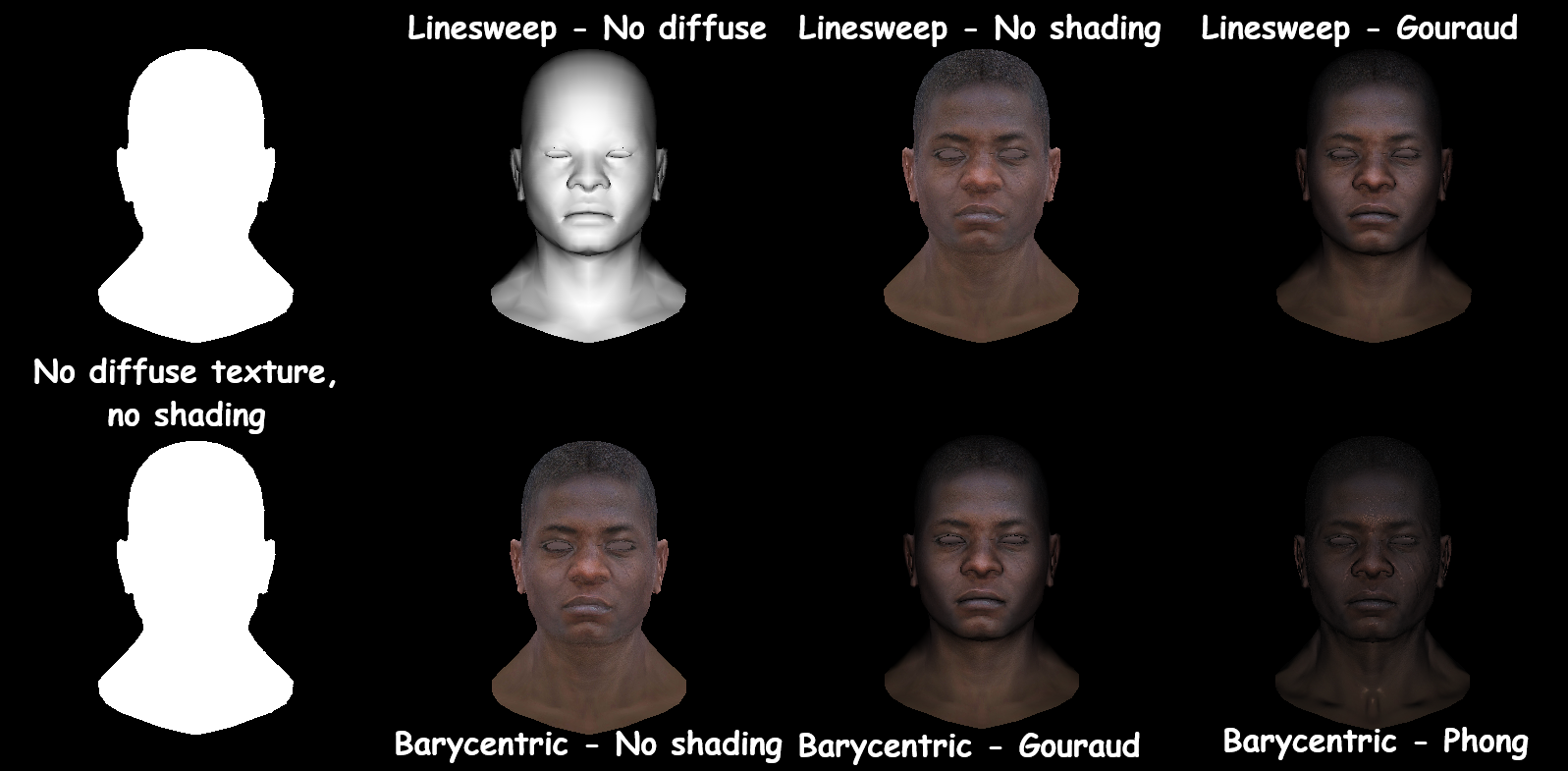

Supports two rasterization types - Line Sweep and via the Barycentric coordinates. Both algorithms support shading - Gouraud for the Line Sweep and Gouraud/Phong for Barycentric. Shading can be turned off.
Includes ability to set scene parameters (check "Usage" for more info)
./zr filename.obj - you can include as many .obj files as you wish. At least one is required.
Automatically links filename_diffuse.tga as the diffuse texture. If not present, the result will be unlit.
Automatically links filename_nm.tga and filename_spec.tga as the normal/specular textures (for Phong shading only). If any of the two not present, shading will be switched to Gouraud.
Options:
-
./zr --help - Display help message
-
-o fileName(.tga) - Output filename. Can ignore the type, fills automatically. If not stated, saved as inputFilename.tga
-
--light x y z - Light source direction. Default: 0 0 1
-
--center x y z - Lookat position. Default: 0 0 0
-
--camera x y z - Camera position. Default: 0 0 1
-
--up x y z - Up vector direction. Default: 0 1 0
-
--width x - Width of the output. Default: 800
-
--height x - Height of the output. Default: 800
-
--raster type - Rasterization type (linesweep/barycentric). Default: barycentric
- Linesweep algorithm does not support Phong shading
-
--shader type (none/gouraud/phong) - Sets active shader
- None - no shading, just renders the model
- Gouraud - default for Linesweep rasterization algorithm
- Phong - default for Barycentric rasterization algorithm. Unavailable for Linesweep algorithm and models without the any of the three given textures
-
--phongcoef x y z w - Set Phong lighting coefficients in order - Ambient, Diffuse, Specular. Default: 5 0.5 0.35
-
--dumpZBuffer file - Dump Z-buffer file. If not stated, doesn't do the dumping
Repo includes three test input files
- model.obj with model_eye.obj (stolen for education purposes) - includes diffuse, normal and specular textures
- smmac.dff (peak 3d design) - includes diffuse texture only
.obj files are not included in the build due to Windows recognizing them as a virus. lmao.
Windows only, just use make
