ImGui Desktop Application

This repository provides a basic application framework using Dear ImGui, a powerful and easy-to-use graphical user interface (GUI) library for C++.

🚀 Features

• Simple and clean ImGui setup for rendering GUIs
• Windows support only(DirectX)
• Easy-to-extend application framework to build on
• Basic examples for quick integration

📦 Prerequisites

To build and run this project, ensure the following tools are installed:

• A C++ compiler (e.g., GCC, Clang, LLVM)
• Git for version control
• Visual Studio 2022
• Visual Studio Code (VSCode) with the necessary extensions for C++ development (C++ extension by Microsoft)
• ImGui library (included as a submodule)

⚠️ Warning: This project uses the Arial font by default.
Please make sure it is available at C:\Windows\Fonts\Arial.ttf.

⚡ Getting Started

Follow the instructions below to set up and run the project locally.

1. Clone the Repository

Start by cloning this repository to your local machine:

git clone --recursive https://github.com/IOleg-crypto/imgui_application.git

The --recursive flag ensures that the submodules (such as ImGui) are correctly initialized.

2. Open the Project in Visual Studio Code

1. Launch Visual Studio Code (VSCode).
2. Open the folder containing the project by selecting File -> Open Folder and choosing the repository directory.
3. Install the necessary VSCode extensions if prompted:
   • C++ extension by Microsoft (for C++ IntelliSense, debugging, etc.)
   • LLVM (Download LLVM)
   • CMake Tools (optional, if you plan to build with CMake)

3. Configure and Build the Project

1. Install dependencies: Make sure you have the necessary build tools and libraries installed. You can do this by following these steps:

   • Windows: Install Visual Studio 2019/2022 or use clang/gcc via VSCode.
   • Linux/macOS: Install the required dependencies with your package manager (e.g., sudo apt-get install build-essential for Ubuntu).

2. Configure the project in VSCode:

   • Open the tasks.json file in .vscode folder (if not created, VSCode will generate it automatically when you try to build the project). The tasks should already be configured for building with clang-cl.exe or other compilers.

   • Ensure the include paths in your tasks.json file are correctly set to the directories where ImGui and your dependencies are located.

3. Build the project:

   • In VSCode, press Ctrl+Shift+B to build the project using the defined build task.

4. Run the Application

Once the project has been successfully built, you can run the application:

• Windows: Run main.exe from the build directory.
• Linux/macOS: Run the output binary from the build folder.

To run the executable from within VSCode, you can use the integrated terminal.

🛠 Troubleshooting

Common Issues:

• Missing files on Visual Studio: If you face issues with missing files in Visual Studio 2019/2022, make sure all the necessary ImGui files are included. Add the ImGui source files under MyAppImGUI/vendor/imgui.

• Build errors: Ensure you have the correct dependencies installed, and that your compiler path is set up properly.

How to include ImGui in Visual Studio Code:

1. Make sure to include the correct ImGui source files under your project settings in VSCode.
2. Add the following directories to the include paths in tasks.json:

{
	"version": "2.0.0",
	"tasks": [
	  {
	    "type": "cppbuild",
	    "label": "C/C++: clang-cl.exe build active file",
	    //Don`t forget change path to LLVM
	    "command": "E:\\LLVM\\bin\\clang-cl.exe",
	    "args": [
		"/std:c++17",
		"/EHsc",
		"-v",  // verbose output
		"/Zi", // debugging info
		"/Fe${fileDirname}\\${fileBasenameNoExtension}.exe",
		"${file}",
		"${workspaceFolder}\\MyAppImGUI\\vendor\\imgui\\backends\\imgui_impl_win32.cpp",
		"${workspaceFolder}\\MyAppImGUI\\vendor\\imgui\\backends\\imgui_impl_dx11.cpp",
		"${workspaceFolder}\\MyAppImGUI\\vendor\\imgui\\imgui_draw.cpp",
		"${workspaceFolder}\\MyAppImGUI\\vendor\\imgui\\imgui_widgets.cpp",
		"${workspaceFolder}\\MyAppImGUI\\vendor\\imgui\\imgui.cpp",
		"${workspaceFolder}\\MyAppImGUI\\vendor\\imgui\\imgui_tables.cpp",
		"/I", "${workspaceFolder}/MyAppImGUI/vendor/imgui",
		"/I", "${workspaceFolder}/MyAppImGUI/vendor/imgui/backends",
		"/I", "${workspaceFolder}/MyAppImGUI/vendor/imgui/misc",
		//Don`t forget change path to Windows SDK
		"/I", "C:/Program Files (x86)/Windows Kits/10/include/10.0.26100.0",
		//Linker add static libs
		"/link",
		"d3d11.lib",
		"dwmapi.lib",
		"gdi32.lib",
		"user32.lib",
		"d3dcompiler.lib",
		"ole32.lib",
		"uuid.lib",
		"oleaut32.lib"
	    ],
	    "options": {
		"cwd": "${fileDirname}"
	    },
	    "problemMatcher": ["$msCompile"],
	    "group": {
		"kind": "build",
		"isDefault": true
	    },
	    "detail": "compiler: clang-cl.exe",
	    "postBuild": {
		"command": "${fileDirname}\\${fileBasenameNoExtension}.exe",
		 "args": [],
	    }

	  }
	]
    }


You can refer to the official ImGui documentation (ImGui GitHub) for more setup details.

📷 Screenshots ( For Visual Studio)

Sample GUI in Action:

Another Example:

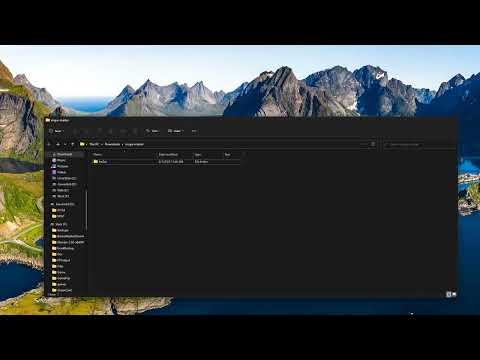

📹 Video Tutorial

For a step-by-step guide on setting up and using this project, check out the tutorial playlist

Feel free to make any additional changes as needed!
