Tiny, production-minded Open Graph (1200×630) image generator built with Next.js App Router + @vercel/og, running on the Edge runtime. Great for dynamic social cards for posts, products, dashboards—anything that needs a branded preview image on the fly.
Live API:
https://og-image-studio-3k7si2rxt-john-rollins-projects.vercel.app/api/og
- ⚡ Edge runtime for low-latency, cold-start-friendly rendering
- 🖼️ Simple REST endpoint:
GET /api/og→ returnsimage/png(1200×630) - 🧪 Cache-busting friendly:
cache-control: no-storewhile developing - 🧩 Easy to extend with query params (title, subtitle, theme, colors, etc.)
- 🛠️ No external services or env vars required
- Next.js 14 (App Router)
- TypeScript
@vercel/ogfor server-side image generation- Vercel for deployment
Open in your browser:
https://og-image-studio-3k7si2rxt-john-rollins-projects.vercel.app/api/og?t=NOW
bash Copy code
Save a PNG with curl:
BASE="https://og-image-studio-3k7si2rxt-john-rollins-projects.vercel.app"
curl -o hello.png "$BASE/api/og?t=$(date +%s)"
file hello.png # => PNG image data, 1200 x 630
Example with parameters (after you switch to the “richer” route below):
bash
Copy code
curl -o card.png \
"$BASE/api/og?title=Hello&subtitle=Edge&badge=DEMO&theme=dark&t=$(date +%s)"
API
Endpoint
bash
Copy code
GET /api/og
Response: image/png (1200×630)
Query Parameters (suggested)
Param Type Default Notes
title string Hello Large headline text
subtitle string (none) Smaller supporting text
badge string (none) Small label shown at top-left
theme enum light light or dark
bg color #ffffff/#0b0f17 Background hex; if omitted, uses theme

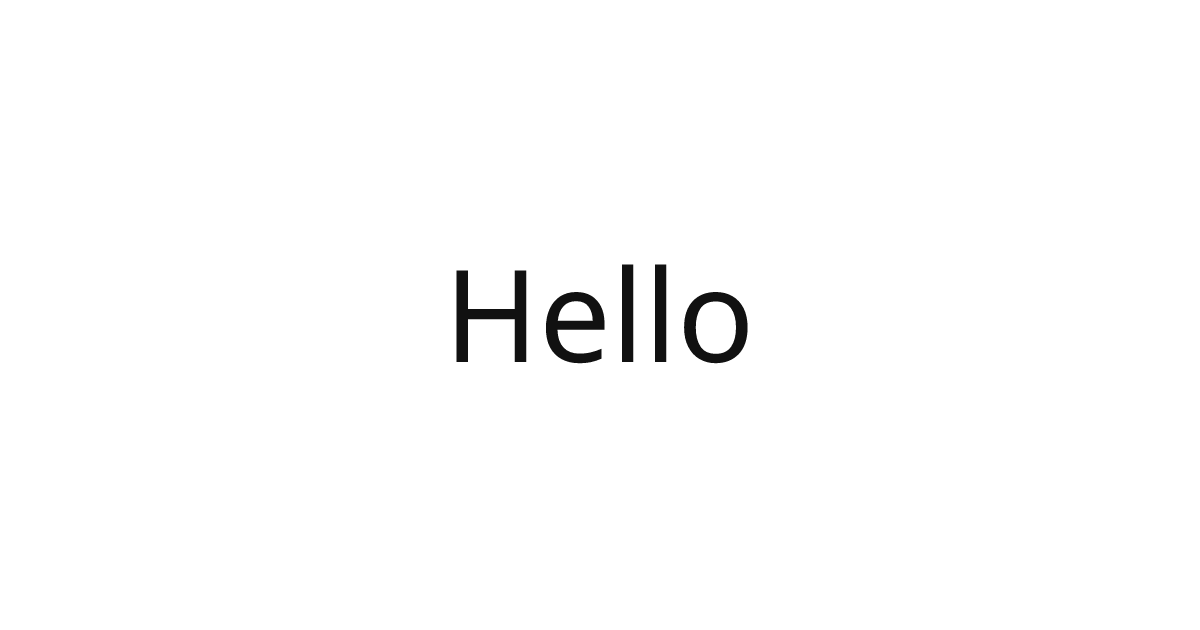

The default project currently returns a simple “Hello” PNG. Swap to the richer example below to support all params.
How It Works
The route is an Edge Function that returns an ImageResponse built from JSX.
Current minimal route: src/app/api/og/route.tsx
tsx
Copy code
import { ImageResponse } from '@vercel/og';
export const runtime = 'edge';
export const dynamic = 'force-dynamic';
export async function GET() {
const img = new ImageResponse(
(
<div
style={{
width: '100%',
height: '100%',
display: 'flex',
alignItems: 'center',
justifyContent: 'center',
background: '#ffffff',
color: '#111111',
fontSize: 128,
fontWeight: 700,
fontFamily: 'Arial, Helvetica, sans-serif',
}}
>
Hello
</div>
),
{ width: 1200, height: 630 }
);
return new Response(img.body, {
headers: {
'content-type': 'image/png',
'cache-control': 'no-store',
},
});
}
Richer version (supports query params):
tsx
Copy code
import { ImageResponse } from '@vercel/og';
export const runtime = 'edge';
function parseParams(url: string) {
const { searchParams } = new URL(url);
const theme = (searchParams.get('theme') || 'light').toLowerCase();
const bg = searchParams.get('bg') || (theme === 'dark' ? '#0b0f17' : '#ffffff');
const fg = theme === 'dark' ? '#e5e7eb' : '#111827';
return {
title: searchParams.get('title') || 'OG Image Studio',
subtitle: searchParams.get('subtitle') || '',
badge: searchParams.get('badge') || '',
bg,
fg,
};
}
export async function GET(req: Request) {
const { title, subtitle, badge, bg, fg } = parseParams(req.url);
const img = new ImageResponse(
(
<div
style={{
height: '100%',
width: '100%',
display: 'flex',
flexDirection: 'column',
justifyContent: 'space-between',
background: bg,
padding: 64,
}}
>
<div style={{ display: 'flex', gap: 16, alignItems: 'center' }}>
{badge && (
<div
style={{
fontSize: 56,
borderRadius: 12,
padding: '8px 14px',
background: 'rgba(255,255,255,0.08)',
color: fg,
}}
>
{badge}
</div>
)}
</div>
<div style={{ display: 'flex', flexDirection: 'column', gap: 16 }}>
<div style={{ color: fg, fontSize: 96, fontWeight: 800 }}>{title}</div>
{subtitle && (
<div style={{ color: fg, fontSize: 36, opacity: 0.85 }}>{subtitle}</div>
)}
</div>
<div style={{ display: 'flex', justifyContent: 'space-between', color: fg, opacity: 0.7 }}>
<div style={{ fontSize: 28 }}>1200×630</div>
<div style={{ fontSize: 28 }}>og-image-studio</div>
</div>
</div>
),
{ width: 1200, height: 630 }
);
return new Response(img.body, {
headers: {
'content-type': 'image/png',
'cache-control': 'no-store',
},
});
}
Use It in Pages (Open Graph)
Point og:image (and twitter:image) at your API:
html
Copy code
<meta property="og:image" content="https://og-image-studio-3k7si2rxt-john-rollins-projects.vercel.app/api/og?title=My%20Post&subtitle=TIL" />
<meta name="twitter:card" content="summary_large_image" />
<meta name="twitter:image" content="https://og-image-studio-3k7si2rxt-john-rollins-projects.vercel.app/api/og?title=My%20Post&subtitle=TIL" />
With Next.js App Router, you can also return this URL from generateMetadata.
Local Development
bash
Copy code
npm install
npm run dev
# http://localhost:3000/api/og
# Test with cache-busting query
curl -o hello.png "http://localhost:3000/api/og?t=$(date +%s)"
Deploy
This repo is linked to Vercel. Every push to main triggers a production build.
bash
Copy code
git add -A
git commit -m "feat: update card style"
git push
(Optional) Set a stable alias once so your README never needs updating:
bash
Copy code
vercel alias set og-image-studio-3k7si2rxt-john-rollins-projects.vercel.app og-image-studio.vercel.app
Project Structure
pgsql
Copy code
.
├── src/app/api/og/route.tsx # Edge function that returns the PNG
├── package.json
├── tsconfig.json
├── next.config.mjs
└── README.md
Troubleshooting
Saved file is 0 bytes
Append ?t=<timestamp> to bypass CDN/browser caches and ensure the route returns
content-type: image/png and cache-control: no-store.
401 Vercel “Authentication Required” page
Your project likely has Deployment Protection enabled. Disable it (Project → Settings → Security) or use a bypass token for automation.
TypeScript/JSX errors
Make sure the file is .tsx (since it contains JSX) and @vercel/og is installed.
Roadmap Ideas
Custom fonts (Google Fonts or bundled TTF)
Theme presets (brand palettes)
Emojis/avatars, gradients, patterns
Presigned/HMAC’d URLs to prevent abuse
Basic rate limiting & logging
License
MIT © 2025 John Rollins
