ROS2 Launch File Generator GUI

A GUI-based tool for automatically generating ROS2 launch files by monitoring running ROS2 commands.

Features

• Real-time Monitoring: Continuously monitors all running and new terminals for ros2 run and ros2 launch commands
• Command Extraction: Automatically extracts PID, command type, package, executable, node name, arguments, and parameters
• Interactive GUI: Organized display of detected commands with selection capabilities
• Live Updates: Commands are constantly refreshed and updated, removing entries for processes that no longer exist
• Launch File Generation: Generate proper ROS2 launch files from selected commands
• Preview and Save: Preview generated launch files before saving to disk

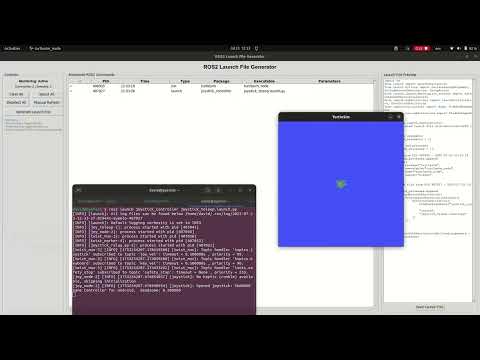

🎥 Video Demo

Watch the Demo on YouTube

See the tool in action! This video demonstrates:

• Real-time monitoring of ROS2 commands
• Interactive GUI for selecting commands
• Launch file generation with proper ROS2 syntax
• Complete workflow from monitoring to launch file creation

Installation

1. Ensure you have Python 3.6+ installed
2. Install required dependencies:

   pip install -r requirements.txt

3. For optimal code formatting (recommended):

   pip install black ruff

4. For development with automated code quality checks:

   pip install pre-commit
   pre-commit install

5. If you encounter tkinter issues on Linux:

   sudo apt-get install python3-tk

Usage

Starting the GUI Tool

python3 ros2_launch_generator_gui.py

Testing the Command Monitoring

To test the command monitoring functionality. This should output ROS2 commands which you executed on a seperate terminal:

python3 test/command_monitor.py

This will launch the GUI with sample commands to test the selection interface.

Testing Launch File Generation

To test the launch file generation with proper ROS2 syntax:

python3 test/test_launch_generation.py

This will generate a sample launch file demonstrating the correct syntax for both Node and IncludeLaunchDescription actions.

Testing Code Formatting

To test the code formatting capabilities with both Black and Ruff:

python3 test/test_black_and_ruff.py

This demonstrates the complete formatting pipeline and shows quality metrics.

Using the Tool

1. Start Monitoring: The tool automatically starts monitoring ROS2 commands when launched
2. Run ROS2 Commands: Execute your ROS2 commands in any terminal:

   ros2 run turtlesim turtlesim_node
   ros2 run turtlesim turtle_teleop_key
   ros2 launch nav2_bringup tb3_simulation.launch.py

3. View Detected Commands: Commands appear automatically in the GUI table
4. Select/Deselect Commands:
   • Double-click any row to toggle selection
   • Click a row and press Enter or Space to toggle
   • Use Select All or Deselect All buttons
   • Selected commands show ✓, unselected show ○
5. Generate Launch File: Click "Generate Launch File" to create a launch file from selected commands
6. Preview and Save: Review the generated launch file in the preview pane and save to disk

GUI Controls

• Clear All: Remove all monitored commands
• Select All: Select all commands for launch file generation
• Deselect All: Deselect all commands
• Manual Refresh: Manually refresh the command list (auto-refreshes every 2 seconds)
• Generate Launch File: Create launch file from selected commands
• Save Launch File: Save the previewed launch file to disk

Selection Methods

1. Double-click: Double-click any row in the table to toggle its selection
2. Keyboard: Click a row to select it, then press Enter or Space to toggle selection
3. Batch operations: Use Select All/Deselect All buttons for bulk operations
4. Visual feedback: Selected commands show ✓, unselected show ○ in the first column
5. Status display: Bottom of control panel shows total and selected command counts

Command Information Displayed

• PID: Process ID of the ROS2 command
• Time: When the command was detected
• Type: Command type (run or launch)
• Package: ROS2 package name
• Executable: Executable or launch file name
• Parameters: Arguments and parameters passed to the command

Generated Launch File Format

The tool generates standard ROS2 launch files with proper syntax:

For ros2 run commands:

• Node declarations with proper package, executable, and name
• Parameter dictionaries with correct data types (bool, int, string)
• Remappings extracted from command line arguments
• Arguments passed to the executable
• Output redirection to screen

For ros2 launch commands:

• IncludeLaunchDescription actions (not ExecuteProcess)
• PythonLaunchDescriptionSource for .py launch files
• PathJoinSubstitution with FindPackageShare for proper path resolution
• launch_arguments dictionary for passing parameters
• Standard ROS2 launch composition following best practices

Key Features:

• ✅ Proper ROS2 syntax - Uses IncludeLaunchDescription instead of ExecuteProcess
• ✅ Parameter type detection - Automatically detects bool, int, and string types
• ✅ Remapping support - Extracts and applies topic/service remappings
• ✅ Package path resolution - Uses FindPackageShare for robust package finding
• ✅ Launch arguments - Properly passes parameters to included launch files
• ✅ Comments with metadata - Includes source PID and timestamp for traceability
• ✅ Professional code formatting - Automatically formats generated code using Black/Ruff standards
• ✅ Clean, readable output - Generated files are ready for professional robotics codebases

Example Generated Launch File

import os
from launch import LaunchDescription
from launch.actions import DeclareLaunchArgument, IncludeLaunchDescription, GroupAction
from launch.launch_description_sources import PythonLaunchDescriptionSource
from launch.substitutions import LaunchConfiguration, PathJoinSubstitution
from launch_ros.actions import Node, PushRosNamespace
from launch_ros.substitutions import FindPackageShare

def generate_launch_description():
    """Generated launch file from monitored ROS2 commands"""

    # Launch arguments
    declared_arguments = []

    # Nodes and processes
    nodes_and_processes = []

    # Node from PID 12345 - 2025-07-23 14:30:15
    nodes_and_processes.append(
        Node(
            package="turtlesim",
            executable="turtlesim_node",
            name="turtlesim_node",
            parameters=[{
                "use_sim_time": true,
                "background_r": 255
            }],
            output="screen"
        )
    )

    # Launch file from PID 12347 - 2025-07-23 14:30:25
    nodes_and_processes.append(
        IncludeLaunchDescription(
            PythonLaunchDescriptionSource([
                PathJoinSubstitution([
                    FindPackageShare("nav2_bringup"),
                    "launch",
                    "tb3_simulation.launch.py"
                ])
            ]),
            launch_arguments={
                "world": "turtlebot3_world",
                "x_pose": "0.0",
                "y_pose": "0.0"
            },
        )
    )

    return LaunchDescription(declared_arguments + nodes_and_processes)

Technical Details

Command Detection

The tool uses psutil to monitor system processes and detects ROS2 commands by:

1. Scanning process command lines for ros2 executable
2. Identifying run or launch subcommands
3. Parsing package names, executables, and arguments

Parameter Parsing

Supports various ROS2 parameter formats:

• -p parameter_name:=value
• --param parameter_name:=value
• parameter_name:=value
• -r old_name:=new_name (remappings)
• --remap old_name:=new_name

Process Management

• Continuously monitors for new processes
• Automatically removes entries for terminated processes
• Maintains process state across GUI updates

Code Quality and Formatting

The tool automatically formats generated launch files to professional standards:

• Black + Ruff formatting - Uses both Black and Ruff when available for comprehensive code quality
• Black formatting - Primary code formatter for PEP 8 compliance and consistent style
• Ruff linting - Additional linting and formatting fixes for code quality
• Consistent indentation - 4-space indentation throughout
• Line length management - Attempts to respect 88-character line length
• Clean parameter formatting - Properly formatted parameter dictionaries
• Import organization - Organized and consistent imports with unused import removal
• Trailing commas - Proper trailing comma usage for better diffs
• Fallback formatting - Enhanced basic formatting applied when tools aren't installed

Generated files are ready for professional robotics codebases and will pass most linting checks.

File Structure

ros2_launch_file_generator/
├── ros2_launch_generator_gui.py    # Main GUI application
├── launch_gui.sh                   # Launcher script with dependency checks
├── requirements.txt                # Python dependencies
├── README.md                      # This documentation file
├── LICENSE                        # License file
├── .pre-commit-config.yaml        # Automated code quality checks configuration
├── PRE_COMMIT_GUIDE.md            # Guide for using pre-commit hooks
├── test/                          # Test files and utilities
│   ├── command_monitor.py         # Original command monitoring script
│   ├── test_monitor.py            # Test monitoring functionality
│   ├── test_selection.py          # Test GUI selection with mock data
│   ├── test_launch_generation.py  # Test launch file generation
│   ├── test_formatting.py         # Test basic code formatting
│   ├── test_black_and_ruff.py     # Test comprehensive Black + Ruff formatting
│   ├── demo.py                    # Demo and setup verification script
│   └── test_generated_launch.py   # Example generated launch file

Troubleshooting

Common Issues

1. tkinter not found: Install with sudo apt-get install python3-tk
2. Permission errors: Ensure the user has permission to read process information
3. No commands detected: Verify ROS2 commands are running and contain the expected format

Debug Mode

You can monitor the console output for debugging information when commands are detected or removed.

📝 TODO

• Node name detection improvement - Better extraction of custom node names from command line arguments
• XML launch file support - Add support for detecting and including .xml launch files
• Launch argument validation - Validate that detected parameters match the target launch file's declared arguments
• Namespace detection - Better handling of ROS2 namespaces in monitored commands
• Conditional launch logic - Generate launch files with conditional node starting
• Parameter file generation - Generate separate YAML parameter files
• Launch file validation - Validate generated launch files against ROS2 launch syntax
• Real-time parameter editing - Allow editing parameters before generating launch files

Contributing

Feel free to submit issues, feature requests, or pull requests to improve the tool.

License

This project is open source. Please check the license file for details.
