PathFinder Plugin Documentation ✨

Version: For Minecraft 1.21 and above 🚀
Function: Player-to-player (more targets planned for future) 📌
asynchronous A* pathfinding + real-time particle navigation 🧭

---

Plugin Introduction

PathFinder uses 2000+ lines of A* code to help players find the optimal route over theoretical unlimited distances, and guides with particle lines visible only to themselves in real-time.

• Fully asynchronous computation, not lagging the main thread ⚡
• Supports 8 languages with auto-switching (Simplified/Traditional Chinese, English, German, Russian, Spanish, Portuguese, French) 🌏
• Default configuration needs mid-to-high spec servers; low-spec machines can also adapt by downgrading according to examples 🛠️

---

Plugin Demonstration

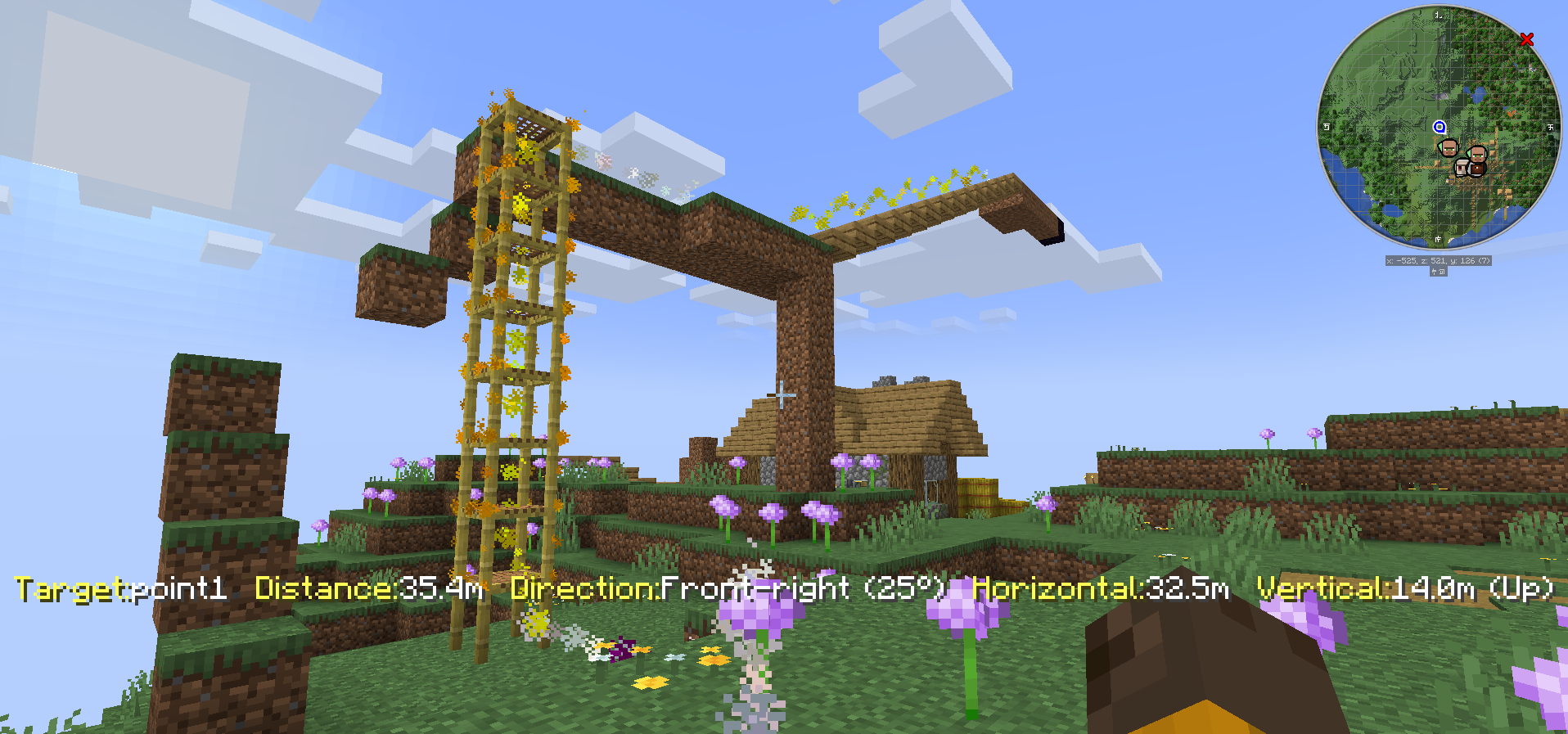

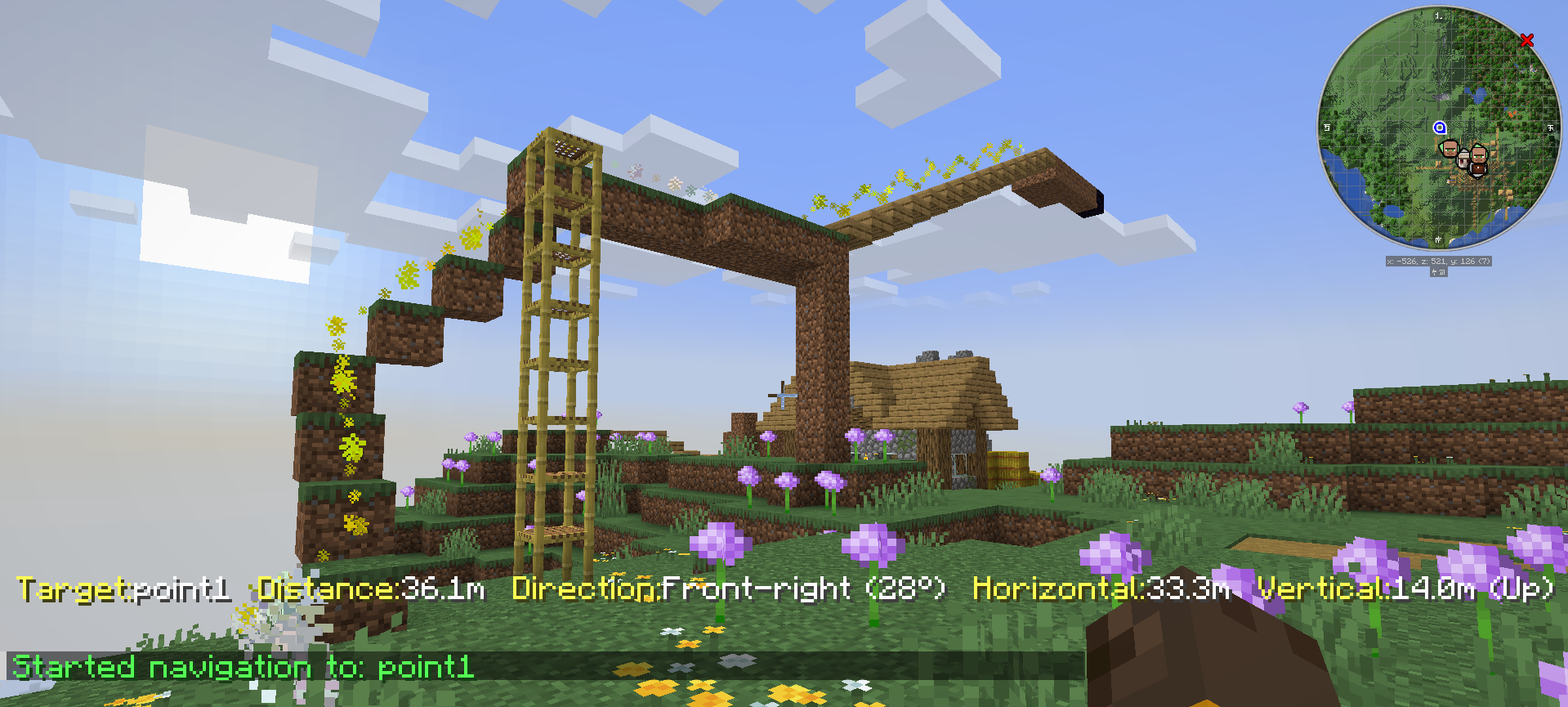

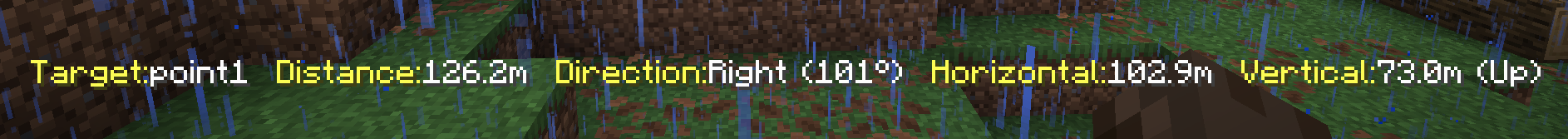

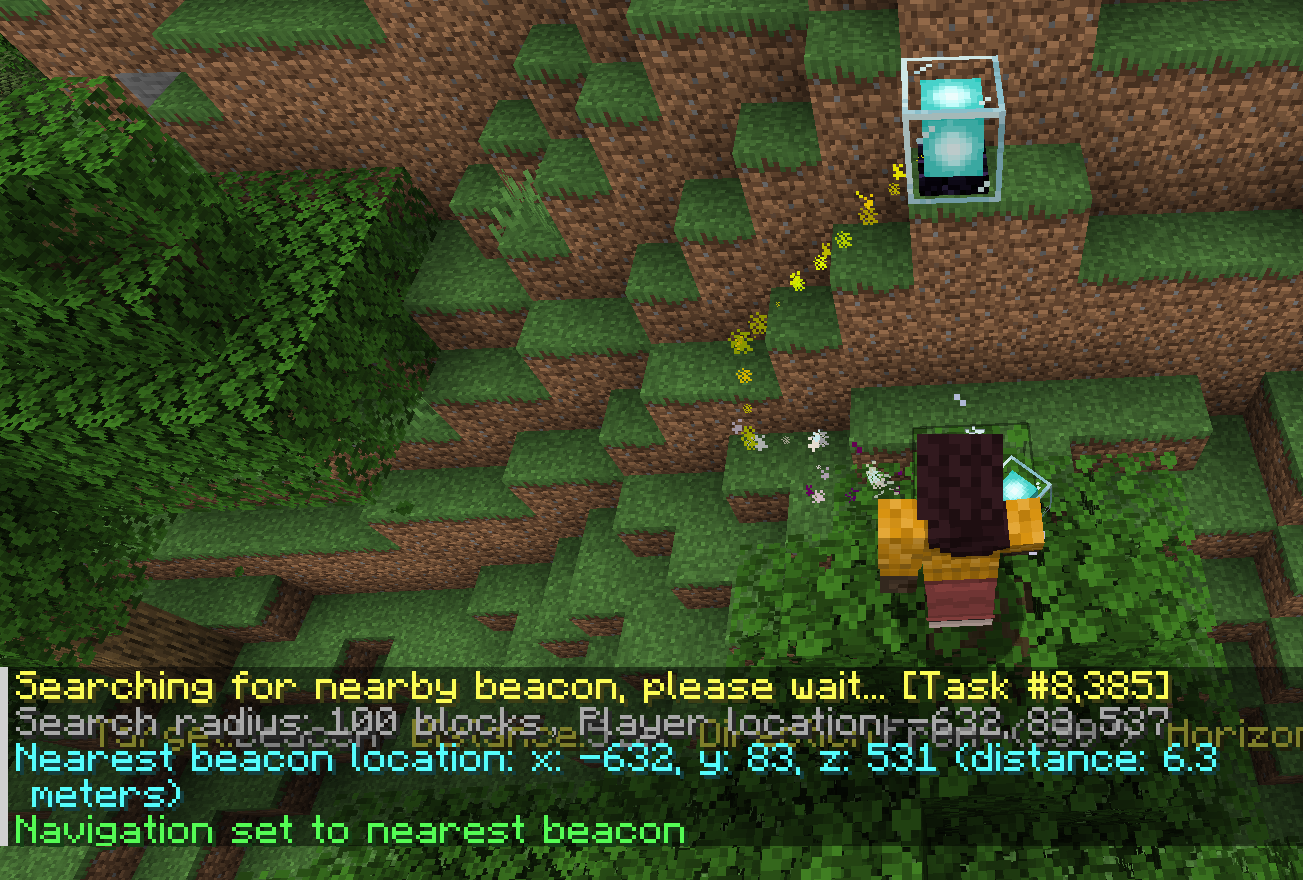

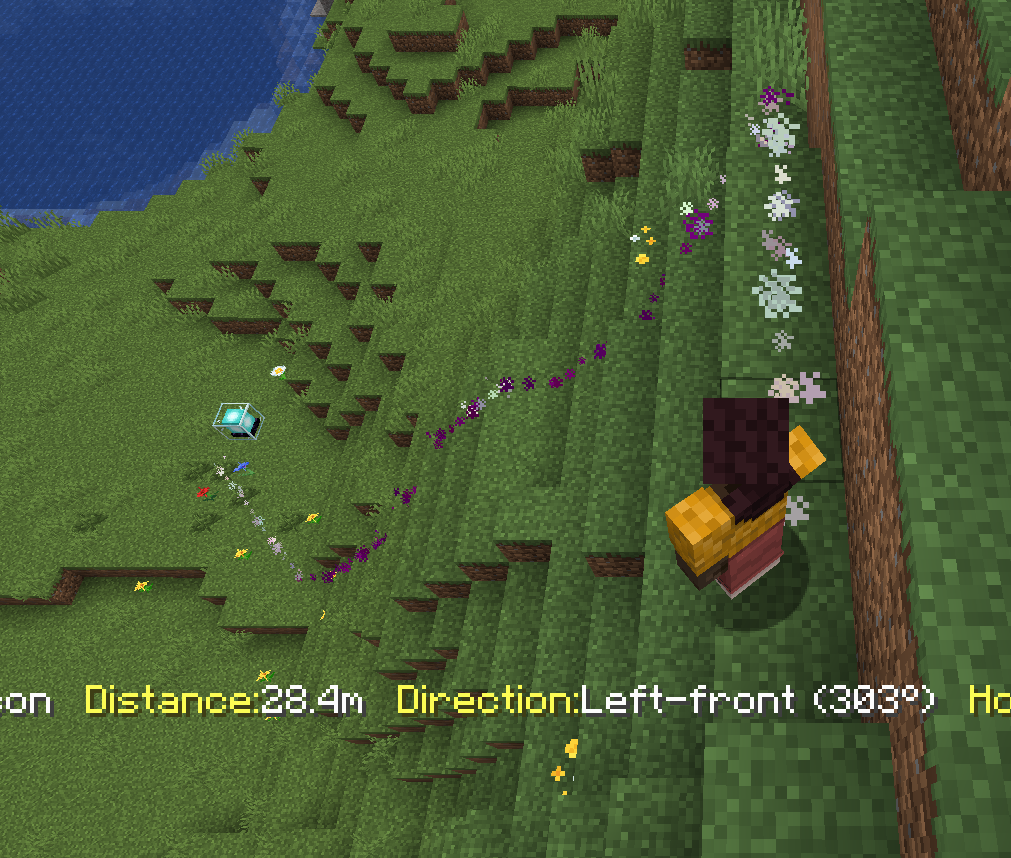

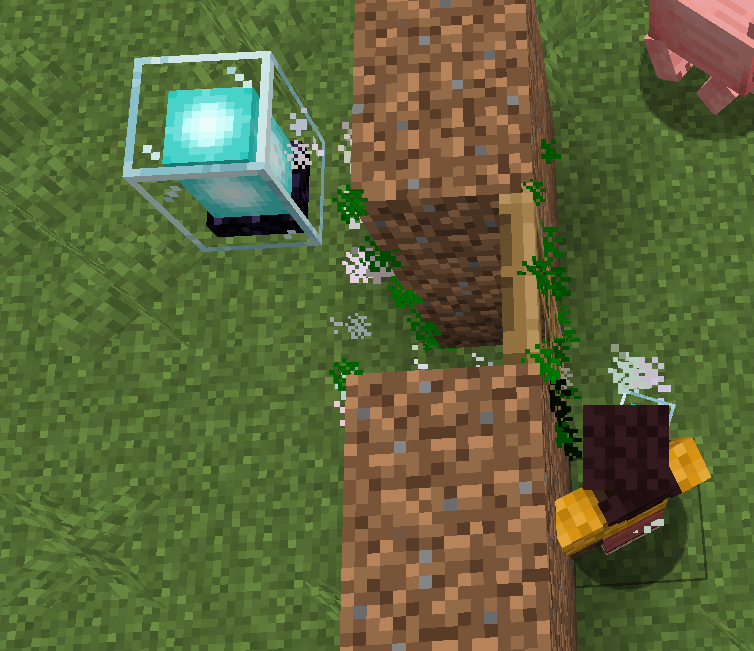

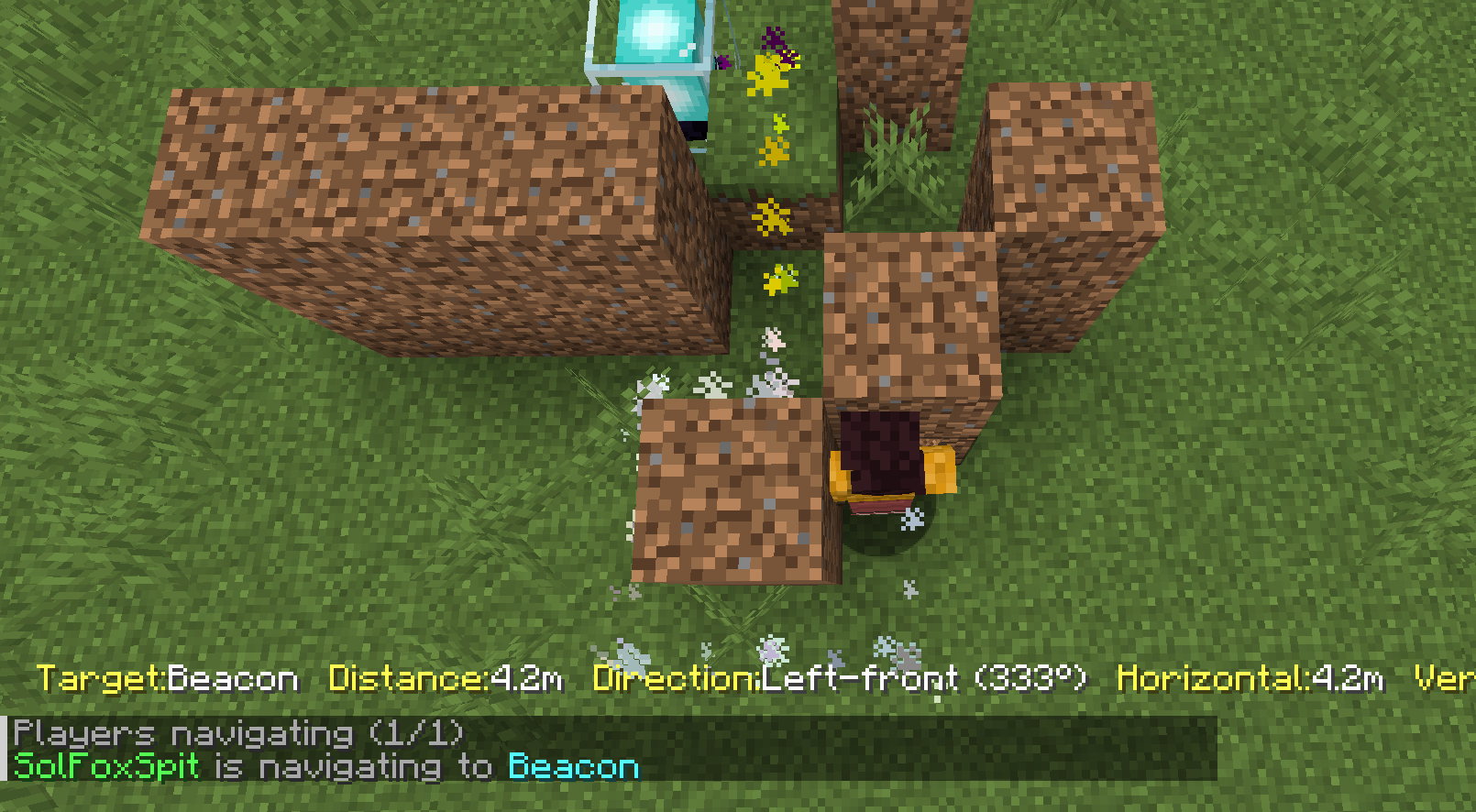

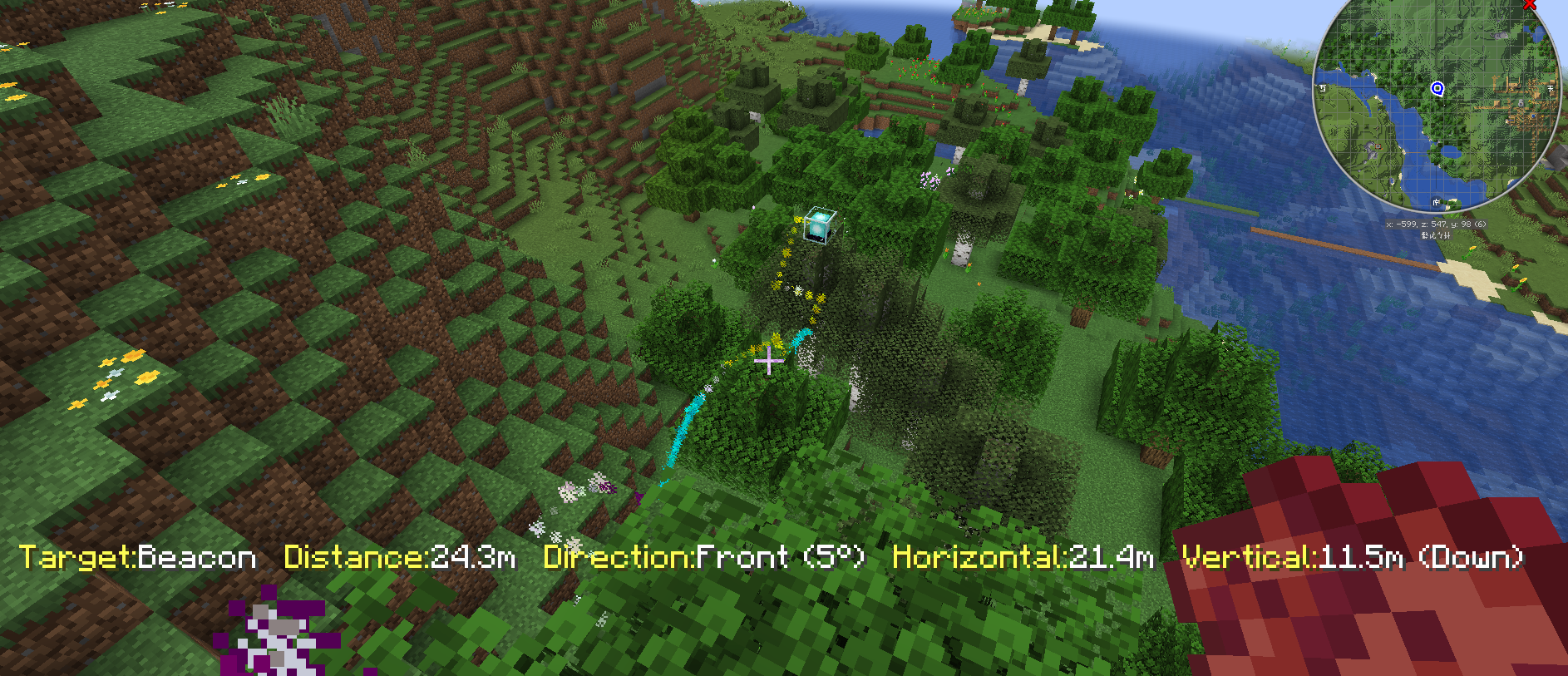

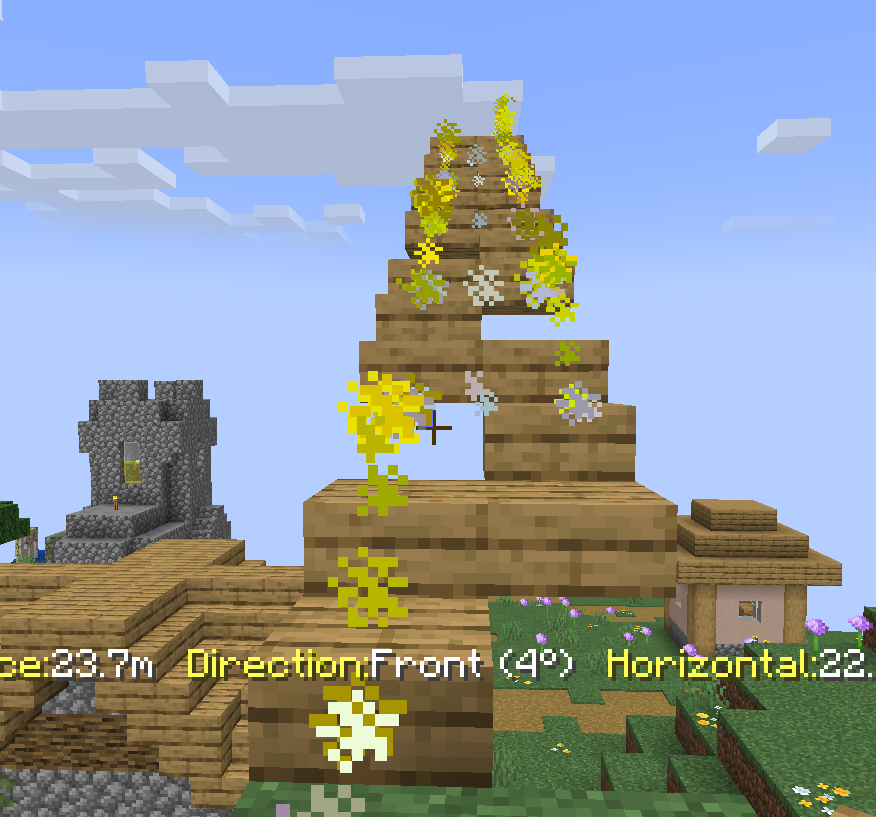

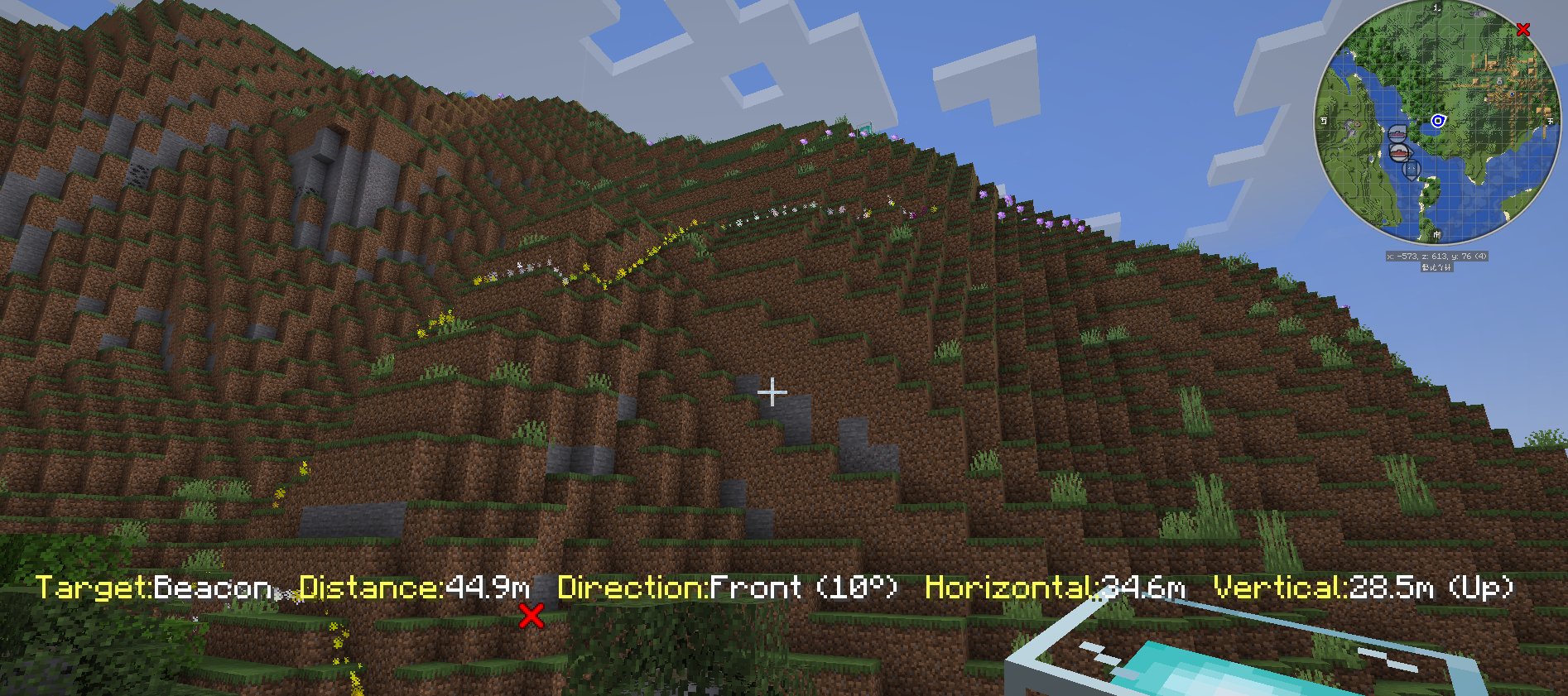

Navigation effect 🎥

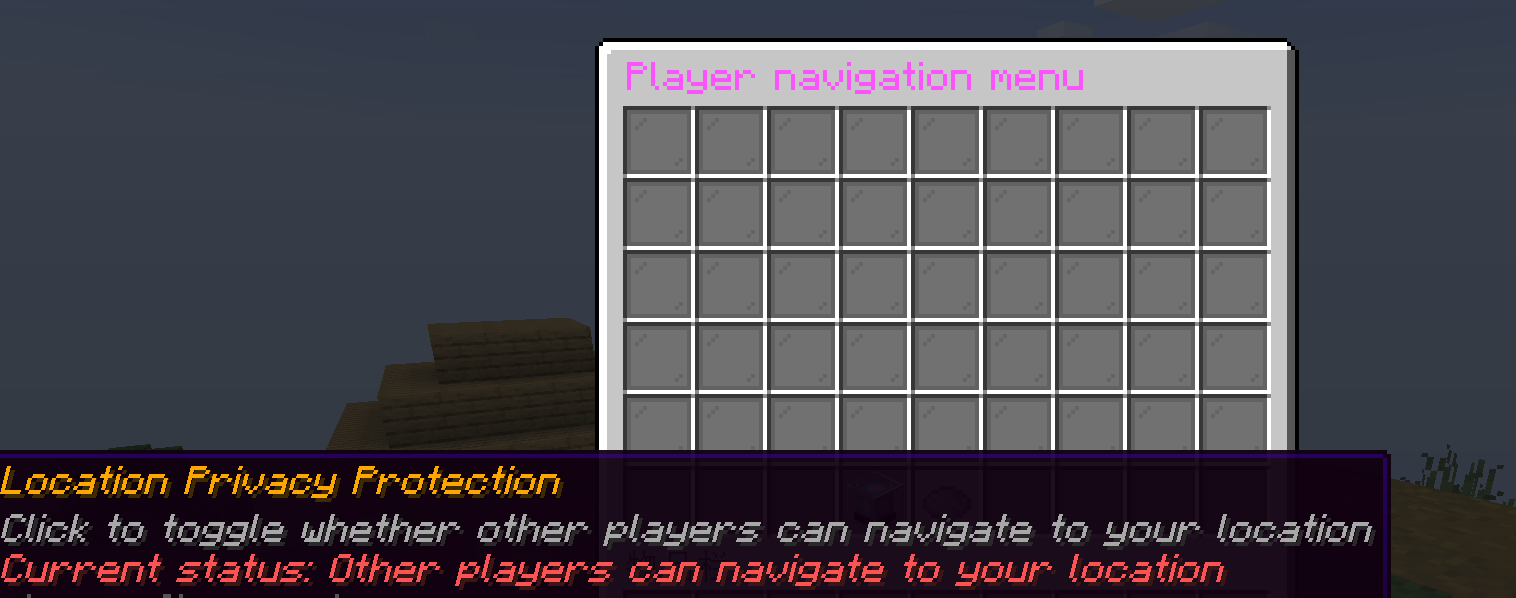

/toc cd Open player's navigation page 📋

/toc admin Open admin menu (gui) ⚙️

---

Commands and Permissions Quick Reference

Command	Permission Node	Brief Description
/toc admin	toc.admin	Open admin menu (gui) 🖥️
/toc reconfig	toc.admin	Restore configs to default 🔧
/toc relang	toc.admin	Reload language files 🔄
/toc reload	toc.admin	Reload plugin 🔄
/toc status	toc.admin	View plugin's info 📊
/toc cd	toc.cd	Open navigation menu 🧭
/toc nav view [--page=]	toc.view	List all players currently navigating 👥
/toc lang <language|reset>	toc.lang	Switch UI language Supports zh-CN zh-TW en-US de-DE es-ES fr-FR pt-PT ru-RU Set to reset to revert to default 🌐

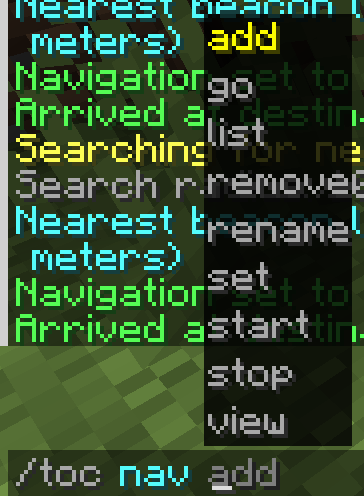

/toc nav add <waypoint name>	toc.nav.add	Create a new waypoint at your position 📍
/toc nav go <waypoint name>	toc.nav.go	Navigate yourself to the waypoint 🚶
/toc nav list [--page=] [--world=]	toc.nav.list	View existing waypoints 📋
/toc nav remove <waypoint name>	toc.nav.remove	Delete a waypoint 🗑️
/toc nav rename <old name> <new name>	toc.nav.rename	Rename a waypoint ✏️
/toc nav set <x/y/z/world> <value>	toc.nav.set	Fine-tune waypoint coordinates or world 🎯
/toc nav start <player> <waypoint name>	toc.nav.start	Admin force a player to start navigation 👮
/toc nav stop	toc.nav.stop	Stop your own navigation 🛑
/toc nav stop [player]	toc.nav.stop.other	Admin Stop another player's navigation 🛑

---

Configuration File Details

config.yml

Plugin main configuration 📝

# Plugin UI language, zh-CN Simplified Chinese; en-US English; see lang folder for others
language: zh-CN

pathfinder.yml

Pathfinding related configuration 📝

• Setting costs as negative will encourage the algorithm to choose certain behaviors, but if you really want to encourage certain behaviors
• a better approach is to lower the positive costs of these behaviors rather than using negative costs ⚠️

# ========= Search Range & Precision =========
max_search_radius: 3000      # Maximum search distance (blocks) — Low-spec servers change to 100~500
max_iterations: 4000         # Maximum calculation steps — Low-spec servers change to 1000~2000

# ========= Particle Visual Effects =========
particle_spacing: 0.5        # Distance between particles (blocks), smaller = denser
max_particle_distance: 30    # Particle visibility distance, further = more bandwidth usage
particle_size: 1.0           # Particle size
path_refresh_ticks: 15       # Path refresh cycle (ticks), 20 ticks = 1 second

# ========= Movement "Costs": Higher numbers = less likely to choose =========
straight_cost: 1.0           # Walking straight one block
diagonal_cost: 1.5           # Walking diagonally one block
right_angle_turn_cost: 0.5   # Right angle turn
diagonal_turn_cost: 1.0      # Diagonal turn
break_block_cost: 100.0      # Breaking blocks (99999 almost prohibits it, 0 allows freely)
door_cost: 0.0               # Going through doors (0 means prioritize using doors)
trapdoor_cost: 6.0           # Going through trapdoors
jump_cost: 0.0               # Jumping on flat ground
vertical_cost: 1.0           # Climbing ladders/scaffolds up and down
scaffolding_cost: 0.0        # Walking on scaffolding
fall_cost: 2.0               # Direct free fall
block_jump_cost: 1.0         # Jumping across blocks
max_block_jump_distance: 4   # Maximum distance for jumping across blocks
max_safe_fall_height: 4      # Maximum "safe" fall height

# ========= Performance Options =========
enable_path_caching: false    # true = reuse old paths to lower CPU usage, but might react slightly slower

Low-Spec Server Optimization Example

• max_search_radius: 200
• max_iterations: 1000
• path_refresh_ticks: 30

Changes take effect automatically after you save the config, no reload needed.

Notes

This plugin is not recommended for high-precision parkour 🏃‍♂️
Currently, climbing paths only support ladders and scaffolding 🪜
Underwater pathfinding might behave abnormally 🌊

Official Support

Discord Community: https://discord.gg/daSchNY7Sr 💬
Language files: plugins/PathFinder/lang/ can be translated or added by yourself 🌍
Please let the name of lang file follow RFC 1766 standard (such as zh-CN) 🌍

Enjoy using it! 🎉
