UniGame Meta Backend Service

Universal contract-based backend communication system for Unity supporting REST APIs, WebGL JavaScript Bridge, Nakama, Mock providers, and runtime texture loading.

Key Features

• 🔌 Multi-Provider Architecture - REST API, Nakama, JavaScript Bridge, Mock, Web Texture
• 📝 Type-Safe Contracts - Strongly typed request/response handling
• 🔄 Auto Code Generation - Generate C# contracts from Swagger/OpenAPI specs
• 🔀 Runtime Provider Switching - Switch backends dynamically (production/staging/mock)

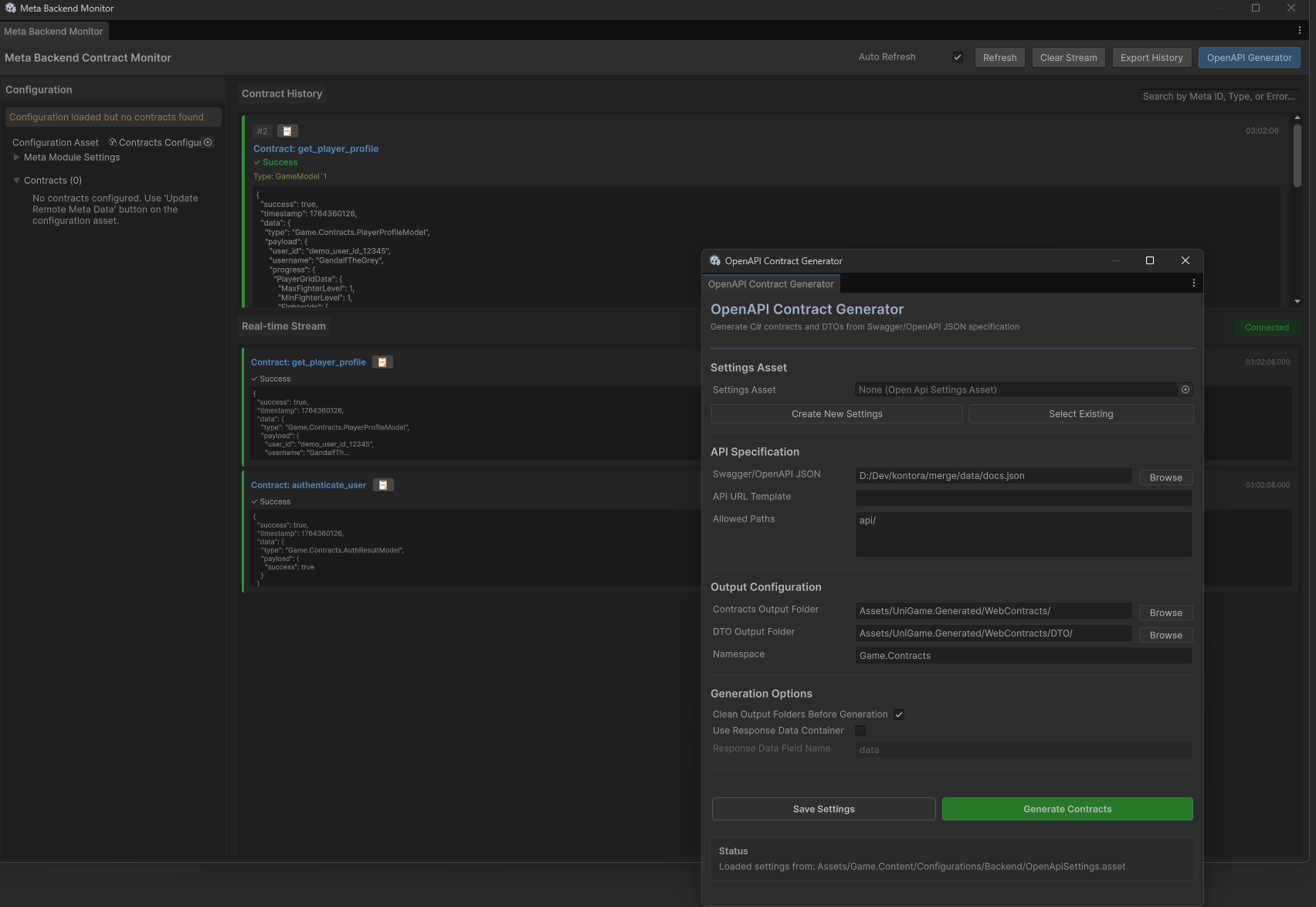

• 🛠️ Editor Tools - Real-time contract monitoring and OpenAPI generator UI
• 🎯 UniTask Integration - Modern async/await patterns with cancellation support

Installation

Add to manifest.json:

{
  "dependencies": {
    "com.unity.addressables": "2.6.0",
    "com.unigame.metaservice": "https://github.com/UnioGame/unity.meta.backend.git",
    "com.unigame.addressablestools": "https://github.com/UnioGame/unigame.addressables.git",
    "com.unigame.contextdata": "https://github.com/UnioGame/unigame.context.git",
    "com.unigame.unicore": "https://github.com/UnioGame/unigame.core.git",
    "com.unigame.localization": "https://github.com/UnioGame/unigame.localization.git",
    "com.unigame.rx": "https://github.com/UnioGame/unigame.rx.git",
    "com.cysharp.unitask": "https://github.com/Cysharp/UniTask.git?path=src/UniTask/Assets/Plugins/UniTask",
    "com.cysharp.r3": "https://github.com/Cysharp/R3.git?path=src/R3.Unity/Assets/R3.Unity"
  }
}

Architecture

graph TB
    A[Your Game Code] --> B[IBackendMetaService]
    B --> C[Contract Registry]
    B --> D[Provider Manager]

    D --> E[Web Provider]
    D --> F[Nakama Provider]
    D --> G[Mock Provider]
    D --> H[JS Bridge Provider]
    D --> I[Web Texture Provider]

    E --> J[REST API]
    F --> K[Nakama Server]
    G --> L[Local Mock Data]
    H --> M[Browser JavaScript]
    I --> N[CDN/Web Images]

    C --> O[Contract Metadata]
    O --> P[ContractsConfigurationAsset]

    style B fill:#4a9eff
    style E fill:#66bb6a
    style F fill:#66bb6a
    style G fill:#66bb6a
    style H fill:#66bb6a
    style I fill:#66bb6a

Loading

Quick Start

1. Create Configuration

Menu: Assets/UniGame/Meta Service/Create Configuration

This creates a ContractsConfigurationAsset that manages all backend contracts and providers.

2. Define a Contract

using Game.Modules.WebProvider.Contracts;
using UniGame.MetaBackend.Runtime.WebService;

[Serializable]
public class GetUserProfileContract : RestContract<UserProfileRequest, UserProfileResponse>
{
    public override string Path => "api/user/profile";
    public override WebRequestType RequestType => WebRequestType.Get;
}

[Serializable]
public class UserProfileRequest
{
    public string userId;
}

[Serializable]
public class UserProfileResponse
{
    public string name;
    public string email;
    public int level;
}

3. Execute Contract

using Extensions;

public async UniTask LoadUserProfile()
{
    var contract = new GetUserProfileContract
    {
        input = new UserProfileRequest { userId = "12345" }
    };

    var result = await contract.ExecuteAsync<UserProfileResponse>();

    if (result.success)
    {
        Debug.Log($"Welcome, {result.data.name}!");
    }
    else
    {
        Debug.LogError($"Failed: {result.error}");
    }
}

Core Concepts

Contracts

Contracts define the communication interface between your game and backend services.

Base Interface

public interface IRemoteMetaContract
{
    object Payload { get; }      // Request data
    string Path { get; }         // Endpoint path
    Type OutputType { get; }     // Response type
    Type InputType { get; }      // Request type
}

Generic Base

public abstract class RemoteMetaContract<TInput, TOutput> : IRemoteMetaContract
{
    public virtual Type InputType => typeof(TInput);
    public virtual Type OutputType => typeof(TOutput);
    public abstract object Payload { get; }
    public abstract string Path { get; }
}

Pre-Built Simple Contracts

// Full request/response
public class SimpleMetaContract<TInput, TOutput> : RemoteMetaContract<TInput, TOutput>
{
    [SerializeField] public TInput inputData;
    [SerializeField] public string path;
}

// Input only (response is string)
public class SimpleInputContract<TInput> : SimpleMetaContract<TInput, string>

// Output only (request is string)
public class SimpleOutputContract<TOutput> : SimpleMetaContract<string, TOutput>

Providers

Providers handle the actual communication with different backend systems.

IBackendMetaService

Main service interface managing all providers:

public interface IBackendMetaService : ILifeTimeContext
{
    // Execute contract
    UniTask<ContractDataResult> ExecuteAsync(IRemoteMetaContract contract, CancellationToken cancellationToken = default);

    // Switch active provider
    void SwitchProvider(int providerId);

    // Get specific provider
    IRemoteMetaProvider GetProvider(int id);

    // Observable stream of all results
    Observable<ContractDataResult> DataStream { get; }

    // Current configuration
    IRemoteMetaDataConfiguration MetaDataConfiguration { get; }
}

Creating Service

// Using BackendMetaSource asset
[CreateAssetMenu(menuName = "UniGame/MetaBackend/Backend Meta Source")]
public class BackendMetaSource : DataSourceAsset<IBackendMetaService>
{
    // Configure in inspector
}

// Or manually
var service = new BackendMetaService(
    useDefaultProvider: true,
    historySize: 100,
    defaultMetaProvider: BackendTypeIds.WebProvider,
    metaProviders: providerDictionary,
    metaDataConfiguration: configuration
);

Provider Switching

Switch between different providers at runtime:

// Switch to production
backendService.SwitchProvider(BackendTypeIds.ProductionProvider);

// Switch to mock for testing
backendService.SwitchProvider(BackendTypeIds.MockProvider);

// Get specific provider
var webProvider = backendService.GetProvider(BackendTypeIds.WebProvider);

Providers

Web Provider (REST API)

HTTP/HTTPS REST API communication.

Contract Definition

[Serializable]
public class LoginContract : RestContract<LoginRequest, LoginResponse>
{
    public override string Path => "auth/login";
    public override WebRequestType RequestType => WebRequestType.Post;
}

Web Request Types

public enum WebRequestType
{
    None,
    Get,
    Post,
    Put,
    Delete,
    Patch
}

Configuration

public class WebMetaProviderSettings
{
    public string defaultUrl = "https://api.example.com";
    public string defaultToken = "";
    public int requestTimeout = 30;
    public bool debugMode = false;
    public List<WebApiEndPoint> contracts = new();
}

Authentication

var webProvider = backendService.GetProvider(BackendTypeIds.WebProvider) as IWebMetaProvider;
webProvider.SetToken("your-bearer-token");

Error Handling

// Contract with typed error
public class UserContract : RestContract<UserRequest, UserResponse, ErrorResponse>
{
    // Implementation
}

// Execute with error handling
var result = await contract.ExecuteAsync<UserResponse, ErrorResponse>();
if (!result.success)
{
    var error = result.errorData; // Typed ErrorResponse
    Debug.LogError($"Error: {error.message}");
}

StreamingAssets Integration

Load Web Provider configuration from StreamingAssets in builds:

// In WebMetaProviderSettings
settings.useStreamingSettings = true;
settings.useStreamingUnderEditor = false; // Only in builds

// Save to StreamingAssets
webProviderAsset.SaveSettingsToStreamingAsset();

// Settings loaded from: StreamingAssets/web_meta_provider_settings.json

Nakama Provider

Integration with Nakama server.

public interface INakamaService : IRemoteMetaProvider, IGameService
{
    UniTask<NakamaConnectionResult> SignInAsync(
        INakamaAuthenticateData authenticateData,
        CancellationToken cancellationToken = default);

    UniTask<bool> SignOutAsync();
}

Mock Provider

For testing without real backend.

Configuration

[Serializable]
public class MockBackendData
{
    public string Method;     // Contract method name
    public bool Success;      // Mock success/failure
    public string Result;     // Mock response (JSON)
    public string Error;      // Mock error message
}

[Serializable]
public class MockBackendDataConfig
{
    public bool allowConnect = true;
    public List<MockBackendData> mockBackendData = new();
}

Example

var mockData = new MockBackendData
{
    Method = "GetUserProfile",
    Success = true,
    Result = JsonConvert.SerializeObject(new UserProfile
    {
        name = "Test User",
        level = 10
    }),
    Error = ""
};

JavaScript Bridge Provider

For WebGL builds to communicate with browser JavaScript.

Unity Side

public class JsApiContract : IRemoteMetaContract
{
    public string apiMethod;
    public object requestData;

    public object Payload => requestData;
    public string Path => apiMethod;
}

Browser Side

window.JsBridge_Agent = {
    SendMessage: function(contractId, message) {
        console.log('From Unity:', contractId, message);

        // Process and respond
        var response = { result: "success" };
        gameInstance.SendMessage('JsBridge_Agent', 'InvokeReceiveMessage',
            JSON.stringify(response));
    }
};

Web Texture Provider

Load textures and sprites from URLs at runtime.

Load Texture2D

var textureContract = new WebTexture2DContract
{
    name = "profile-avatar",
    lifeTime = this.GetAssetLifeTime()
};

var result = await textureContract.ExecuteAsync<Texture2D>();
if (result.success)
{
    myRenderer.material.mainTexture = result.data;
}

Load Sprite

var spriteContract = new WebSpriteContract
{
    name = "ui-icon",
    lifeTime = this.GetAssetLifeTime()
};

var result = await spriteContract.ExecuteAsync<Sprite>();
if (result.success)
{
    myImage.sprite = result.data;
}

Configuration

[Serializable]
public class WebTextureSettings
{
    public string url = "";
    public bool useCache = true;
    public List<WebTexturePath> textures = new();
}

[Serializable]
public class WebTexturePath
{
    public string name;
    public string url;
}

OpenAPI/Swagger Code Generation

Automatically generate C# contracts and DTOs from OpenAPI 3.0 or Swagger 2.0 specifications with full support for composition schemas (allOf/anyOf/oneOf), multiple content types, and servers.

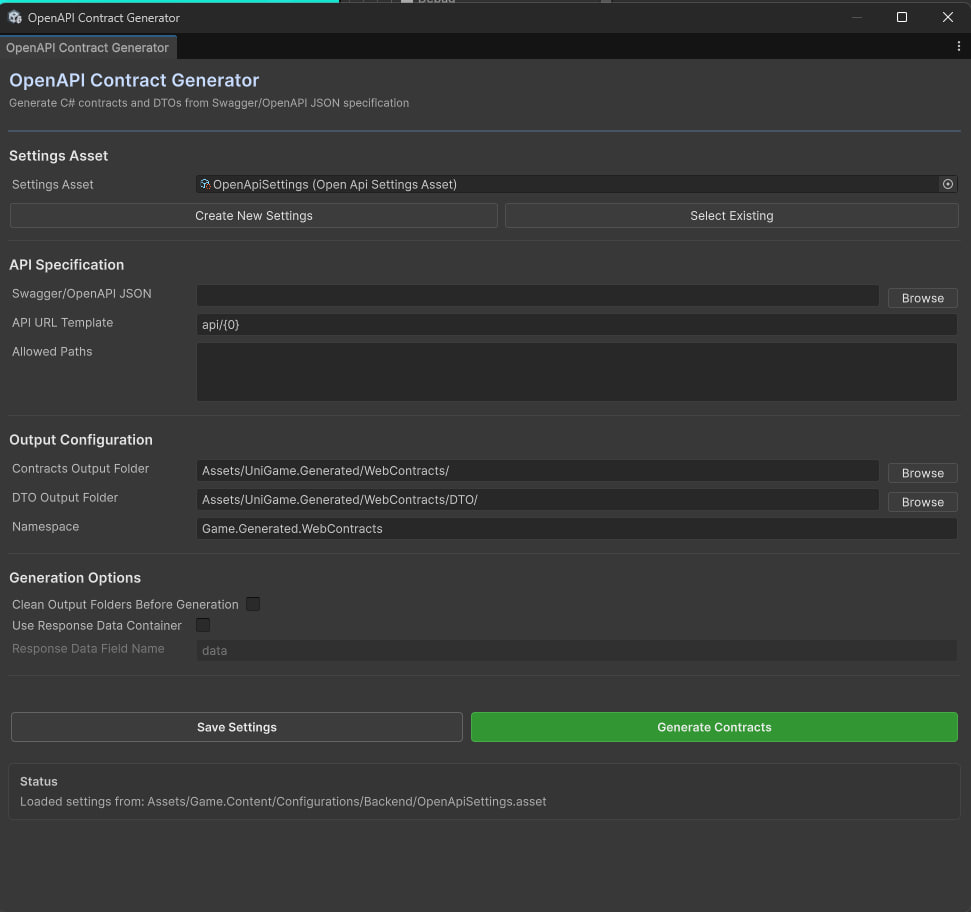

OpenAPI Generator Editor

Menu: UniGame > Meta Backend > OpenApi Generator

The visual editor provides:

• Settings asset management
• API specification configuration (supports both Swagger 2.0 and OpenAPI 3.0)
• Output folder configuration
• Generation options
• One-click generation

Features

✅ Full OpenAPI 3.0 Support

• Servers Array - Automatic base URL extraction from servers configuration
• Multiple Content Types - Handles application/json, application/xml, multipart/form-data
• requestBody - Full support for OpenAPI 3.0 request bodies
• components/schemas - Modern schema references

✅ Schema Composition

• allOf - Schema inheritance and merging
• anyOf - Union types
• oneOf - Discriminated unions with discriminator support
• Polymorphism - Type discrimination for complex hierarchies

✅ Advanced Type Support

• Extended Formats - email, uri, hostname, ipv4, ipv6, uuid, date-time
• Enum Generation - C# enums from OpenAPI enum values
• Deprecated Attributes - [Obsolete] for deprecated properties and operations
• Nullable Types - Proper handling of nullable properties

✅ Backward Compatible

• Swagger 2.0 - Full support for definitions, basePath, consumes/produces
• Automatic Detection - Seamlessly works with both specifications

Settings

[Serializable]
public class OpenApiSettings
{
    public string apiJsonPath;              // Path to OpenAPI JSON
    public string contractsOutFolder;       // Contracts output folder
    public string dtoOutFolder;             // DTOs output folder
    public string contractNamespace;        // Generated code namespace
    public string apiTemplate = "api/{0}";  // URL template
    public string[] apiAllowedPaths;        // Filter endpoints
    public bool cleanUpOnGenerate = false;  // Clean before generate
    public bool useResponseDataContainer;   // Handle wrapped responses
    public string responseDataField = "data";
}

Programmatic Generation

var settings = new OpenApiSettings
{
    apiJsonPath = "path/to/openapi.json",
    contractsOutFolder = "Assets/Generated/Contracts/",
    dtoOutFolder = "Assets/Generated/DTOs/",
    contractNamespace = "Game.Generated.WebContracts",
    apiTemplate = "api/{0}",
    cleanUpOnGenerate = true
};

WebApiGenerator.GenerateContracts(settings);

Generated Output

Contract Example

// Generated from OpenAPI spec
namespace Game.Generated.WebContracts
{
    [Serializable]
    public class GetUserByIdContract : RestContract<GetUserByIdRequest, UserDTO>
    {
        public override string Path => "api/users/{id}";
        public override WebRequestType RequestType => WebRequestType.Get;
    }
}

DTO Example

namespace Game.Generated.WebContracts.DTO
{
    [Serializable]
    public class UserDTO
    {
        [JsonProperty("id")]
        [field: SerializeField]
        public int Id { get; set; }

        [JsonProperty("name")]
        [field: SerializeField]
        public string Name { get; set; }

        [JsonProperty("email")]
        [field: SerializeField]
        public string Email { get; set; }
    }
}

Dynamic URL Parameters

[Serializable]
public class GetStoreItemsContract : RestContract<StoreRequest, StoreResponse>
{
    public string categoryId = "weapons";
    public string itemId = "sword_01";

    public override string Path => "api/store/{categoryId}/items/{itemId}";
    // Resolves to: "api/store/weapons/items/sword_01"
}

Response Data Containers

For APIs that wrap responses:

{
  "data": {
    "userId": 123,
    "name": "Player"
  },
  "success": true
}

Enable in settings:

settings.useResponseDataContainer = true;
settings.responseDataField = "data";

Generated contract:

public class GetUserContract : RestContract<GetUserRequest, ResponseDataDTO<UserDTO>>
{
    // Container automatically unwrapped
}

Advanced Features

Global Error Handling

Subscribe to all backend errors:

backendService.DataStream
    .Where(result => !result.success)
    .Subscribe(result =>
    {
        Debug.LogError($"Backend Error: {result.error}");
        ShowErrorPopup(result.error);
    })
    .AddTo(lifeTime);

Contract Handlers

Add custom processing for contracts:

public interface IMetaContractHandler
{
    UniTask<bool> HandleAsync(MetaContractData data, CancellationToken cancellationToken);
}

// Add handler
backendService.AddContractHandler(myCustomHandler);

// Remove handler
backendService.RemoveContractHandler<MyCustomHandler>();

Editor Tools

Contract Monitor Window

Menu: UniGame > Meta Backend > Meta Editor Window

Real-time monitoring and debugging of contract execution:

• Configuration Panel - View all registered contracts and settings
• Execution History - Full history with search and filtering
• Real-time Stream - Live updates as contracts execute
• Export Functionality - Export history to JSON

Features:

• Auto-refresh every 500ms
• Success/failure indicators
• Search by meta ID, type, or error
• Copy contract results
• Connection status indicator

OpenAPI Generator Window

Menu: UniGame > Meta Backend > OpenApi Generator

Visual interface for generating contracts:

• Settings asset management
• API specification browser
• Output configuration
• Generation options
• One-click contract generation

Integration

Both windows work together seamlessly:

• Generate contracts with OpenAPI Generator
• Monitor execution in Contract Monitor
• Update contract list in ContractsConfigurationAsset

Best Practices

1. Contract Organization

// Group contracts by feature
namespace Game.Contracts.User
{
    public class LoginContract : RestContract<...> { }
    public class GetProfileContract : RestContract<...> { }
}

namespace Game.Contracts.Store
{
    public class GetItemsContract : RestContract<...> { }
    public class PurchaseContract : RestContract<...> { }
}

2. Error Handling

// Always handle errors
var result = await contract.ExecuteAsync<ResponseType>();
if (!result.success)
{
    // Log error
    Debug.LogError($"Contract failed: {result.error}");

    // Show user-friendly message
    ShowErrorMessage("Connection failed. Please try again.");

    return;
}

// Process successful result
ProcessData(result.data);

3. Cancellation Support

private CancellationTokenSource _cts;

public async UniTask LoadData()
{
    _cts = new CancellationTokenSource();

    try
    {
        var result = await contract.ExecuteAsync<DataType>(_cts.Token);
        ProcessResult(result);
    }
    catch (OperationCanceledException)
    {
        Debug.Log("Operation cancelled");
    }
}

public void CancelOperation()
{
    _cts?.Cancel();
}

4. Provider Configuration

// Use different providers per environment
#if DEVELOPMENT
    var providerId = BackendTypeIds.MockProvider;
#elif STAGING
    var providerId = BackendTypeIds.StagingProvider;
#else
    var providerId = BackendTypeIds.ProductionProvider;
#endif

backendService.SwitchProvider(providerId);

5. Testing with Mocks

// Set up mock data for testing
var mockConfig = new MockBackendDataConfig
{
    allowConnect = true,
    mockBackendData = new List<MockBackendData>
    {
        new MockBackendData
        {
            Method = "GetUserProfile",
            Success = true,
            Result = JsonConvert.SerializeObject(testProfile)
        },
        new MockBackendData
        {
            Method = "PurchaseItem",
            Success = false,
            Error = "Insufficient funds"
        }
    }
};

Troubleshooting

Contract Not Executing

1. Verify BackendMetaService is initialized
2. Check that contract is registered in ContractsConfigurationAsset
3. Ensure the correct provider supports the contract type
4. Review logs in Contract Monitor window

Provider Connection Failed

1. Verify URL/endpoint configuration
2. Check authentication token if required
3. Test with Mock provider to isolate network issues
4. Review provider-specific settings

Generated Contracts Have Errors

1. Validate OpenAPI specification (use Swagger Editor)
2. Check namespace configuration
3. Verify output folders are writable
4. Review OpenAPI Generator settings

No Data in Contract Monitor

1. Ensure Play Mode is active
2. Verify BackendMetaService.EditorInstance is assigned
3. Check that contracts are actually executing
4. Enable Auto Refresh in monitor window

Examples

Complete Example: User Authentication

using System;
using Cysharp.Threading.Tasks;
using Extensions;
using Game.Modules.WebProvider.Contracts;
using UniGame.MetaBackend.Runtime.WebService;
using UnityEngine;

namespace Game.Features.Auth
{
    // Contract definition
    [Serializable]
    public class LoginContract : RestContract<LoginRequest, LoginResponse>
    {
        public override string Path => "auth/login";
        public override WebRequestType RequestType => WebRequestType.Post;
    }

    [Serializable]
    public class LoginRequest
    {
        public string username;
        public string password;
    }

    [Serializable]
    public class LoginResponse
    {
        public string token;
        public string userId;
        public string displayName;
    }

    // Service implementation
    public class AuthService : MonoBehaviour
    {
        public async UniTask<bool> LoginAsync(string username, string password)
        {
            var contract = new LoginContract
            {
                input = new LoginRequest
                {
                    username = username,
                    password = password
                }
            };

            var result = await contract.ExecuteAsync<LoginResponse>();

            if (result.success)
            {
                // Store token
                PlayerPrefs.SetString("auth_token", result.data.token);

                // Set token for future requests
                var webProvider = BackendMetaServiceExtensions.RemoteMetaService
                    .GetProvider(BackendTypeIds.WebProvider) as IWebMetaProvider;
                webProvider?.SetToken(result.data.token);

                Debug.Log($"Logged in as {result.data.displayName}");
                return true;
            }
            else
            {
                Debug.LogError($"Login failed: {result.error}");
                return false;
            }
        }
    }
}

License

MIT License

---

Documentation Version: 2025.0.20
Package Version: 2025.0.20
Unity Version: 2023.1+
