This package acts as a thin wrapper around the
matplotlib.animation.FuncAnimation class to simplify animating matplotlib
plots.
pip install animplotlib

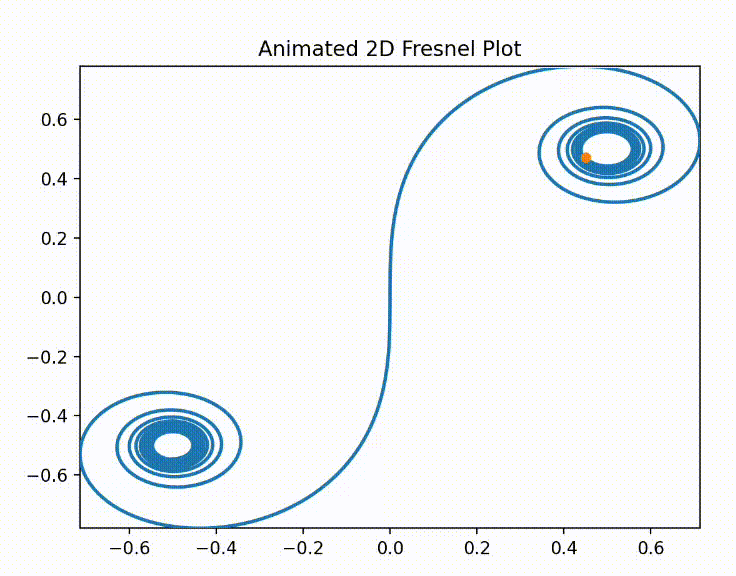

# 2D animated plot of the fresnel integral
import numpy as np
import matplotlib.pyplot as plt
import scipy.special as sc
import animplotlib as anim
x = np.linspace(-7, 7, 5000)
y, z = sc.fresnel(x)
fig, ax = plt.subplots()
line, = ax.plot([], [], lw=2)
point, = ax.plot([], [], 'o')
ax.set_xlim(np.min(y), np.max(y))
ax.set_ylim(np.min(z), np.max(z))
ax.set_title("Animated 2D Fresnel Plot")
anim.AnimPlot(fig, line, point, y, z, plot_speed=2, l_num=len(x))
# 3D animated plot of the fresnel integral
import numpy as np
import matplotlib.pyplot as plt
import scipy.special as sc
import animplotlib as anim
# generate fresnel data
x = np.linspace(-7, 7, 1000)
y, z = sc.fresnel(x)
# create figure and axes - projection='3d' for 3D plot
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')
# line and point to add the data to - three empty lists for 3D data
line, = ax.plot([], [], [], lw=1)
point, = ax.plot([], [], [], 'ro', markersize=5)
ax.set_xlim(np.min(x), np.max(x))
ax.set_ylim(np.min(y), np.max(y))
ax.set_zlim(np.min(z), np.max(z))
ax.set_title("Animated 3D Fresnel Plot")
anim.AnimPlot3D(fig, ax, line, point, x, y, z, plot_speed=5)
