Add abitlity to resize peerTable and banTable #457

shaavan · 2021-10-25T18:17:23Z

Till now, peerTable and banTable under the peerTab were fixed in height and cannot be resized. This creates unnecessary inconvenience, especially when you have many items on one table and not many on another.

This PR proposes to add a splitter between these two tables, allowing them to be resized freely.

Master	PR

Saibato · 2021-10-26T17:53:21Z

concept ACK

I like the resize. Are they connected or active traffic?

shaavan · 2021-10-27T11:59:41Z

Are they connected or active traffic?

I think they both mean the same thing in this context.
Connected peers, implies the peer that we are currently connected to, indicating the active traffic.

jarolrod

This shouldn't display until there is a Banned Peers table

Additionally, I shouldn't be able to hide any of the tables

src/qt/forms/debugwindow.ui

luke-jr

The new label is redundant: the tab name itself indicates what the user is viewing.

Concept ACK to adding a splitter.

shaavan · 2021-11-01T12:32:52Z

Updated 5e54cfe to c09e6ad (pr457.01 -> pr457.02)
Addressed @jarolrod comments

Updates:

Considering that naming peerTable was not gathering a lot of support. I have removed that change from this PR.
Made the peerTable and banTable non-collapsible.
Increased splitter’s height from 3px to 4px.

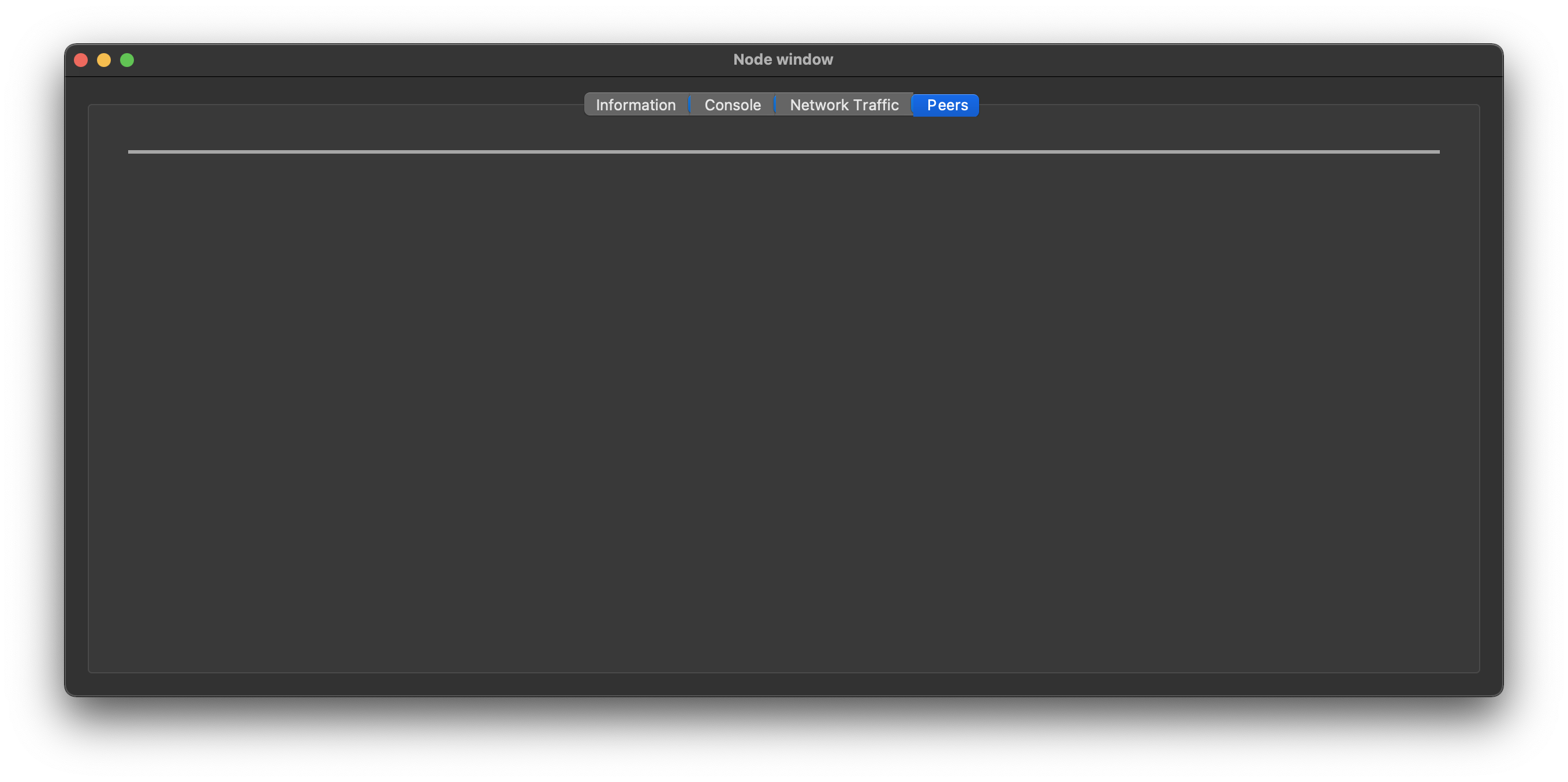

This shouldn't display until there is a Banned Peers table

@jarolrod. As you rightly mentioned, showing splitter when no BanTable was looking kind of off. But in the new iteration of this PR, the splitter seems like an element of peerTable and looks aesthetically pleasing even when there is no banTable. I have updated the PR description with the new Screenshots. You can look at them to better get the feel of what I am trying to say.

jarolrod

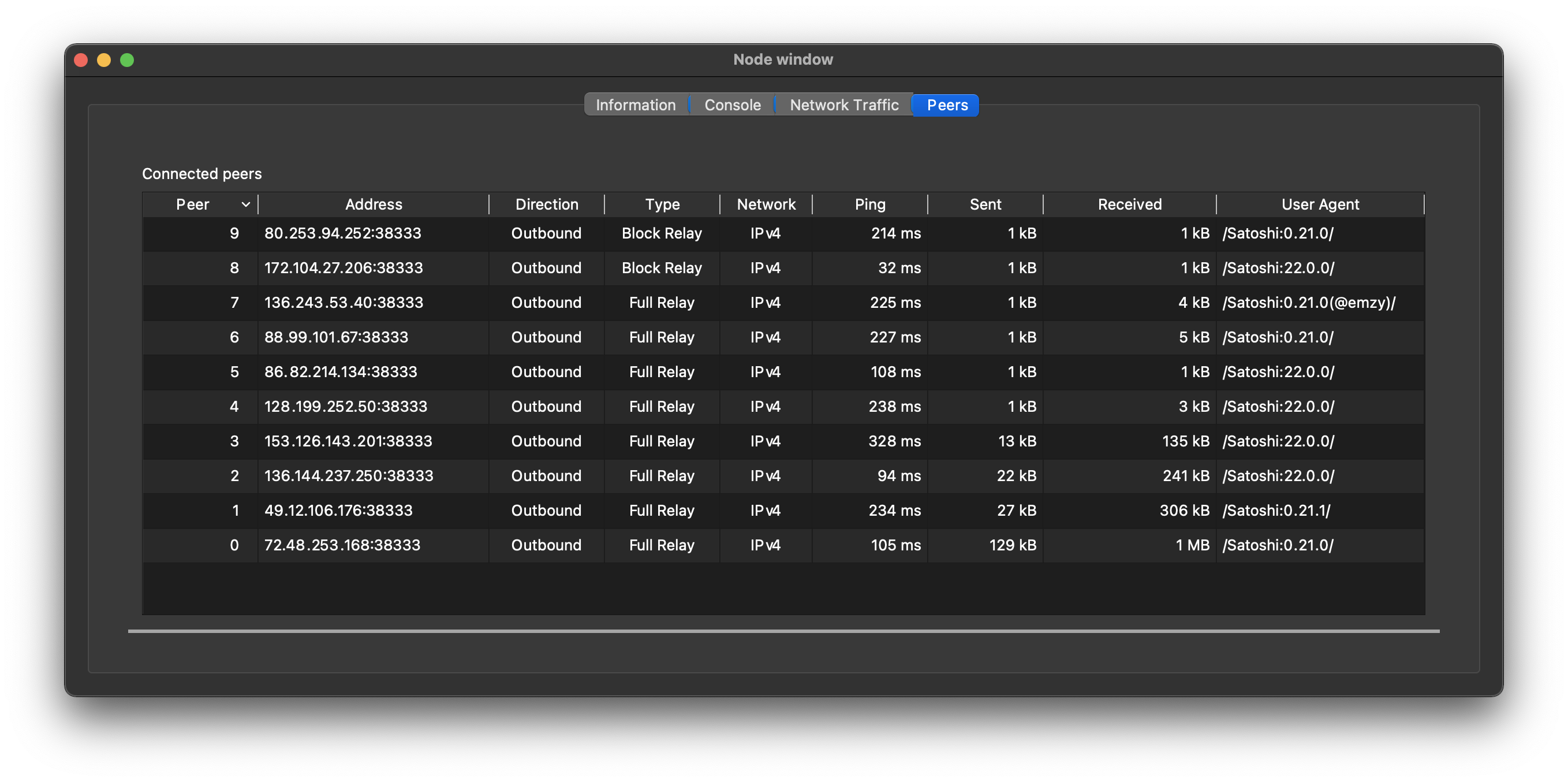

Getting there, but the splitter should behave like the splitter that currently exists between the Peers Table and the Peer Information Pane.

When I select a Peer, I get the Peer Information Pane, as well as a splitter where I can resize as needed. When the peer is de-selected, the splitter disappears; because there is nothing to resize.

Similarly, until I have a banned peer and a banned peer table, the splitter being introduced here should not be displayed at all because there is nothing to resize. Additionally, if i unban a peer and subsequently no longer have a banned peers table, the splitter should disappear as well.

shaavan · 2021-11-03T13:45:55Z

Updated from c09e6ad to aa6229e (pr457.02 -> pr457.03, diff)
Addressed @jarolrod comments

Changes:

Instead of hiding individual children of banTable. The code is now updated to hide the banTable widget. This will make sure the splitter will not be displayed when there is no banTable.
Updated sizePolicy to better reflect the peerWidget and the banTable widget.
Added code to save and restore the state (position) of the splitter. The state is remembered even in the case when GUI is shut down and restarted.

shaavan · 2021-11-05T03:30:01Z

cc @jarolrod. PR ready for another review!

src/qt/forms/debugwindow.ui

kristapsk

ACK aa6229e (tested under Linux / Xfce4)

promag

Concept ACK.

promag · 2021-11-11T18:09:43Z

src/qt/forms/debugwindow.ui

-              <set>Qt::NoTextInteraction</set>
+            <widget class="QSplitter" name="tableSplitter">
+             <property name="styleSheet">
+              <string notr="true">QSplitter::handle{background: #a6a6a6;}</string>


Why this style?

I did this to make the splitter visible and looks aesthetically pleasing.
Do you recommend keeping the splitter invisible?

What do you think about this? @promag

Do you recommend keeping the splitter invisible?

I don't think the hardcoded color will work for any platform and appearance (dark/light), no?

I don't think the hardcoded color will work for any platform and appearance (dark/light), no?

The spiller looks fine for the default light mode (in Linux) and dark mode in macOS, which can be seen in the screenshots of the following comments: light; dark.

However, this doesn't guarantee that this will work for any custom appearance. Do you recommend removing the hardcoded color and making the splitter invisible again?

Why not keeping the same look as for the horizontal splitter?

Do you recommend keeping the splitter invisible?

What does make you think so?

Do you recommend keeping the splitter invisible?

By this, I meant to say, keeping it the same as the horizontal splitter.

Why not keep the same look as for horizontal splitter?

I think this will be a more optimal approach to go with.

But the horizontal splitter is not invisible :)

And having different looks for similar GUI elements does not as an optimal design for me.

At least, introducing a new GUI element, and changing GUI element style across the GUI are two different tasks.

Fixed splitter color to default palette in 0c36420

w0xlt

tACK aa6229e . Tested on Ubuntu 21.10.

hebasto · 2021-11-21T21:04:15Z

Concept ACK.

hebasto · 2021-12-27T11:09:13Z

src/qt/rpcconsole.cpp

+        //Setup Peer and Ban Table Splitter
+        ui->tableSplitter->setChildrenCollapsible(false);
+


This code could be a part of the debugwindow.ui file as it is for the horizontal splitter.

Qt Designer tool could very helpful for such tasks.

Addressed in 0c36420

hebasto · 2021-12-27T11:09:52Z

src/qt/forms/debugwindow.ui

-      <number>0</number>
+      <number>3</number>


Why this change?

This was an auto-generated change by QtCreator. Fixed in 0c36420

DrahtBot · 2021-12-30T10:53:51Z

The following sections might be updated with supplementary metadata relevant to reviewers and maintainers.

Conflicts

Reviewers, this pull request conflicts with the following ones:

#540 (network graph - show/hide panels based on window width/height by RandyMcMillan)

If you consider this pull request important, please also help to review the conflicting pull requests. Ideally, start with the one that should be merged first.

shaavan · 2022-01-07T18:27:57Z

Updated from aa6229e to 0c36420(pr457.04 -> pr457.05)
Addressed @hebasto and @randymacmilan comments

Removed custom color of the added splitter
Moved childrenCollapsible=False to debugwindow.ui file.
Removed auto-generated changes by QtCreator.

hebasto

Approach ACK 0c36420.

Could you please separate a refactoring commit which introduces the banTable widget?

hebasto · 2022-06-26T18:16:22Z

src/qt/forms/debugwindow.ui

           </size>
          </property>
-          <layout class="QVBoxLayout" name="verticalLayout_7">
+          <layout class="QVBoxLayout" name="verticalLayout_9">


Is this change required?

Since this PR introduced a new sub-Layout, the introduced sub-Layout was named in the chronological order of its introduction. And since verticalLayout_7 already exists (on Line 935), giving this the same name leads to a warning message while compiling:

qt/forms/debugwindow.ui: Warning: The name 'verticalLayout_7' (QVBoxLayout) is already in use, defaulting to 'verticalLayout_71'.

So, I am letting this change be as it is for now, and I welcome any suggestions you might have.

- This is a pure refactoring change and is done so that the table splitter can be added between peerTable and banTable in the following commit.

This commit adds a splitter between the peerWidget and the banTable widget. This adds the ability to resize these windows to the user’s needs.

shaavan · 2022-07-02T13:24:58Z

Updated from 0c36420 to 5a9bdce (pr457.05 -> pr457.06, diff)

Addressed @hebasto comment

Changes:

Rebased PR over the current master.
Separated adding of banTable and tableSplitter in separate commits.
Removed unnecessary width/height changes.

jarolrod

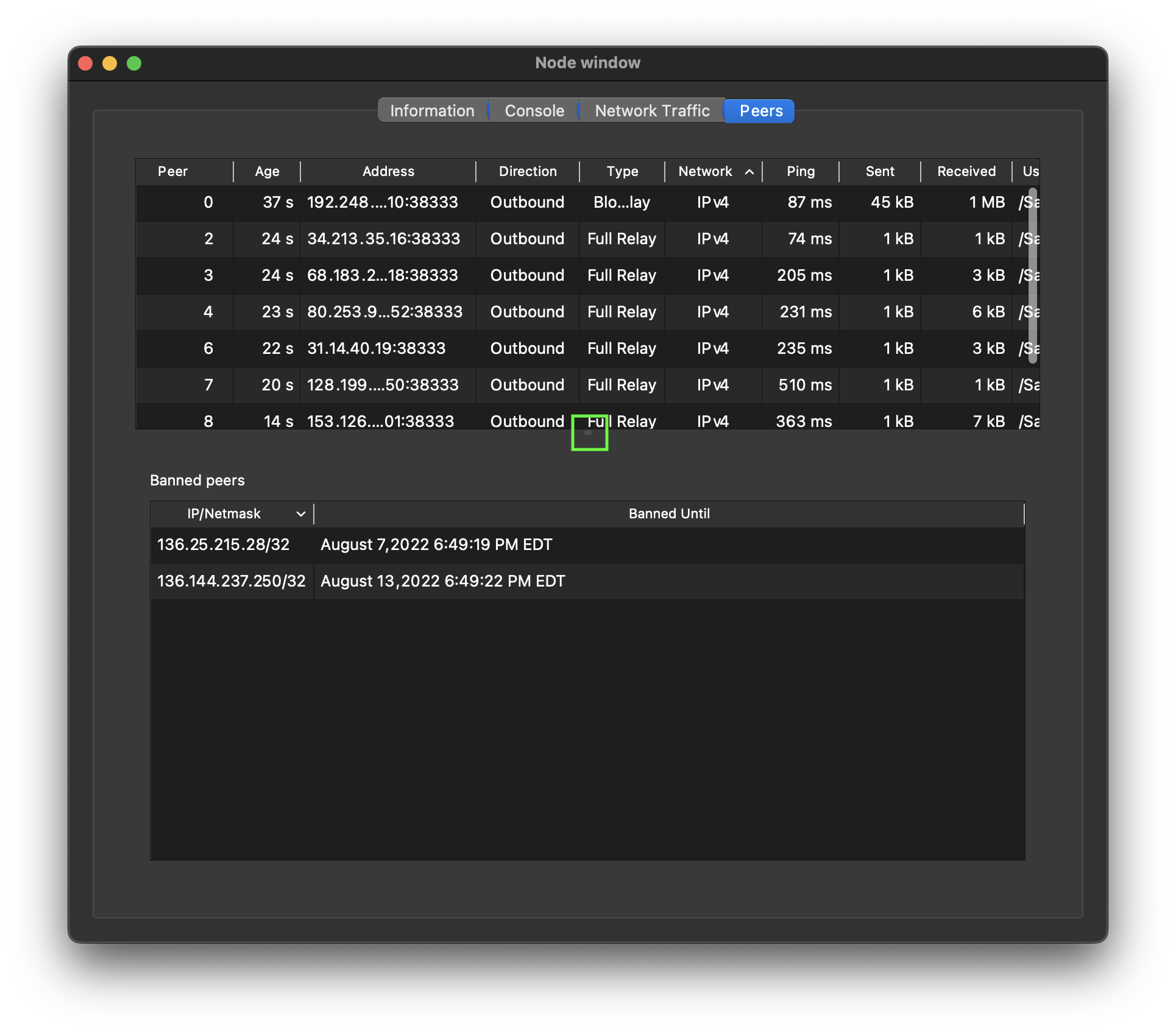

While the resizing works, the UI here does not. The UI element representing the splitter is too small and is pinned to the bottom of peerTable.

linux	macOS

hebasto · 2022-10-26T15:54:17Z

Closing this as it has not had any activity in a while. If you are interested in continuing work on this, please leave a comment so that it can be reopened.
