BoilingNet

check disconnections and interrupts using cURL (>= 7.70.0) and dig

see the methodology section to see what we actually do.

Note: we send requests with a unique User-Agent, if the server doesn't welcome our requests (indicated by HTTP Code 420 or 429), the script will automatically exit.

Table of Content

• Usage
  • Arguments
  • Hotkeys
• Requirements
  • Debian-based distributions
  • Red-Hat-based distributions
  • macOS
• Demo
• Methodology

Usage:

bash [bash file name] -u [URI of the target] [optional -a at the end for any cURL arguments]

bash netector.bash -u https://www.gmail.com/generate_204

bash netector.bash -u https://self-signed.example.com/robots.txt -a -k

Arguments

• -u or --uri to set a new URI instead of default one (i.e. https://gmail.com/generate_204)
• -a or --argument to set arguments for curl commands. (e.g. -I) NOTE: this command must be used at the end.
• -m or --mute to mute the alarms from the start. (you can unmute it anytime in run time by pressing m key)
• -g or --no-graph to start with no graph. (you can see the graph anytime by pressing the g key at run time.
• -r or --resolver to change the default public resolver (i.e. 8.8.8.8)
• -s or --sleep to wait more between each requests to avoid being rate limited or blocked
• -t or --timeout to change the default timeout in dig and curl commands (i.e. 2 seconds)
• -h or --help to see the usage.

NOTE: all arguments after -a will be considered for curl command. therefore you MUST use it at the end

Hotkeys

• press m or M to mute/unmute
• press g or G to show or hide the graph
• press q or Q to exit

Requirements

Debian-based distributions:

sudo apt install dnsutils curl jq -y

Red-Hat-based distributions:

sudo dnf install dnsutils curl jq -y

macOS:

brew install jq

Note: usually macOS has the latest version of cURL and dig. if not, try:

brew install bind curl jq

Demo

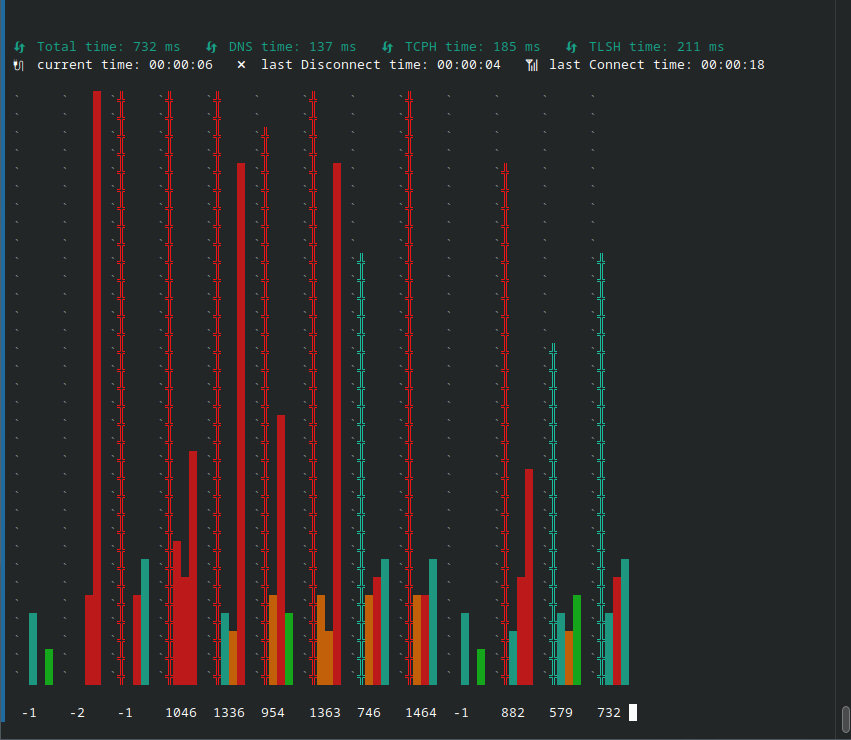

charts bars: Total time* , DNS query time , TCP Handshake time , TLS handshake time

[*] Total time = (curl's time_total - curl's time_namelookup) + dig's Query time to domain's NS server

in the chart above:

• first bar = -1 : DNS is working - TCP handshake is working very fast (less to show in graph --> fixed now) - TLS handshake is working - but after that, there is timeout
• second bar = -2 : DNS is not working - TCP handshake is working very late - TLS handshake is working very late - there is timeout after that. (HTTP exchange)
• third bar = -1 : We now have the Total time's bar - DNS is not working - TCP handshake is working - TLS handshake is working - there is no timeout after that, because we have the Total time's bar
• forth bar = 1046 : which means we had successful connection in both dig and curl. the +0 values like 1046 means Total time

Methodology

using dig command 1) we will fetch the NS of the domain using our default public resolver (i.e. 8.8.8.8) then 2) request the hostname directly to the NS server to check if the NS is working properly. finaly, using curl command, 3) we will request the URI. All as follows:

example URI: https://cp.cloudflare.com/generate_204

$ dig +timeout=1 +retry=0 cloudflare.com @8.8.8.8 NS +short
ns3.cloudflare.com.
[SNIP]

$ dig +timeout=1 +retry=0 cp.cloudflare.com @ns3.cloudflare.com.
[SNIP]
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 40853
[SNIP]
;; Query time: 308 msec
[SNIP]

$ curl -o /dev/null -4 -m2 -sw "%{json}\n" https://cp.cloudflare.com/generate_204
{[SNIP],"http_code":204,[SNIP],"time_appconnect":0.560336,"time_connect":0.355649,"time_namelookup":0.163739,"time_pretransfer":0.560398,"time_redirect":0.000000,"time_starttransfer":0.966813,"time_total":0.966860,[SNIP]}
