Code Base

This repository contains the code to our research on developing a novel method for 4D Gaussian Splatting. The code is based on and adapted from the official implementation of the paper "3D Gaussian Splatting for Real-Time Radiance Field Rendering", which can be found here.

Multi-Optimizer and Differential Batch Processing 4D Gaussian Splatting

Abstract: We propose a scalable training method for full scene Dynamic Gaussian Splatting that significantly reduces memory usage and storage footprint while maintaining high visual fidelity and scene flexibility. Our pipeline introduces a batch-wise differential training and per-frame storage using standard PLY files. We demonstrate training and real-time rendering of arbitrarily long dynamic sequences on consumer-grade GPUs, with average file sizes below 1MB per frame and GPU memory usage below 7.6GB. Furthermore, this approach introduces the ability to handle growing and emerging objects throughout the sequence. Our method aims to support researchers by making volumetric video using Gaussian Splatting more accessible to users with consumer grade hardware, and simplify the integration into existing third party Gaussian Splatting applications.

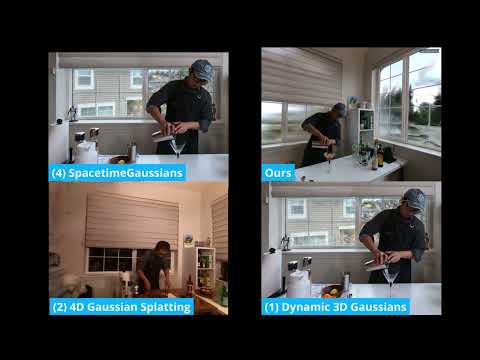

Demonstrational Video on Youtube

Setup

Install 3D Gaussian Splatting

Please refer to the install instructions of the 3D Gaussian Splatting implementations on https://github.com/graphdeco-inria/gaussian-splatting.

Additional Setup

Following the 3DGS install please install the missing requirements from the requirements.txt:

pip install -r requirements.txt

Running

To run the optimizer, simply use

python train.py -s <path to COLMAP dataset> -m <path to result directory>

To view the optimization progress, start the SIBR viewer in a new terminal"

"./viewers/bin/SIBR_remoteGaussian_app.exe" --ip 127.0.0.1 --port 6009

Viewing of Trained Sequences

To load and view readily trained sequences use the viewer script:

python viewer4D.py --source_path <path to frame files>

then start the SIBR viewer:

"./viewers/bin/SIBR_remoteGaussian_app.exe" --ip 127.0.0.1 --port 6009

SIBR Viewer Setup

For the SIBR Viewer Setup please refer to the following instructions by the GRAPHDECO group:

Viewing solutions are based on the SIBR framework, developed by the GRAPHDECO group for several novel-view synthesis projects.

Hardware Requirements

• OpenGL 4.5-ready GPU and drivers (or latest MESA software)
• 4 GB VRAM recommended
• CUDA-ready GPU with Compute Capability 7.0+ (only for Real-Time Viewer)

Software Requirements

• Visual Studio or g++, not Clang (we used Visual Studio 2019 for Windows)
• CUDA SDK 11, install after Visual Studio (we used 11.8)
• CMake (recent version, we used 3.24)
• 7zip (only on Windows)

Pre-built Windows Binaries

We provide pre-built binaries for Windows here. We recommend using them on Windows for an efficient setup, since the building of SIBR involves several external dependencies that must be downloaded and compiled on-the-fly.

Installation from Source

If you cloned with submodules (e.g., using --recursive), the source code for the viewers is found in SIBR_viewers. The network viewer runs within the SIBR framework for Image-based Rendering applications.

Windows

CMake should take care of your dependencies.

cd SIBR_viewers
cmake -Bbuild .
cmake --build build --target install --config RelWithDebInfo

You may specify a different configuration, e.g. Debug if you need more control during development.

Ubuntu 22.04

You will need to install a few dependencies before running the project setup.

# Dependencies
sudo apt install -y libglew-dev libassimp-dev libboost-all-dev libgtk-3-dev libopencv-dev libglfw3-dev libavdevice-dev libavcodec-dev libeigen3-dev libxxf86vm-dev libembree-dev
# Project setup
cd SIBR_viewers
cmake -Bbuild . -DCMAKE_BUILD_TYPE=Release # add -G Ninja to build faster
cmake --build build -j24 --target install

Ubuntu 20.04

Backwards compatibility with Focal Fossa is not fully tested, but building SIBR with CMake should still work after invoking

git checkout fossa_compatibility

Navigation in SIBR Viewers

The SIBR interface provides several methods of navigating the scene. By default, you will be started with an FPS navigator, which you can control with W, A, S, D, Q, E for camera translation and I, K, J, L, U, O for rotation. Alternatively, you may want to use a Trackball-style navigator (select from the floating menu). You can also snap to a camera from the data set with the Snap to button or find the closest camera with Snap to closest. The floating menues also allow you to change the navigation speed. You can use the Scaling Modifier to control the size of the displayed Gaussians, or show the initial point cloud.

Running the Network Viewer

remoteviewer.mp4

After extracting or installing the viewers, you may run the compiled SIBR_remoteGaussian_app[_config] app in <SIBR install dir>/bin, e.g.:

./<SIBR install dir>/bin/SIBR_remoteGaussian_app

The network viewer allows you to connect to a running training process on the same or a different machine. If you are training on the same machine and OS, no command line parameters should be required: the optimizer communicates the location of the training data to the network viewer. By default, optimizer and network viewer will try to establish a connection on localhost on port 6009. You can change this behavior by providing matching --ip and --port parameters to both the optimizer and the network viewer. If for some reason the path used by the optimizer to find the training data is not reachable by the network viewer (e.g., due to them running on different (virtual) machines), you may specify an override location to the viewer by using -s <source path>.

Primary Command Line Arguments for Network Viewer

--path / -s

Argument to override model's path to source dataset.

--ip

IP to use for connection to a running training script.

--port

Port to use for connection to a running training script.

--rendering-size

Takes two space separated numbers to define the resolution at which network rendering occurs, 1200 width by default. Note that to enforce an aspect that differs from the input images, you need --force-aspect-ratio too.

--load_images

Flag to load source dataset images to be displayed in the top view for each camera.

Running the Real-Time Viewer

realtimeviewer.mp4

After extracting or installing the viewers, you may run the compiled SIBR_gaussianViewer_app[_config] app in <SIBR install dir>/bin, e.g.:

./<SIBR install dir>/bin/SIBR_gaussianViewer_app -m <path to trained model>

It should suffice to provide the -m parameter pointing to a trained model directory. Alternatively, you can specify an override location for training input data using -s. To use a specific resolution other than the auto-chosen one, specify --rendering-size <width> <height>. Combine it with --force-aspect-ratio if you want the exact resolution and don't mind image distortion.

To unlock the full frame rate, please disable V-Sync on your machine and also in the application (Menu → Display). In a multi-GPU system (e.g., laptop) your OpenGL/Display GPU should be the same as your CUDA GPU (e.g., by setting the application's GPU preference on Windows, see below) for maximum performance.

In addition to the initial point cloud and the splats, you also have the option to visualize the Gaussians by rendering them as ellipsoids from the floating menu. SIBR has many other functionalities, please see the documentation for more details on the viewer, navigation options etc. There is also a Top View (available from the menu) that shows the placement of the input cameras and the original SfM point cloud; please note that Top View slows rendering when enabled. The real-time viewer also uses slightly more aggressive, fast culling, which can be toggled in the floating menu. If you ever encounter an issue that can be solved by turning fast culling off, please let us know.

Primary Command Line Arguments for Real-Time Viewer

--model-path / -m

Path to trained model.

--iteration

Specifies which of state to load if multiple are available. Defaults to latest available iteration.

--path / -s

Argument to override model's path to source dataset.

--rendering-size

Takes two space separated numbers to define the resolution at which real-time rendering occurs, 1200 width by default. Note that to enforce an aspect that differs from the input images, you need --force-aspect-ratio too.

--load_images

Flag to load source dataset images to be displayed in the top view for each camera.

--device

Index of CUDA device to use for rasterization if multiple are available, 0 by default.

--no_interop

Disables CUDA/GL interop forcibly. Use on systems that may not behave according to spec (e.g., WSL2 with MESA GL 4.5 software rendering).

Processing your own Scenes

Please Install COLMAP onto your system.

Then you can simply run sychvideos.py pointing to the directory containing the source videos of all cameras:

python synchvideos.py --videosdir <directory containing source videos> --referencevideo <path to referencevideo> --targetdir <path to target directory>

Command Line Arguments for synchvideos.py

--videosdir

Path to directory containing source videos.

--referencevideo

Path to referencevideo.

--framestart

Frame to start synching from. Default: 0

--endframe

Frame to trim the videos to. Default: 100

--framerate

Framerate of recorded videos. Default: 30

--fileformat

Fileformat of the recorded videos (MP4, MOV, etc). Default: MOV

--downscale

Flag to downscale extracted images. Default: False

--skipsync

Flag to skip synching process if videos are already synched. Default: False
