🚀 ARDU-8051

Open-Source Arduino-Compatible 8051 Hardware & Virtual Lab Platform

Learn 8051 microcontroller architecture, assembly language, and interfacing — with real hardware parity and an online virtual lab.

---

🏷️ Project Badges

---

🌐 Live Links

• 🔬 Virtual Lab (Online):
  https://gmostofabd.github.io/ARDU-8051/lab/

• 📘 Documentation:
  https://github.com/gmostofabd/ARDU-8051/tree/main/docs

• 🧪 Experiments:
  https://gmostofabd.github.io/ARDU-8051/experiments/

---

🧠 What is ARDU-8051?

ARDU-8051 is a complete open-source learning platform designed to teach the 8051 microcontroller in a modern, practical, and globally accessible way.

It combines:

• ✔ Open-source hardware
• ✔ Assembly-level programming
• ✔ Browser-based virtual lab
• ✔ Real hardware ↔ simulator parity
• ✔ Arduino-compatible form factor

Suitable for:

• Engineering universities & colleges
• Remote and blended learning
• Self-learners and hobbyists
• Teachers and lab instructors

---

🎯 Educational Motivation

The 8051 microcontroller is still widely taught, but teaching tools are outdated.

Common problems:

• Obsolete trainer boards
• No reliable simulators
• Proprietary programmers
• Weak connection between theory and practice

ARDU-8051 solves this by:

• Integrating hardware and simulation
• Using industry-style workflows
• Remaining fully open-source
• Supporting learning anywhere, anytime

---

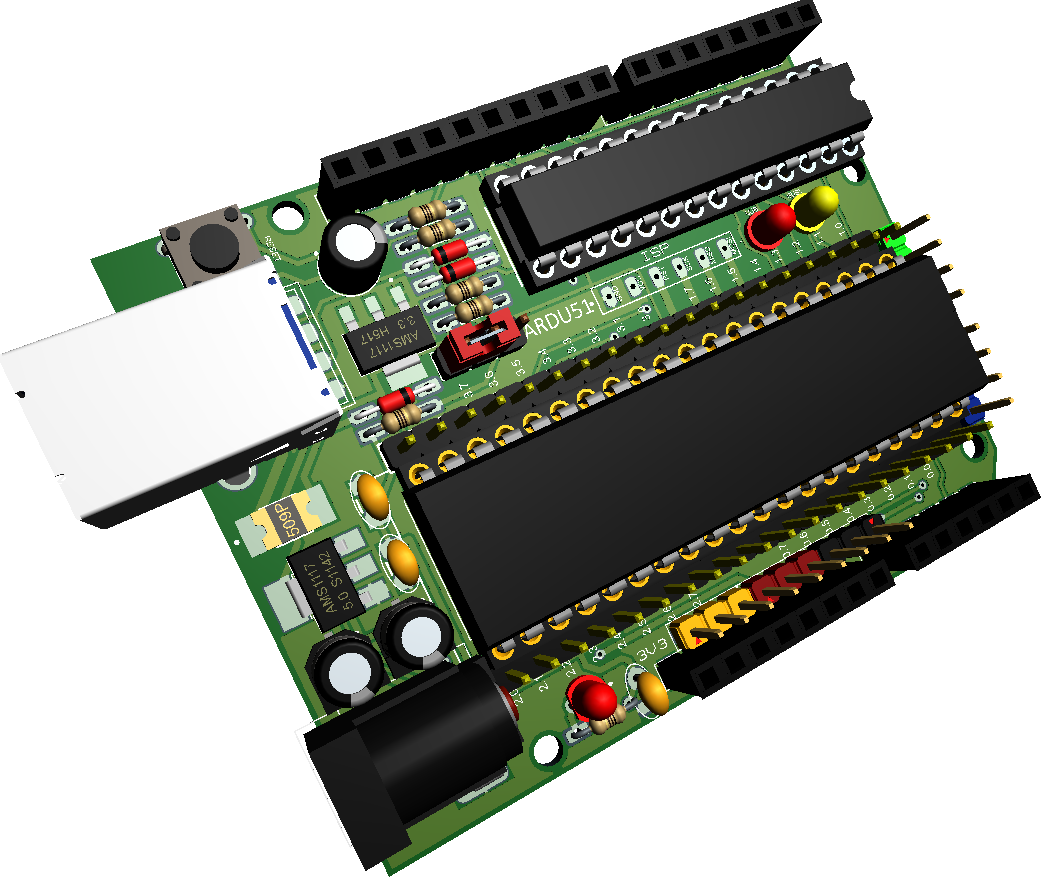

🖼️ Hardware Preview

---

🧩 Hardware Platform Highlights

• AT89S52 (8051 core) @ 11.0592 MHz
• On-board USBasp programmer
• No external programmer required
• ADC0804 for analog experiments
• Arduino UNO–compatible headers
• Buffered Port-0 (74HC245)
• UART & I²C headers
• External ISP header
• +5V / +3.3V regulated rails
• DIP & SMD MCU support

---

🧪 Virtual Lab Features

• Runs fully in the web browser
• Hosted on GitHub Pages
• Step-by-step guided experiments
• Circuit + assembly code + output together
• Matches real hardware behavior
• Ideal for flipped classrooms & remote labs

---

🧪 Experiment Index

No	Experiment	Core Concept
01	LED Blinking using Timer	Timers
02	7-Segment Display Interface	Digital I/O
03	Multiplexed 4-Digit Display	Multiplexing
04	4×4 Keypad with LCD	Interfacing
05	DC Motor Control	Control Systems
06	Stepper Motor Control	Sequencing
07	Servo Motor Control	PWM
08	8×8 LED Matrix	Scanning

👉 Run Experiments Online:
https://gmostofabd.github.io/ARDU-8051/experiments/

---

📂 Repository Structure

ARDU-8051/
│
├── docs/                 # Theory & documentation
│   └── images/
│
├── experiments/          # Virtual lab (HTML-based)
│   ├── index.html
│   ├── 01-led-blink.html
│   └── ...
│
├── firmware/             # 8051 assembly source codes
│
├── hardware/             # Schematics & PCB files
│
├── assets/               # Images & media
│
├── LICENSE               # MIT License
└── README.md
