OSD Encryption

Prepare the encrypted pool on ceph

For this tutorial we will use the replica 3 ceph cluster shown in the following figure:

To create an encrypted pool we will execute the following steps:

1. add new OSDs to the cluster using the --dmcrypt option;
2. modify the crush map in order to create a root bucket containing the new OSDs and a new rule "encrypted_ruleset";
3. create the pool "encrypted" and associate it with the rule "encrypted_ruleset".

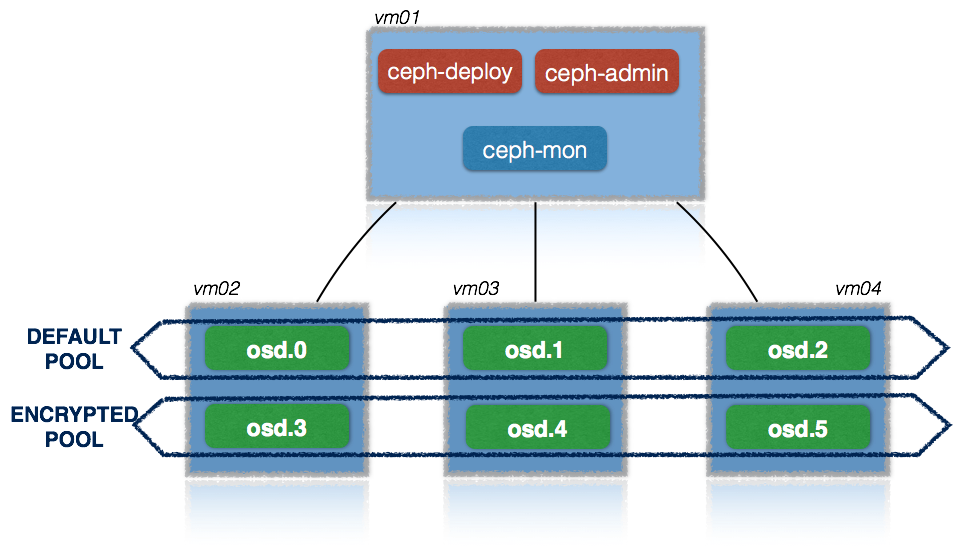

The final setup of the cluster is shown in the following figure:

Step1: add the new encrypted OSDs

From the admin node (vm01), into the working directory (cd ceph-cluster), run these commands:

#!bash
ceph-deploy disk zap vm02:vdb
ceph-deploy disk zap vm03:vdb
ceph-deploy disk zap vm04:vdb

ceph-deploy osd create --dmcrypt vm02:vdb
ceph-deploy osd create --dmcrypt vm03:vdb
ceph-deploy osd create --dmcrypt vm04:vdb

Note: by default, ceph stores the encryption keys in the folder /etc/ceph/dmcrypt-keys.

You can check the cluster status and the OSD tree map:

ceph status

ceph osd tree

Step2: Modify the crush map

Get the crush map and decompile it using the following commands:

#!bash
ceph osd getcrushmap -o crushmap.compiled
crushtool -d crushmap.compiled -o crushmap.decompiled

Edit the map crushmap.decompiled adding the following buckets:

host vm02-encr {
        id -5           # do not change unnecessarily
        # weight 0.080
        alg straw
        hash 0  # rjenkins1
        item osd.3 weight 0.040
}
host vm03-encr {
        id -6           # do not change unnecessarily
        # weight 0.080
        alg straw
        hash 0  # rjenkins1
        item osd.4 weight 0.040
}
host vm04-encr {
        id -7           # do not change unnecessarily
        # weight 0.080
        alg straw
        hash 0  # rjenkins1
        item osd.5 weight 0.040
}

root encrypted {
        id -8           # do not change unnecessarily
        # weight 0.120
        alg straw
        hash 0  # rjenkins1
        item vm02-encr weight 0.040
        item vm03-encr weight 0.040
        item vm04-encr weight 0.040
}

Moreover add the following rule:

rule encrypted_ruleset {
        ruleset 1
        type replicated
        min_size 1
        max_size 10
        step take encrypted
        step chooseleaf firstn 0 type host
        step emit
}

Note: the ids of the added entities may be different - take care of replacing them in order to use unique ids inside the map.

Now, you can apply the modified crush map:

#!bash
crushtool -c crushmap.decompiled -o crushmap.compiled
ceph osd setcrushmap -i crushmap.compiled

Note: you can disable updating the crushmap on start of the daemon:

[osd]
osd crush update on start = false

Check the cluster status:

#!bash
ceph status

ceph osd tree

Step3: Create the pool 'encrypted'

Create the pool "encrypted" and assign the rule "encrypted_ruleset" to the pool:

#!bash
ceph osd pool create encrypted 128
ceph osd pool set encrypted crush_ruleset 1

Check the results:

#!bash
ceph osd dump

Create a dedicated cinder backend

Once we have created an encrypted pool we can configure cinder to use it. Edit the cinder-volume configuration file adding the new backend:

[rbdencrypted]
volume_backend_name=RBD-ENCR
volume_driver=cinder.volume.drivers.rbd.RBDDriver
rbd_pool=encrypted
rbd_ceph_conf=/etc/ceph/ceph.conf
rbd_flatten_volume_from_snapshot=false
rbd_max_clone_depth=5
glance_api_version=2
rbd_user=cinder
rbd_secret_uuid=457eb676-33da-42ec-9a8c-9293d545c337

Modify the 'cinder' user capabilities to allow access also to the new pool 'encrypted' in order to read and write data:

#!bash
ceph auth caps client.cinder mon 'allow r' osd 'allow class-read object_prefix rbd_children, allow rwx pool=volumes, allow rx pool=images, allow rwx pool=encrypted'

Restart the cinder-volume service:

#!bash
service cinder-volume restart

Create the volume-type "encrypted":

cinder type-create encrypted
cinder type-key encrypted set volume_backend_name=RBD-ENCR

Create a volume on the encrypted backend:

cinder create --volume_type encrypted --display_name vol-test-encrypted 1

Check the status and the details of the volume:

cinder show vol-test-encrypted
