easyandroidgraph

This tool makes it easier to use the built in Android tools to draw
points, lines, shapes, and bitmaps.

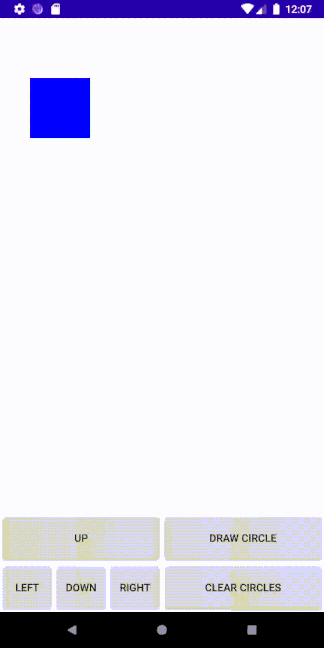

Features

• Drawing shapes in Android no longer requires dealing with canvas, revalidating, and handling the data yourself.
• Simple built in functions let you draw anything you want
• Setup and use takes seconds, and saves you many lines of code.
• Great for reusability.

Installation

Option 1: Download JAR File

1. Head over to latest releases and download the latest JAR file.

2. Add the JAR file as an external library to your code. Here is an example for Android Studio.

Option 2: Source

1. Clone the easyandroidgraph git repo.
2. Copy the contents of the source folder into your own project's src folder.

How to use

easyandroidgraph provides you with a single view that can be added to a layout and contains utility functions to draw on said view.

Import

import com.masesk.easyandroidgraph.DrawView;

NOTE: com.masesk.easyandroidgraph would be replaced with your package name if you use the source installation.

Layout as XML

Use the following in your layout XML as an example:

    <com.masesk.easyandroidgraph.DrawView
        android:id="@+id/drawView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_weight="1" />

NOTE: com.masesk.easyandroidgraph would be replaced with your package name if you use the source installation.

NOTE: Change the id ("drawView" in this example) as need but keep track of it

Use the following in your Java Activity as an example:

 DrawView drawView = findViewById(R.id.drawView);

Layout as Java

Use the following in your Java Activity as an example:

DrawView drawView = new DrawView(context, attributeSet);
layout.addView(view);

Constructor, Methods, and Parameters

• • Constructor Detail

    • DrawView

      public DrawView(Context context,
                      AttributeSet attr)


  • Method Detail

    • setCenter

      public boolean setCenter(java.lang.String id,
                               float x,
                               float y)


      Parameters: : id - unique shape identifier : x - shape's new X value : y - shape's new Y value Returns: : false if id does not exist, true if operation completed. ONLY WORKS FOR CIRCLES, POINTS, AND BITMAPS

    • setX

      public boolean setX(java.lang.String id,
                          float x)


      Parameters: : id - unique shape identifier : x - shape's new X value Returns: : false if id does not exist, true if operation completed. ONLY WORKS FOR CIRCLES, POINTS, AND BITMAPS

    • getX

      public float getX(java.lang.String id)


      Parameters: : id - unique shape identifier Returns: : shape's X value ONLY WORKS FOR CIRCLES, POINTS, AND BITMAPS

    • setY

      public boolean setY(java.lang.String id,
                          float y)


      Parameters: : id - unique shape identifier : y - shape's new Y value Returns: : false if id does not exist, true if operation completed. ONLY WORKS FOR CIRCLES, POINTS, AND BITMAPS

    • getY

      public float getY(java.lang.String id)


      Parameters: : id - unique shape identifier Returns: : shape's Y value ONLY WORKS FOR CIRCLES, POINTS, AND BITMAPS

    • setRadius

      public boolean setRadius(java.lang.String id,
                               float radius)


      Parameters: : id - unique shape identifier : radius - circle's new radius Returns: : false if id does not exist, true if operation completed. ONLY WORKS FOR CIRCLES

    • getRadius

      public float getRadius(java.lang.String id)


      Parameters: : id - unique shape identifier Returns: : circle's radius ONLY WORKS FOR CIRCLES

    • setLinePoints

      public boolean setLinePoints(java.lang.String id,
                                   float startX,
                                   float startY,
                                   float endX,
                                   float endY)


      Parameters: : id - shape unique identifier : startX - line's new starting X value : startY - line's new starting Y value : endX - line's new ending X value : endY - line's new ending Y value Returns: : false if id does not exist, true if operation completed. ONLY WORKS FOR LINES

    • setStartPoint

      public boolean setStartPoint(java.lang.String id,
                                   float startX,
                                   float startY)


      Parameters: : id - unique shape identifier : startX - line's new starting X value : startY - line's new starting Y value Returns: : false if id does not exist, true if operation completed. ONLY WORKS FOR LINES AND RECTANGLES

    • setEndPoint

      public boolean setEndPoint(java.lang.String id,
                                 float endX,
                                 float endY)


      Parameters: : id - shape unique identifier : endX - line's new ending X value : endY - line's new ending Y value Returns: : false if id does not exist, true if operation completed. ONLY WORKS FOR LINES AND RECTANGLES

    • setStartX

      public boolean setStartX(java.lang.String id,
                               float startX)


      Parameters: : id - unique shape identifier : startX - line's new starting X value Returns: : false if id does not exist, true if operation completed.

    • getStartX

      public float getStartX(java.lang.String id)


      Parameters: : id - unique shape identifier Returns: : shape's starting X value ONLY WORKS WITH LINES AND RECTANGLES

    • setStartY

      public boolean setStartY(java.lang.String id,
                               float startY)


      Parameters: : id - unique shape identifier : startY - shape's new starting Y value Returns: : false if id does not exist, true if operation completed. ONLY WORKS WITH LINES AND RECTANGLES

    • getStartY

      public float getStartY(java.lang.String id)


      Parameters: : id - unique shape identifier Returns: : shape's starting Y value ONLY WORKS WITH RECTANGLES AND LINES

    • setEndX

      public boolean setEndX(java.lang.String id,
                             float endX)


      Parameters: : id - unique shape identifier : endX - shape's new ending X value Returns: : false if id does not exist, true if operation completed. ONLY WORKS WITH LINES AND RECTANGLES

    • getEndX

      public float getEndX(java.lang.String id)


      Parameters: : id - unique shape identifier Returns: : shape's ending X value ONLY WORKS WITH LINES AND RECTANGLES

    • setEndY

      public boolean setEndY(java.lang.String id,
                             float endY)


      Parameters: : id - unique shape identifier : endY - shape's new ending Y value Returns: : false if id does not exist, true if operation completed. ONLY WORKS WITH LINES AND RECTANGLES

    • getEndY

      public float getEndY(java.lang.String id)


      Parameters: : id - unique shape identifier Returns: : shape's ending Y value ONLY WORKS WITH LINES AND RECTANGLES

    • setBitmap

      public boolean setBitmap(java.lang.String id,
                               Bitmap bitmap)


      Parameters: : id - unique shape identifier : bitmap - new bitmap instance Returns: : false if id does not exist, true if operation completed. ONLY WORKS WITH BITMAPS

    • getBitmap

      public Bitmap getBitmap(java.lang.String id)


      Parameters: : id - unique shape identifier Returns: : current bitmap instance ONLY WORKS WITH BITMAPS

    • setOvalLengths

      public boolean setOvalLengths(java.lang.String id,
                                    float left,
                                    float top,
                                    float right,
                                    float bottom)


      Parameters: : id - unique shape identifier : left - oval's new left length : top - oval's new top length : right - oval's new right length : bottom - oval's new bottom length Returns: : false if id does not exist, true if operation completed. ONLY WORKS WITH OVALS

    • setRectPoints

      public boolean setRectPoints(java.lang.String id,
                                   float left,
                                   float top,
                                   float right,
                                   float bottom)


      Parameters: : id - unique shape identifier : left - rectangle's new left length : top - rectangle's new top length : right - rectangle's new right length : bottom - rectangle's new bottom length Returns: : false if id does not exist, true if operation completed. ONLY WORKS WITH RECTANGLES

    • setCircleCenterAndRadius

      public boolean setCircleCenterAndRadius(java.lang.String id,
                                              float x,
                                              float y,
                                              float radius)


      Parameters: : id - unique shape identifier : x - circle's new center x value : y - circle's new center y value : radius - circle's new radius value Returns: : false if id does not exist, true if operation completed. ONLY WORKS WITH CIRCLES

    • setLeft

      public boolean setLeft(java.lang.String id,
                             float left)


      Parameters: : id - unqiue shape identifier : left - shape's new left value Returns: : false if id does not exist, true if operation completed. ONLY WORKS WITH OVALS AND RECTANGLES

    • getLeft

      public float getLeft(java.lang.String id)


      Parameters: : id - unique shape identifer Returns: : false if id does not exist, true if operation completed. ONLY WORKS WITH OVALS AND RECTANGLES

    • setTop

      public boolean setTop(java.lang.String id,
                            float top)


      Parameters: : id - unique shape identifer : top - shape's new top value Returns: : false if id does not exist, true if operation completed. ONLY WORKS WITH OVALS AND RECTANGLES

    • getTop

      public float getTop(java.lang.String id)


      Parameters: : id - unique shape identifer Returns: : shape's top value ONLY WORKS WITH OVALS AND RECTANGLES

    • setRight

      public boolean setRight(java.lang.String id,
                              float right)


      Parameters: : id - unique shape identifier : right - shape's new right value Returns: : false if id does not exist, true if operation completed. ONLY WORKS WITH OVALS AND RECTANGLES

    • getRight

      public float getRight(java.lang.String id)


      Parameters: : id - unique shape identifier Returns: : shape's right value ONLY WORKS WITH OVALS AND RECTANGLES

    • setBottom

      public boolean setBottom(java.lang.String id,
                               float bottom)


      Parameters: : id - unique shape identifier : bottom - shape's new bottom value Returns: : false if id does not exist, true if operation completed. ONLY WORKS WITH OVAL AND RECTANGLES

    • getBottom

      public float getBottom(java.lang.String id)


      Parameters: : id - unique shape identifier Returns: : shape's bottom value ONLY WORKS WITH OVALS AND RECTANGLES

    • setPaint

      public boolean setPaint(java.lang.String id,
                              Paint paint)


      Parameters: : id - unique shape identifier : paint - new paint instance Returns: : false if id does not exist, true if operation completed.

    • getPaint

      public Paint getPaint(java.lang.String id)


      Parameters: : id - unique shape identifier Returns: : paint instance belonging to given id

    • bringToFront

      public boolean bringToFront(java.lang.String id)


      Parameters: : id - unique shshapeape identifier Returns: : false if id does not exist, true if operation completed.

    • drawCircle

      public boolean drawCircle(java.lang.String id,
                                float x,
                                float y,
                                float radius,
                                Paint paint,
                                boolean visible)


      Parameters:

      id - unique shape identifier

      x - center x value

      y - center y value

      radius - radius of circle

      paint - describes color, stroke width, etc

      visible - visibility of shape

      Returns:

    • drawBitmap

      public boolean drawBitmap(java.lang.String id,
                                Bitmap bitmap,
                                float x,
                                float y,
                                Paint paint,
                                boolean visible)


      Parameters:

      id - unique shape identifier

      bitmap - bitmap instance

      x - bitmap x value

      y - bitmap y value

      paint - describes color, stroke width, etc

      visible - visibility of shape

      Returns:

    • drawOval

      public boolean drawOval(java.lang.String id,
                              float left,
                              float top,
                              float right,
                              float bottom,
                              Paint paint,
                              boolean visible)


      Parameters:

      id - unique shape identifier

      left - position

      top - length value

      right - length value

      bottom - length value

      paint - describe color, stroke width, etc

      visible - visibility of shape

      Returns:

    • drawLine

      public boolean drawLine(java.lang.String id,
                              float startX,
                              float startY,
                              float endX,
                              float endY,
                              Paint paint,
                              boolean visible)


      Parameters:

      id - unique shape identifier

      startX - line starting x position value

      startY - line starting y position value

      endX - line ending x value

      endY - line ending y value

      paint - describe color, stroke width, etc

      visible - visibility of shape

      Returns:

    • drawPoint

      public boolean drawPoint(java.lang.String id,
                               float x,
                               float y,
                               Paint paint,
                               boolean visible)


      Parameters:

      id - unique shape identifier

      x - position of point

      y - position of point

      paint - describe color, stroke width, etc

      visible - visibility of shape

      Returns:

    • drawRect

      public boolean drawRect(java.lang.String id,
                              float left,
                              float top,
                              float right,
                              float bottom,
                              Paint paint,
                              boolean visible)


      Parameters:

      id - unique shape identifier

      left - position value

      top - position value

      right - position value

      bottom - position value

      paint - describe color, stroke width, etc

      visible - visibility of shape

      Returns:

    • hide

      public boolean hide(java.lang.String id)


      Parameters: : id - unique shape identifier Returns: : false if id does not exist, true if operation completed.

    • show

      public boolean show(java.lang.String id)


      Parameters: : id - unique shape identifier Returns: : false if id does not exist, true if operation completed.

    • isVisible

      public boolean isVisible(java.lang.String id)


      Parameters: : id - unique shape identifier Returns: : true if shape is visible

    • remove

      public boolean remove(java.lang.String id)


      Parameters: : id - unique shape identifier Returns: : false if id does not exist, true if operation completed.

    • getDefaultPaint

      public Paint getDefaultPaint()


      Returns: : default paint that will be used if null is passed for a shape

    • setDefaultPaint

      public void setDefaultPaint(Paint paint)


      Parameters: : paint - new default paint

    • setAutoRedraw

      public void setAutoRedraw(boolean st)


      Parameters: : st - set the state of auto redraw

    • getAutoRedraw

      public boolean getAutoRedraw()


      Returns: : true if auto redraw is enabled

    • redraw

      public void redraw()


      user invoked to force redraw

Source code can be found on github.

Developed by Mases Krikorian
