WoMA3Dengine

⚙️ A multi-platform, modular 3D game engine written in C++ with support for DirectX 11, DirectX 12, Android (OpenGL ES), and Linux (OpenGL).
📚 Built for learning and showcasing 3D engine development — from fundamentals to terrain rendering, animation, and PBR.

---

Platforms

📘 Table of Contents

• ✨ Features
  • 🖥️ Platform & API Support
  • 🔧 Engine Architecture
  • 🧱 Rendering Features
  • 🌍 Scene & Asset Management
  • 🎮 Animation & Effects
  • 📐 Math & Utilities
  • 🧪 Development Tools
• 🧪 Which Project to Build?
  • 🪟 Windows
  • 🤖 Android
  • 🐧 Linux
• 🎮 Controls & Hotkeys
• 📂 Tutorial Series
  • 🔺 Advanced Mesh Series
  • 🌿 Billboard Series
  • 🌄 Terrain Series
  • 📘 Intermediate Tutorials
  • 📗 Basic Tutorials
  • ⚙️ Core System Tutorials

✨ Features

The WoMA3Dengine is a modular, cross-platform 3D graphics engine that showcases modern rendering techniques and engine design through a step-by-step tutorial approach.

🖥️ Platform & API Support

• Cross-platform: Windows, Linux, Android
• Graphics APIs: DirectX 9, 11, 12, OpenGL (3.3+), Vulkan (planned)
• Shader Languages: HLSL & GLSL
• Build System: Visual Studio, GCC, Android NDK

🔧 Engine Architecture

• Modular and extensible engine layers using DX_ENGINE_LEVEL and CORE_ENGINE_LEVEL
• Separation of rendering pipeline, asset management, and scene logic
• Runtime and editor/debug builds
• Memory leak detection and structured exception handling

🧱 Rendering Features

• Physically Based Rendering (PBR) using glTF material specs
• Multiple lighting models: Phong, Blinn-Phong, and physically-based
• Dynamic day/night lighting system with real-time sun/moon direction
• Real-time shadows: PCF and shadow maps
• Frustum culling and bounding-box optimization
• Instancing & billboarding
• Screen-space effects: fog, depth-based shading

🌍 Scene & Asset Management

• Mesh loading via ASSIMP (.obj, .fbx, .dae, .3ds, .blend)
• Texture pipeline with automatic DDS conversion (_DEBUG)
• Cyphered asset loading from packed W3D formats
• LOD generation and selection
• Sky dome, water, terrain heightmap loading

🎮 Animation & Effects

• FBX animation support with skeleton/bone playback
• Multiple animation merging and metadata extraction
• Billboarded particles and vegetation
• Celestial simulation: real sun/moon positioning, METAR-based weather

📐 Math & Utilities

• Custom camera system (1st-person, 3rd-person, orbit)
• Ray casting / object picking
• AABB and bounding sphere generation
• Full linear algebra library (vectors, matrices, quaternions)

🧪 Development Tools

• Modular tutorial progression (89+ stages)
• Logging system to console, VS output, and log file
• Debug render modes (wireframe, UV checker, LOD, normals)
• Editor toolkits planned (map/scene builder)

---

WoMA3Dengine at Level 29 INTRO DEMO

Movement Keys: (at level28)

Keys / Hints:

- Left: arrow or a - Right: arrow or d - Front: arrow or w - Back: arrow or s - Look Up: pg. Up - Look Down: pg. Down - Go Up: R (GOD MODE: true) - Go Down: F (GOD MODE: true)

[F1] Full system info (CPU, GPU, OS, memory, etc.) [F2] Celestial info (Sun, Moon, sunrise/sunset, azimuth) Latitude/Longitude Calculate Sun Rise / Sun Set Moon Distance Sun Geometric elevation Moon Geometric elevation Moon Azimuth [F3] World map with real location [F4] Weather data (METAR, clouds, temperature, humidity) (when network option is: ON) [F5] Game Rendering, Default engine run mode (gameplay / scene view) [F6] Engine setup / configuration screen Try to Change the driver on the fly without the need of close and open the Application. - DirectX 12 - DirectX 11 - DirectX 9 - OPENGL 4 [F11] Switch God Mode (on debug only: flying fast over the terrain)

HTTP WOMA 3D ENGINE TUTORIAL LIST

---

3D - ADVANCED TUTORIAL SERIES

3D - ADVANCED MESH & TERRAIN TUTORIAL SERIES: BEGIN

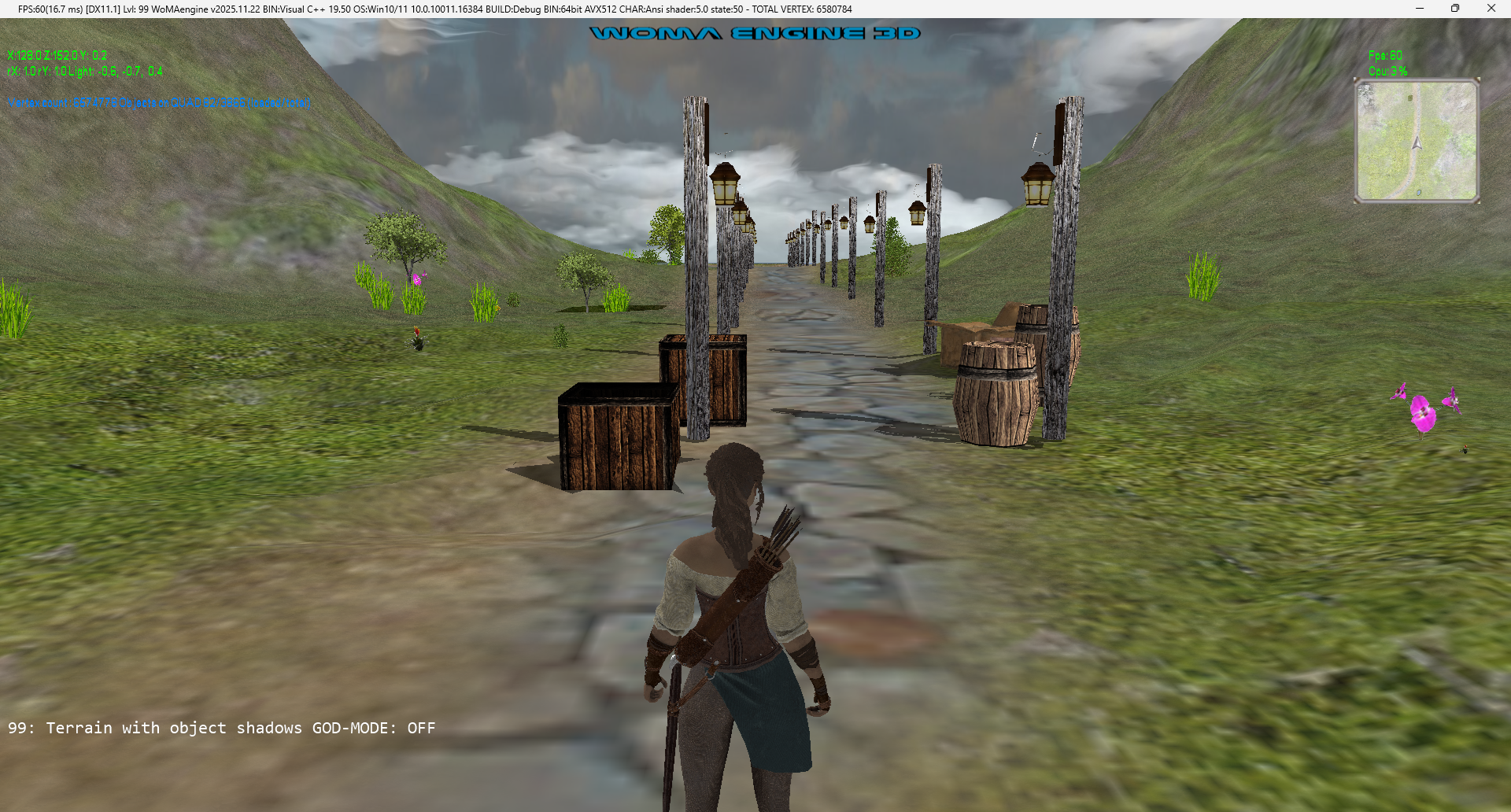

• LEVEL-99: Terrain with object shadows.


---

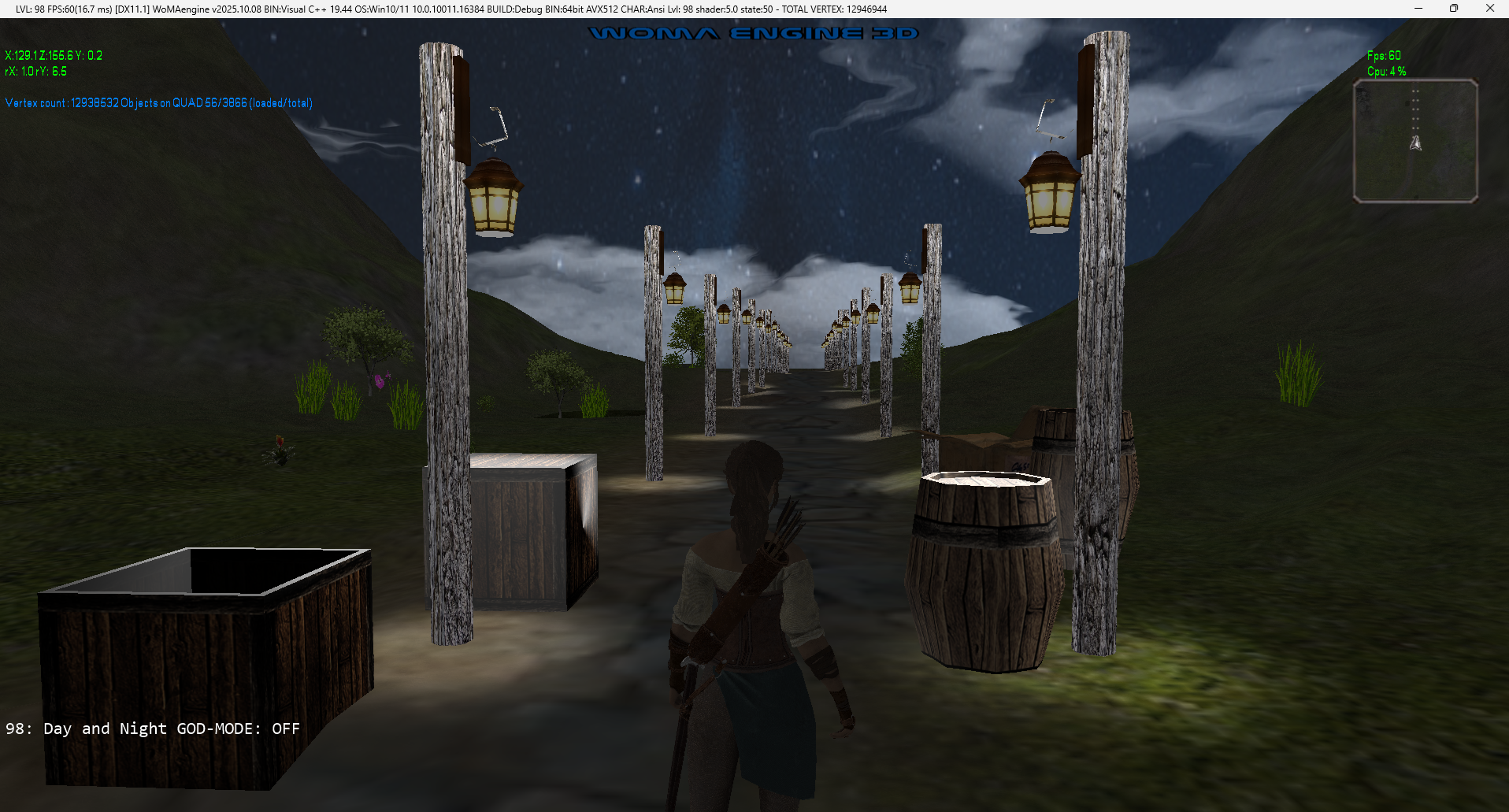

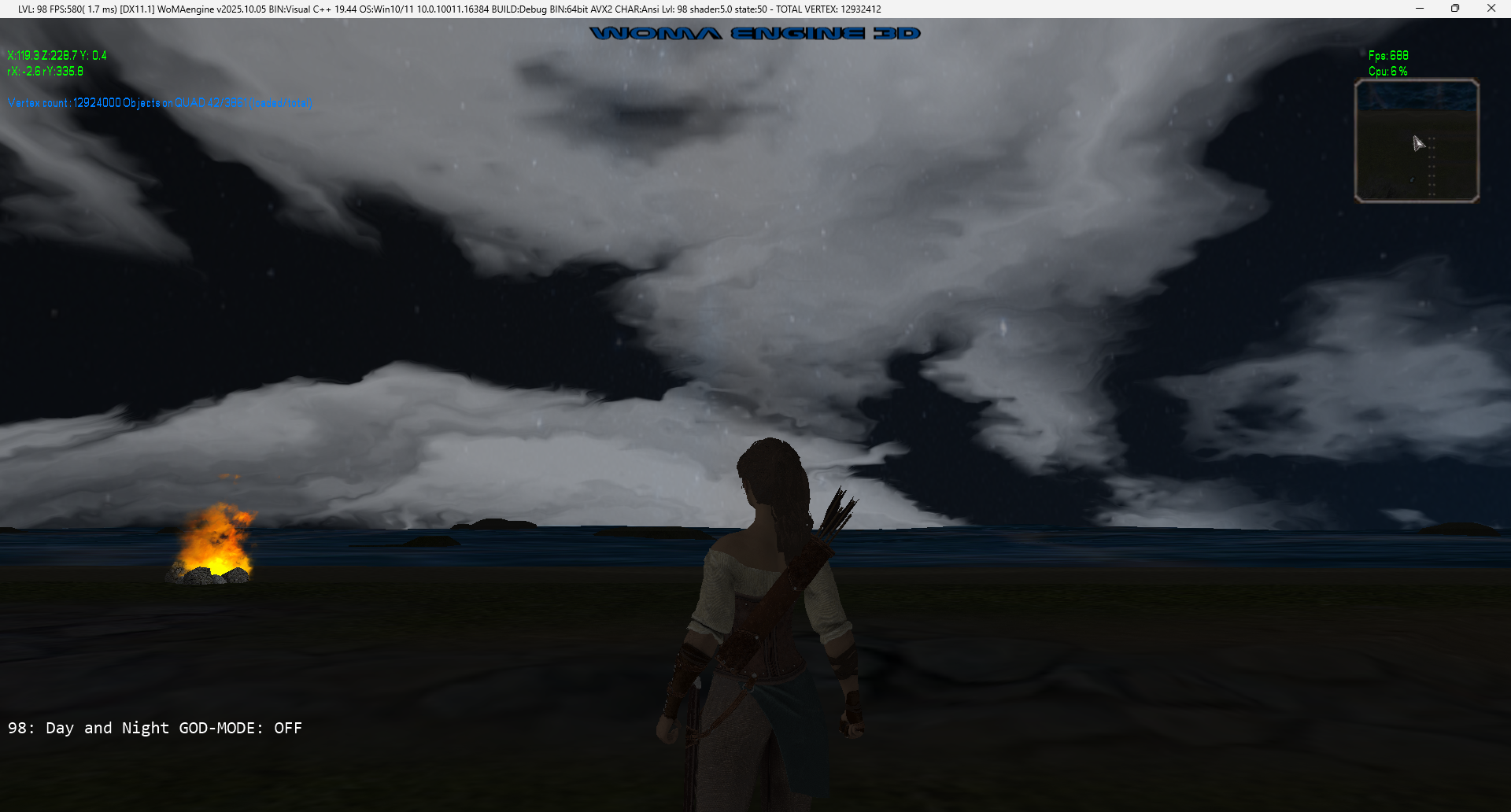

• LEVEL-98: Day and Night


---

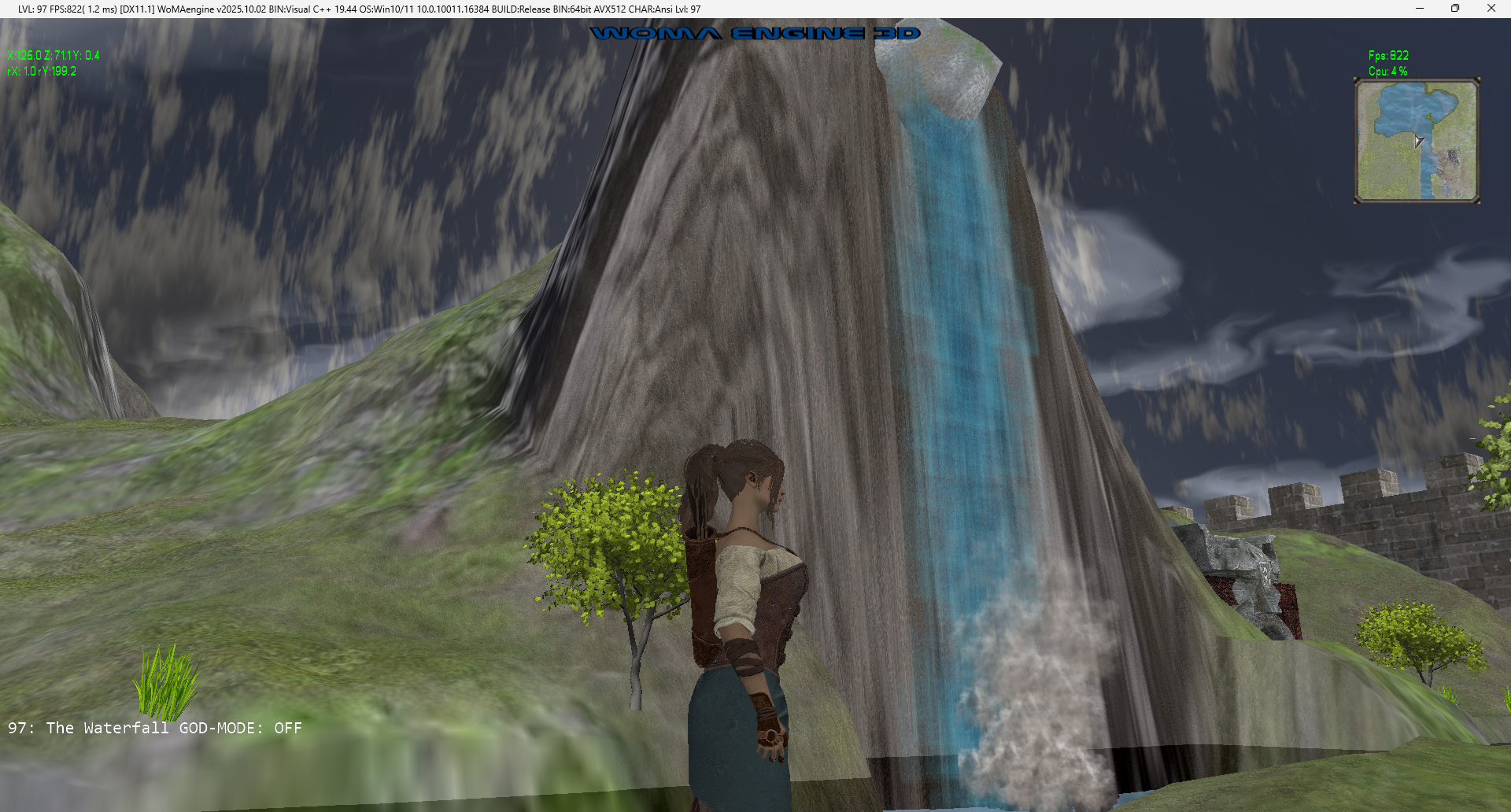

• LEVEL-97: The Waterfall

  • The water Waterfall
  • The smoke of Waterfall
  • The sound of Waterfall
  • The Dungeon Gate
  • The Sound of ocean waves

---

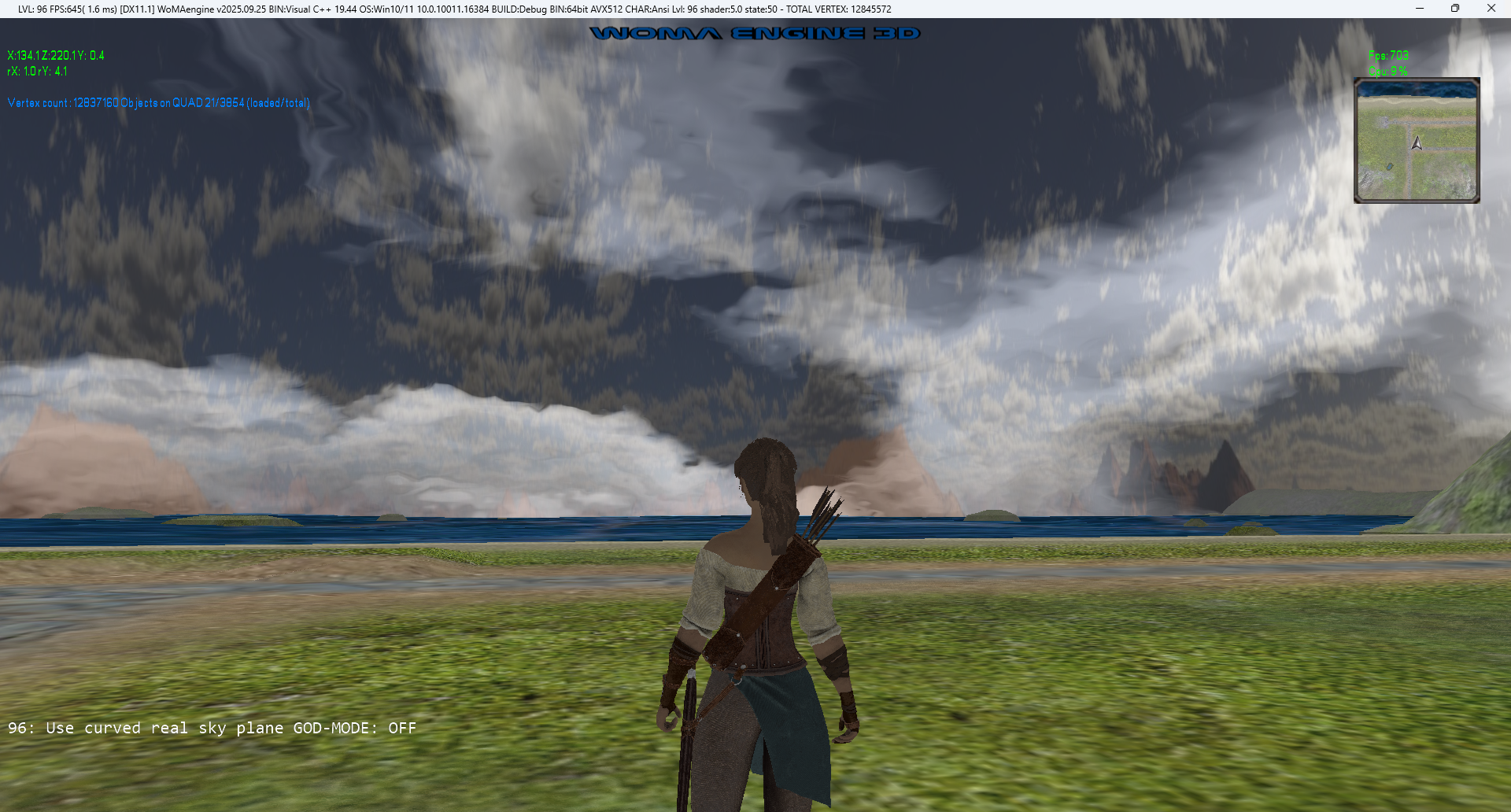

• LEVEL-96: Use curved real sky plane
  Level/Sample about how to add an external code from Rastertek.
  https://rastertek.com/tertut12.html


---

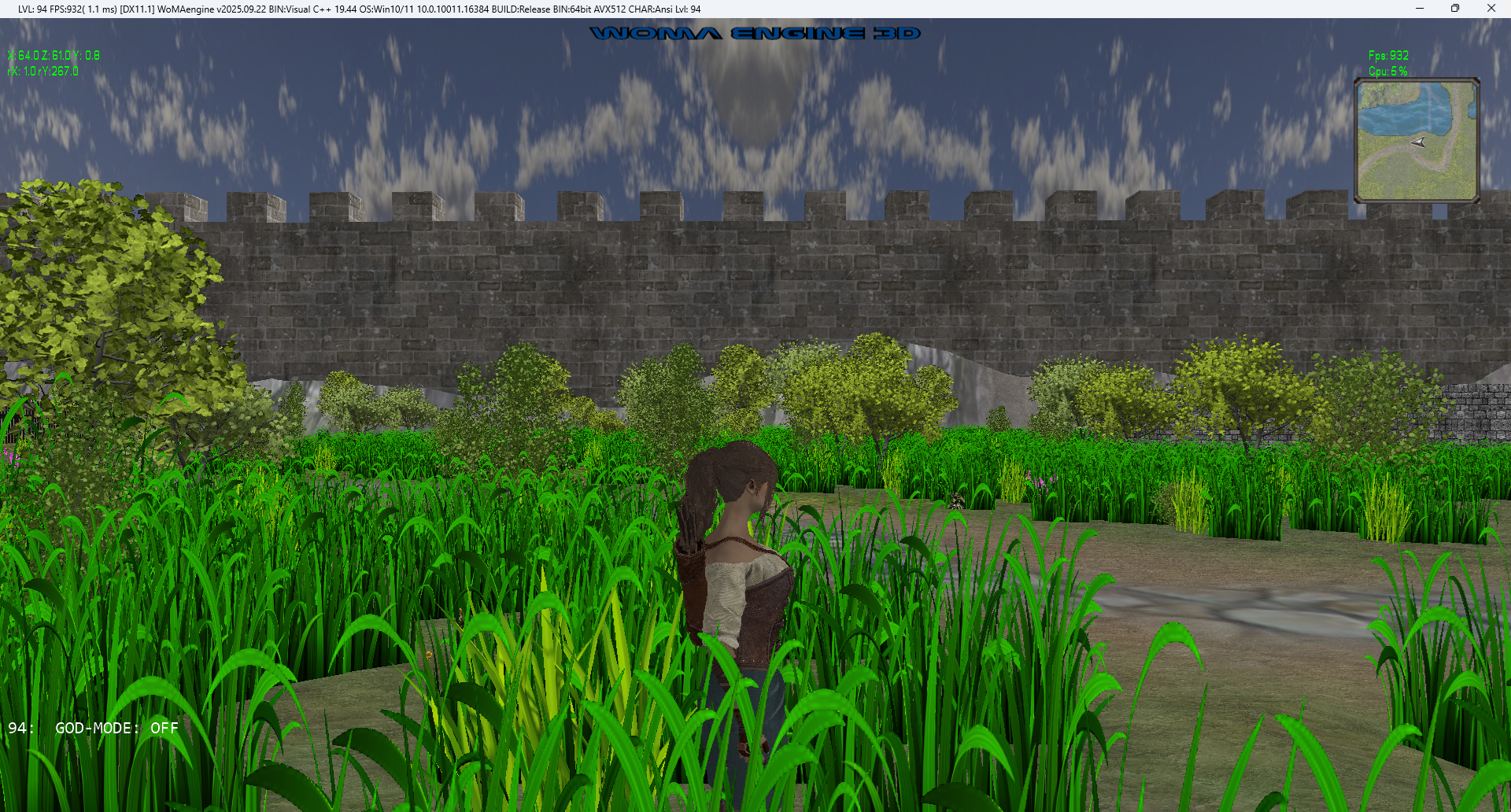

• LEVEL-94: Optimizing Dynamic memory allocation for Billboard vertices - Atlas Texture - Part 2
  Improving from 900 FPS to 930 FPS (soon)


---

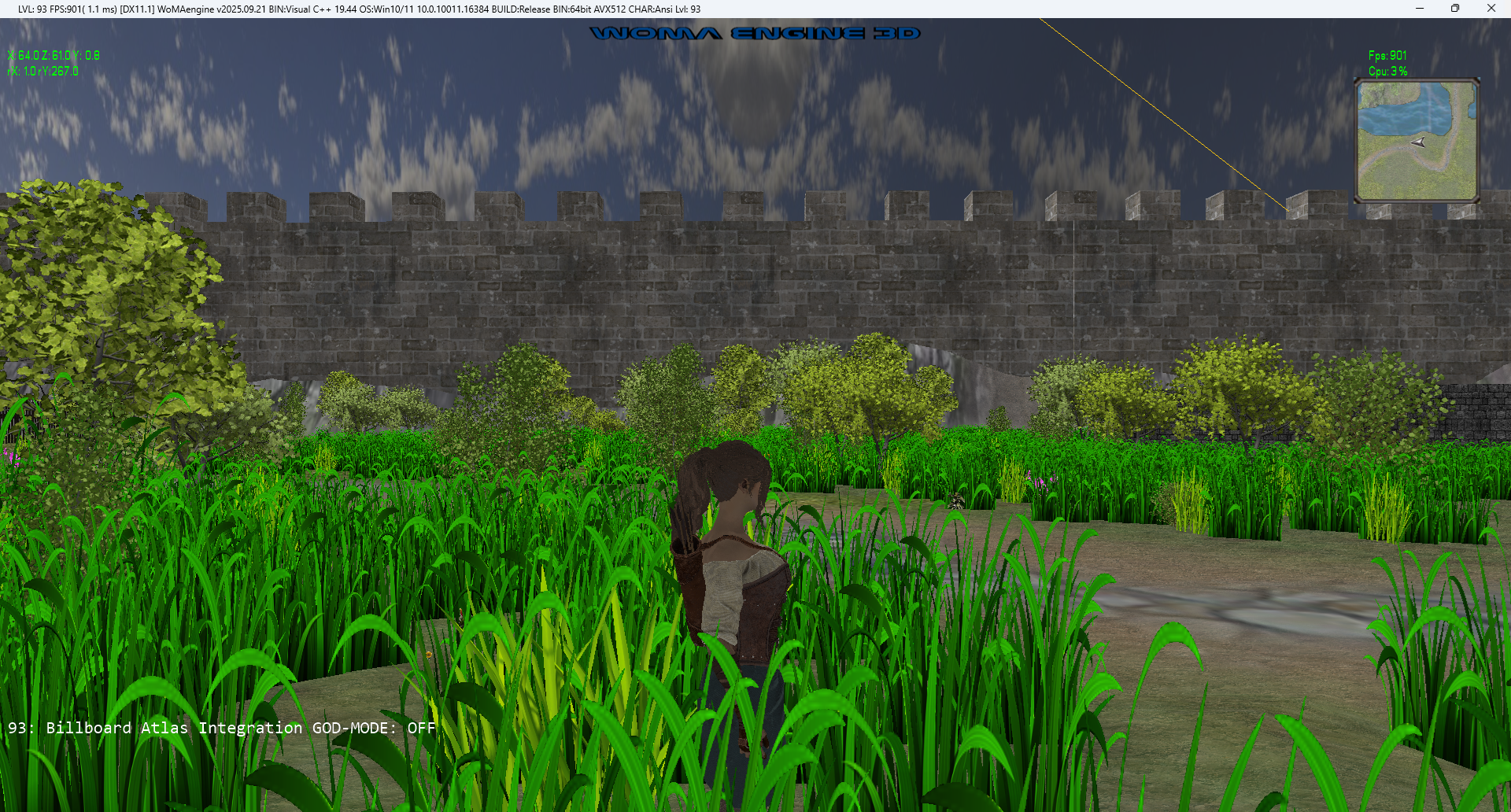

• LEVEL-93: Optimizing the Billboard objects render all in 1 obj, using - Atlas Texture - Part 1
  Improving from 850 FPS to 900 FPS.


Billboard Atlas (Automatic generated:)

---

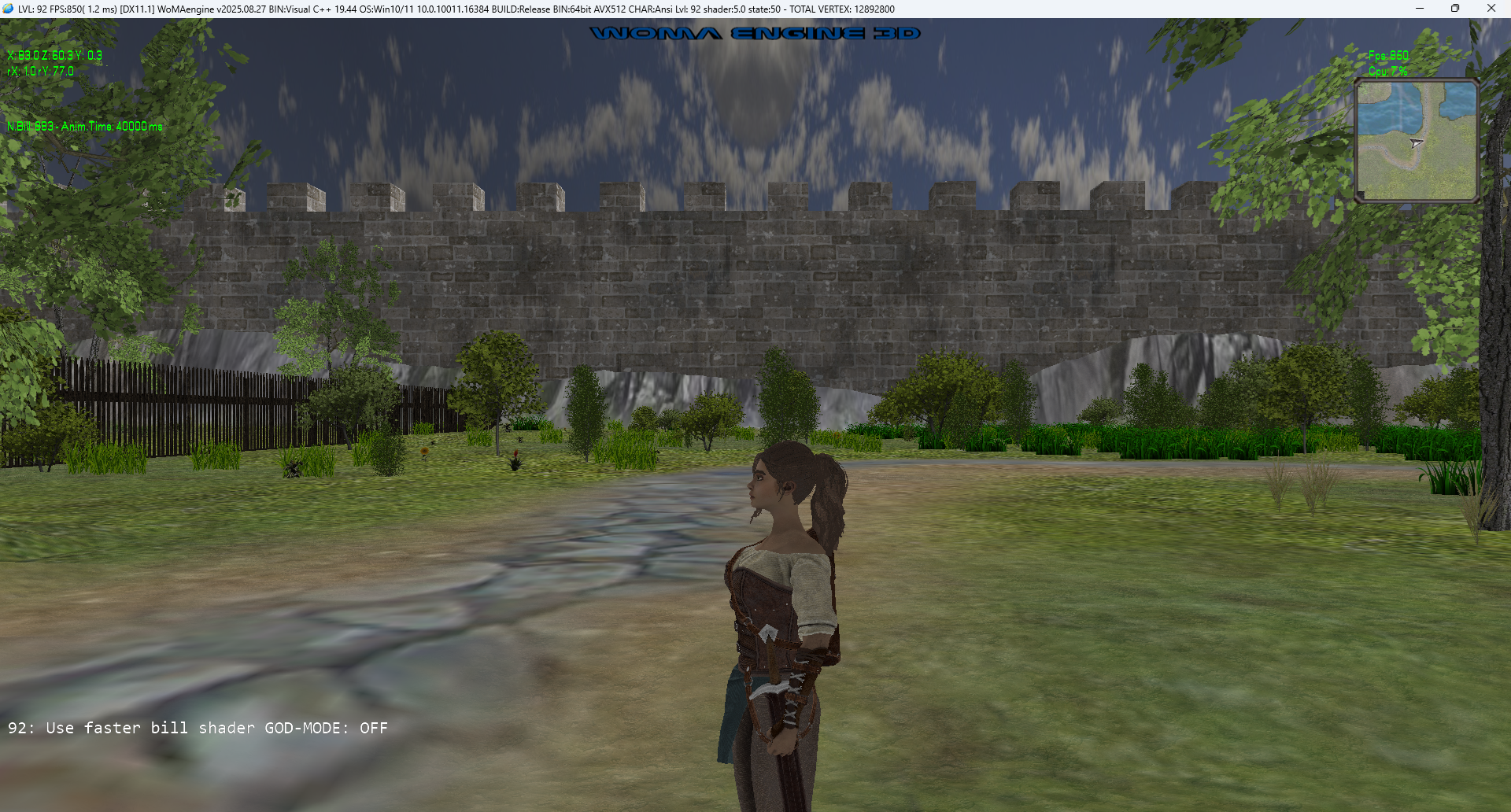

• LEVEL-92: Use from now on the modern: DX11.1
  There is a Huge list of improvements
  Improving with DX11.1 from 815 FPS to 850 FPS.


---

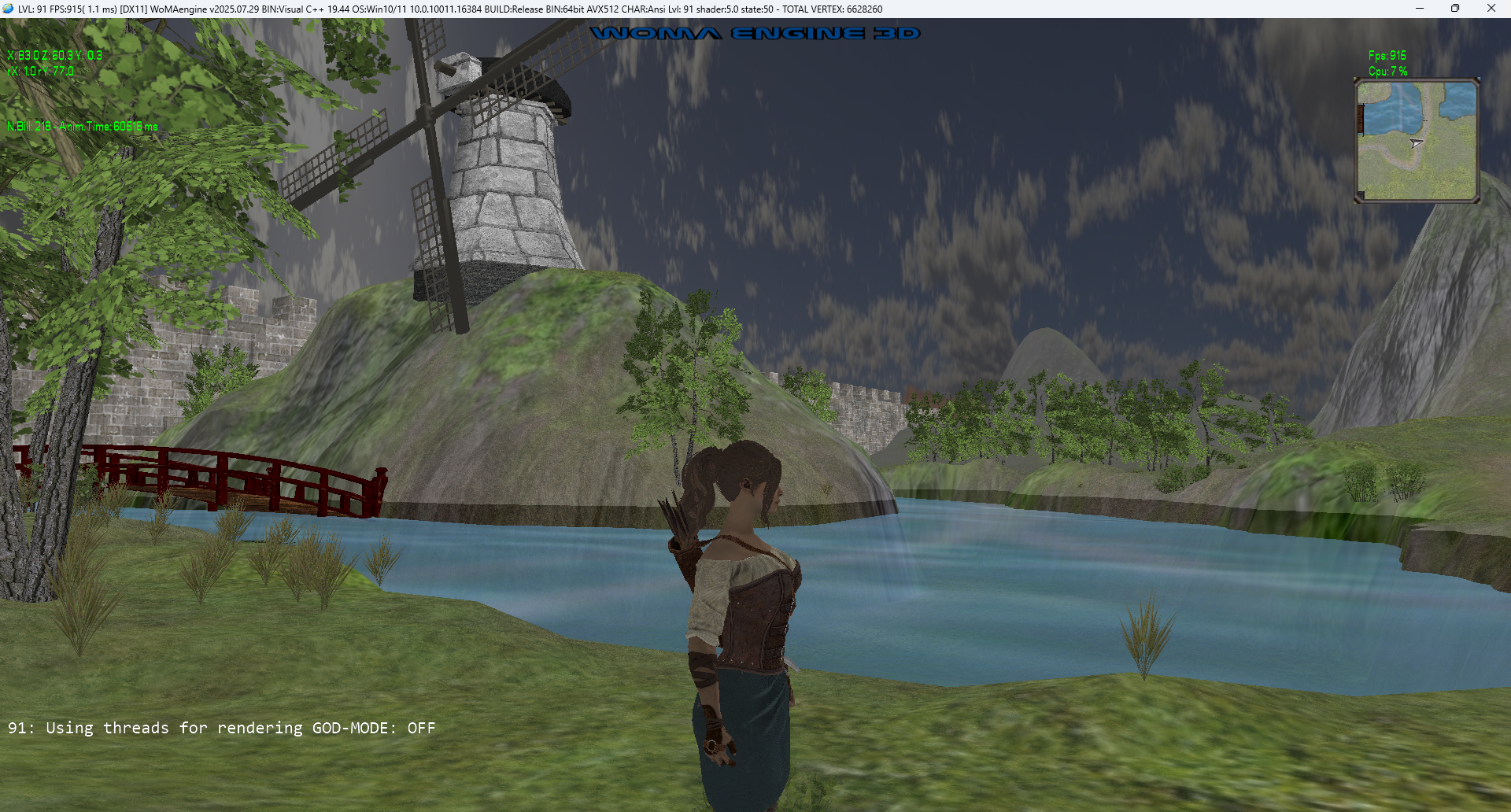

- LEVEL-91: Using threads for rendering
Improving from **760** FPS to **815** FPS.

---

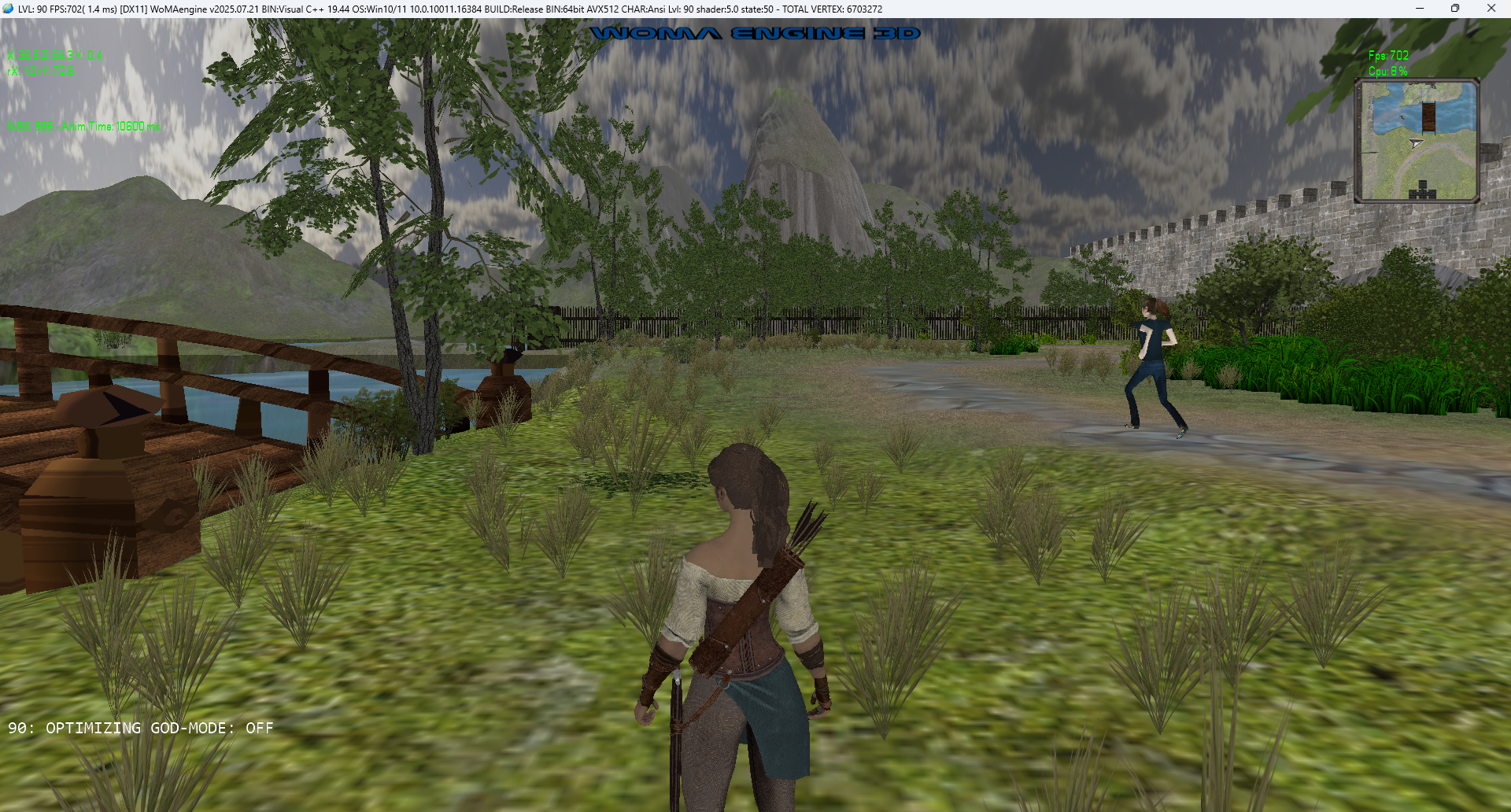

• LEVEL-90: Replacing Billboards with advanced gaming like objects(Low Poly)


---

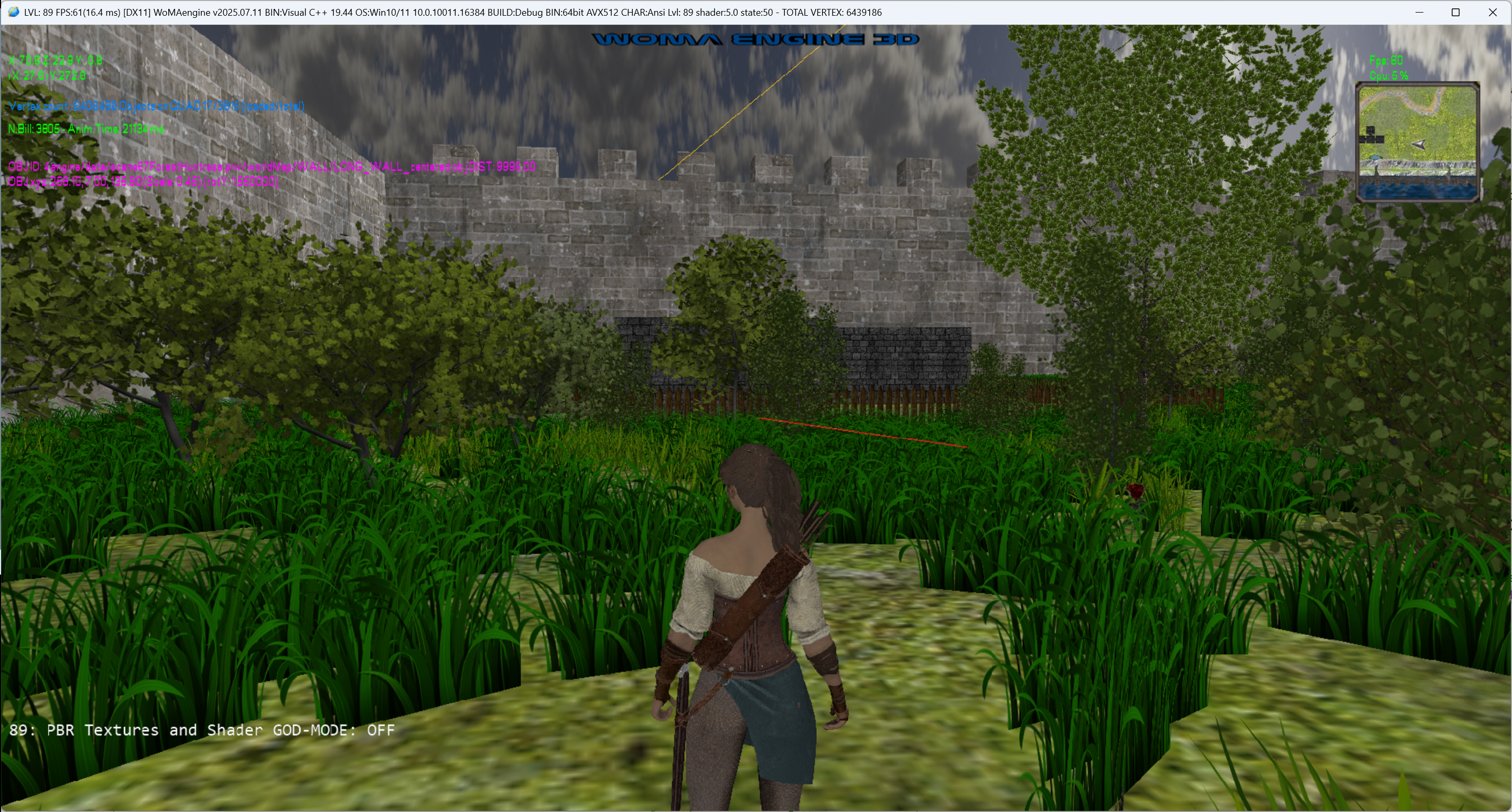

• LEVEL-89: The object Model Map Editor
  Editor Keys/Controls:

  • Mouse, select the object

  • Arrow Keys, move left and right, front and back. (NOTE: use shift to do a minor movements)

  • PgUp and PgDown, move up and down. (NOTE: use shift to do a minor movements)

  • Numpad-4 and Numpad-6, rotate the object.

  • "+" and "-", Scale it.
    Then update the "world.xml" with the new positions shown on screen.
    NOTE: Use GodMode toggle: F11 to have a better view.


---

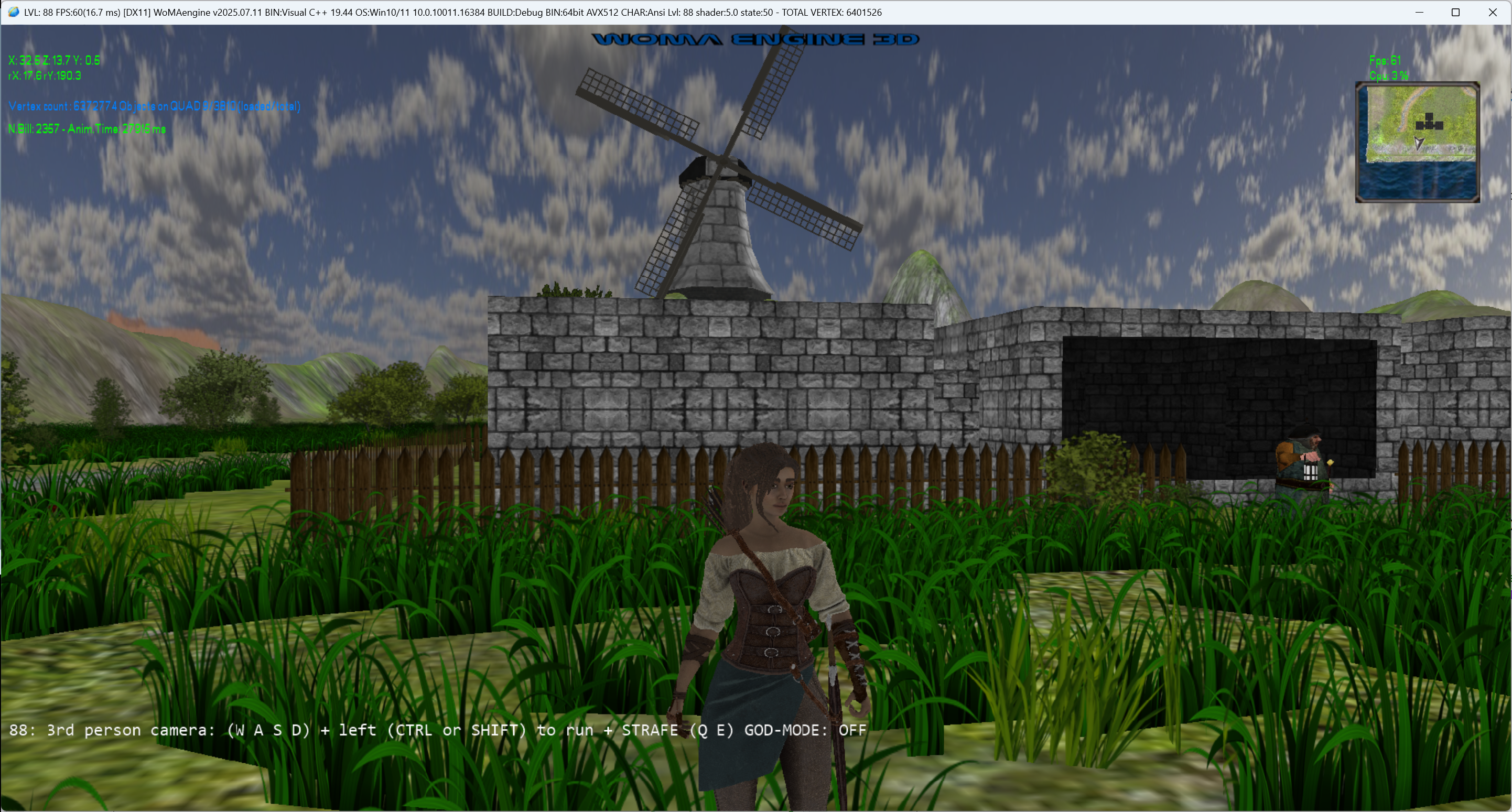

- LEVEL-88: USE_3RD_PERSON_CAMERA
3rd person camera: (W A S D) + left (CTRL or SHIFT) to run + STRAFE (Q E):
Key 1: Draw sword

---

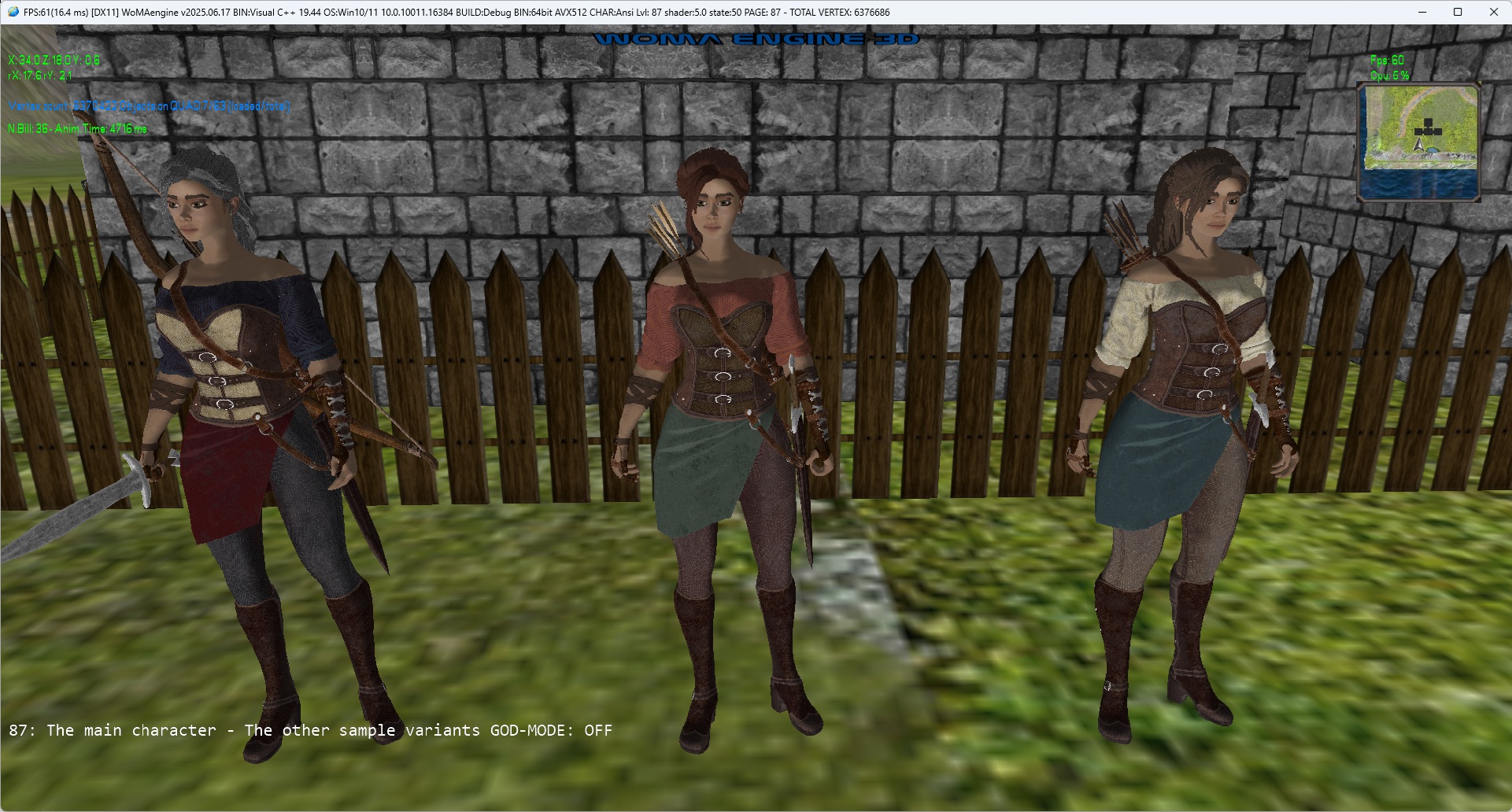

• LEVEL-87: THE MAIN CHARACTER - The other sample variants
  Using animation:

  • Idle, Idle2, Idle3 for each variant.

---

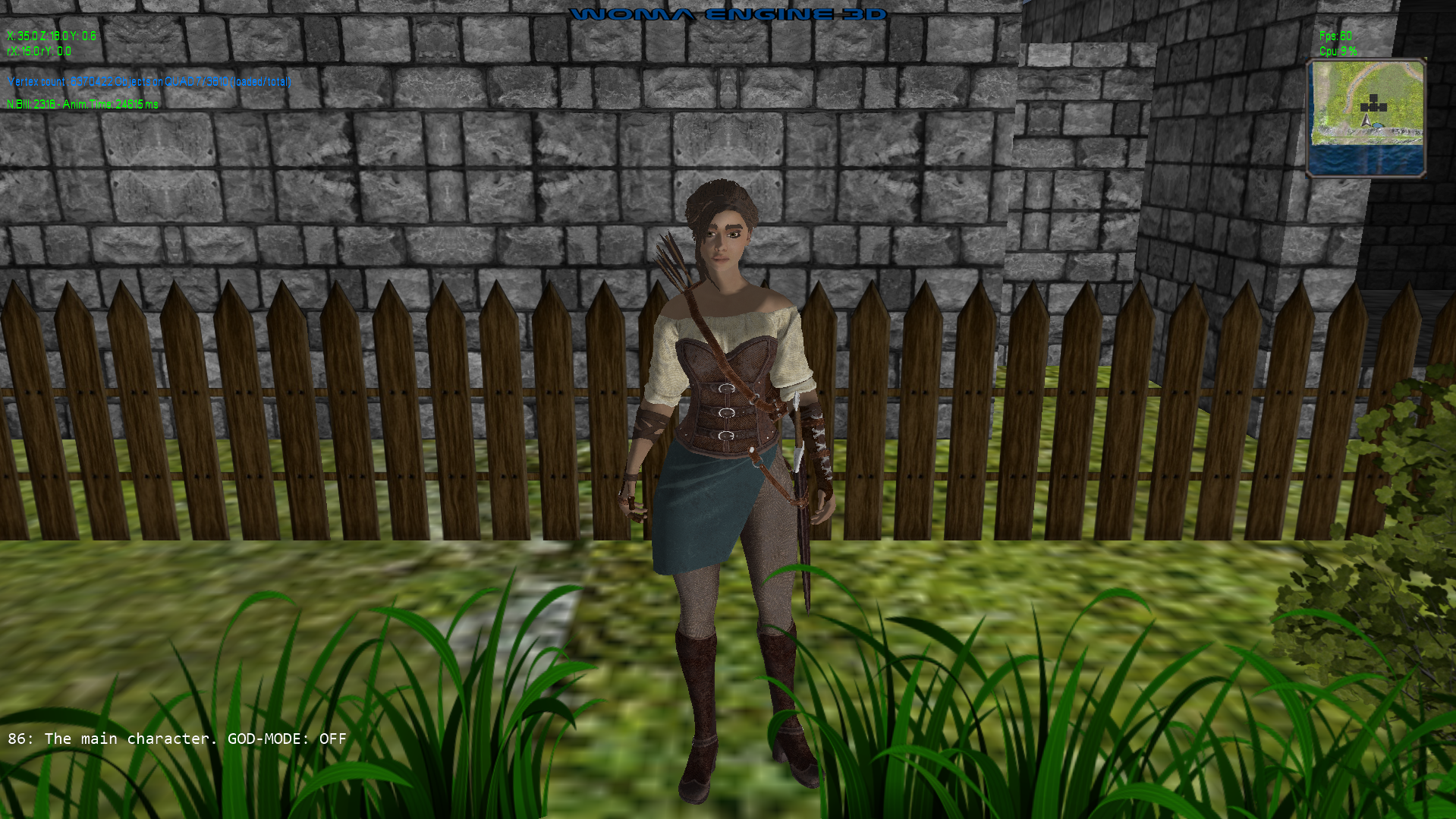

• LEVEL-86: The main character (With idle animation)
  Later: (and much more) Multi animation Character: 33
  • Attack(3)
  • Idle(3)
  • Walk(3)
  • Walk back (3)
  • Walk left (3)
  • Walk right (3)
  • Run (3)
  • Death (3)
  • Hide weapon (2)
  • Draw weapon (2)
  • Get hit (2)
  • Jump (3)

  (Art/Animation Credits: Palasky)

---

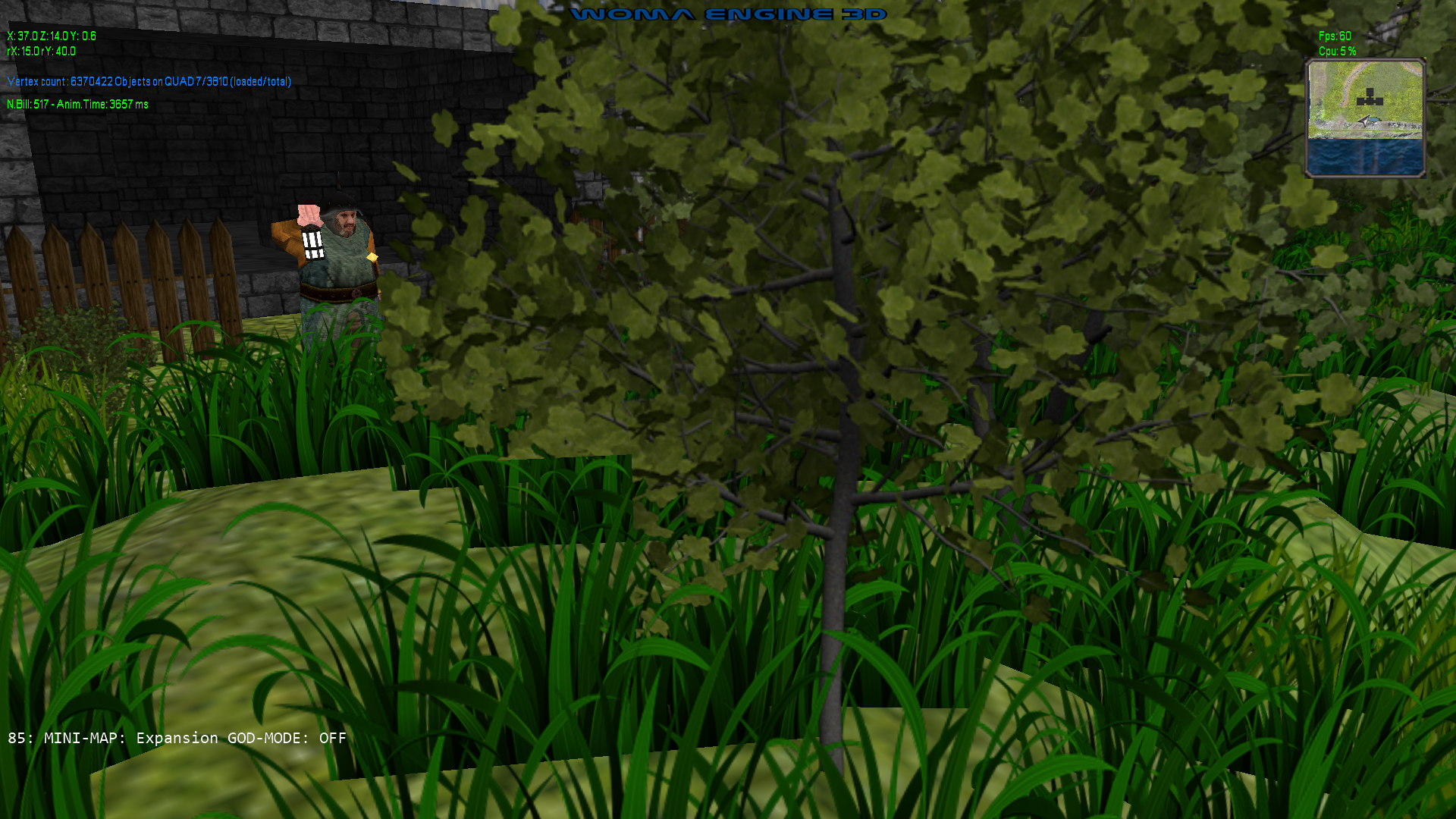

• LEVEL-85: Expand MiniMap


---

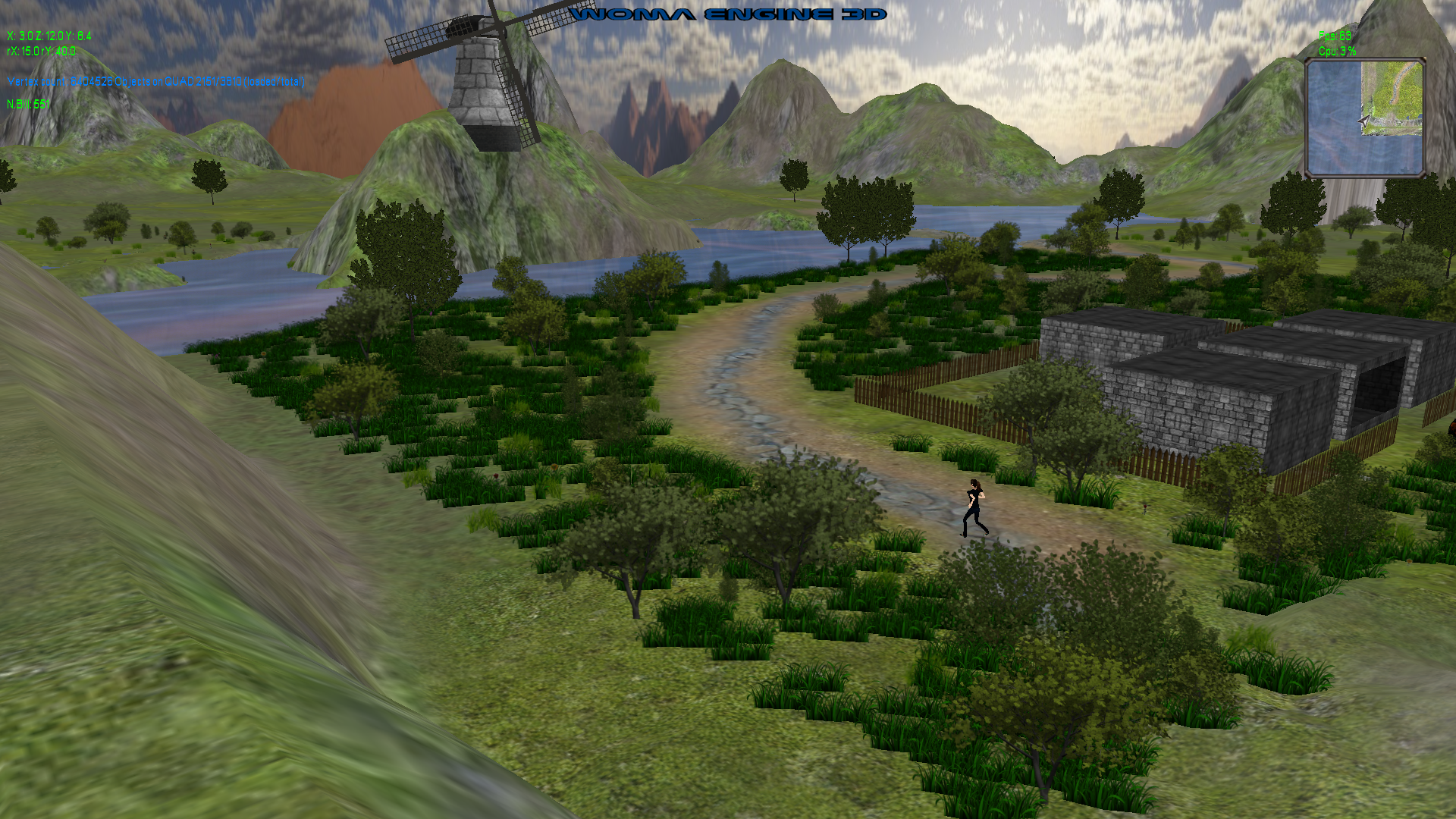

- LEVEL-84: ASSIMP: Animated / walking mesh on the terrain, following a path:

---

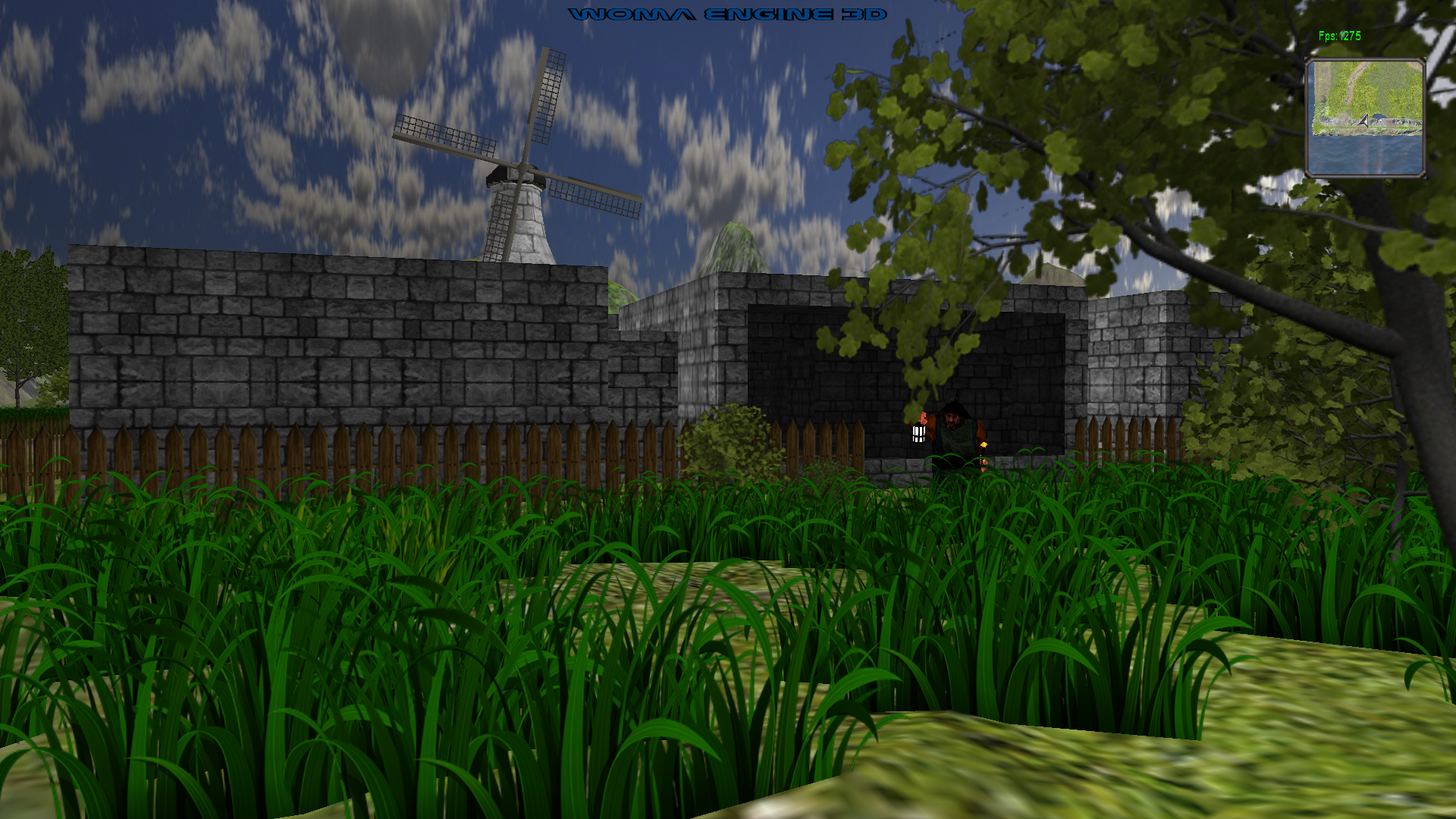

• LEVEL-83: ASSIMP: Update billboard shader:


RELEASE version (1920x1080 Fullscreen) - about 1070 FPS (using AVX2) @target WIN10
RELEASE version (1920x1080 Fullscreen) - about 1321 FPS (using AVX512) @target WIN11

---

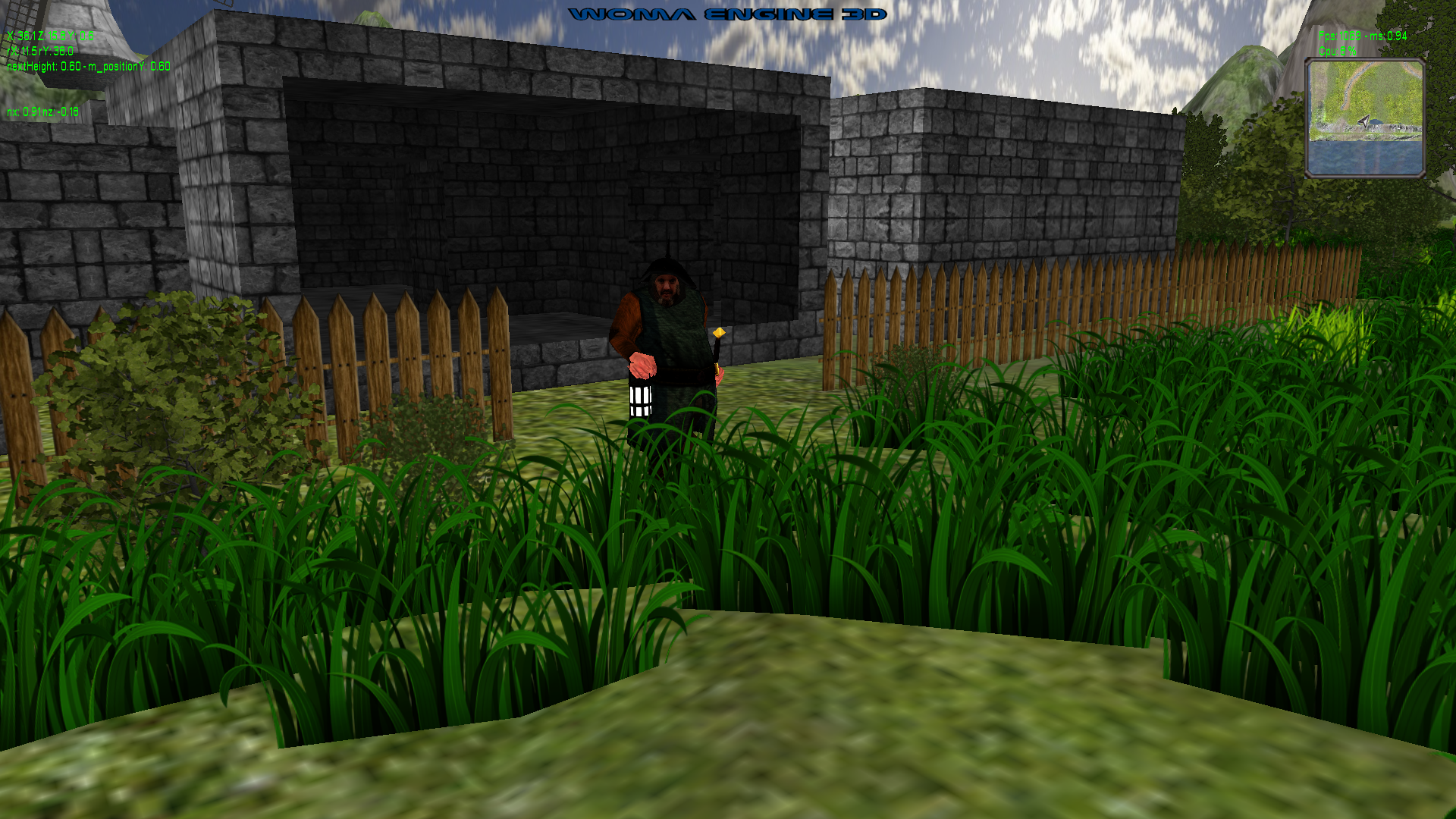

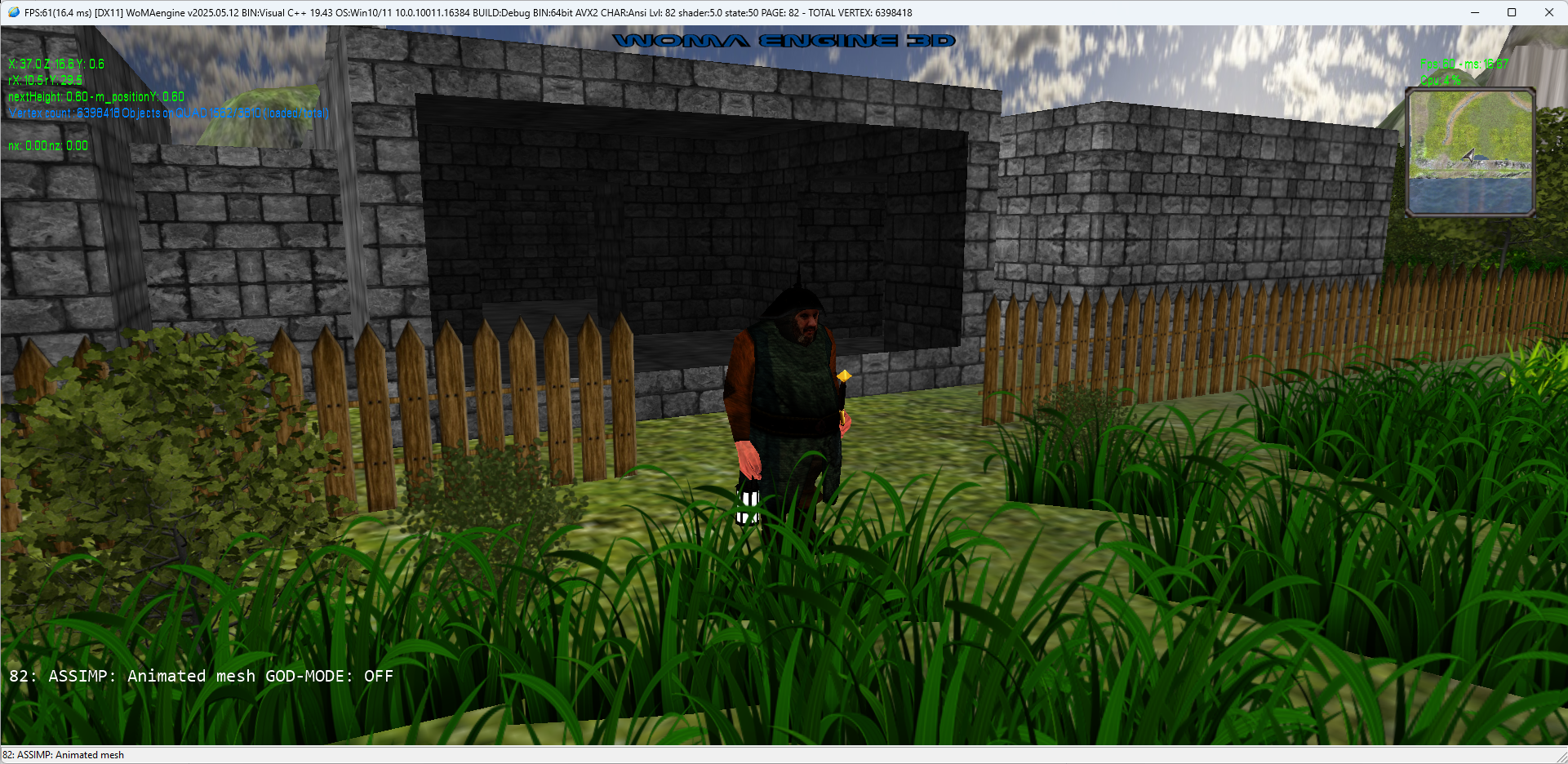

• LEVEL-82: ASSIMP: Loading an animated mesh:


DEBUG version:

RELEASE version - about 1070 FPS (using AVX512):

---

3D - ADVANCED MESH TUTORIAL SERIES: END

---

---

3D - INTERMEDIATE TUTORIAL SERIES

---

---

3D - BILLBOARD TUTORIAL SERIES: BEGIN

---

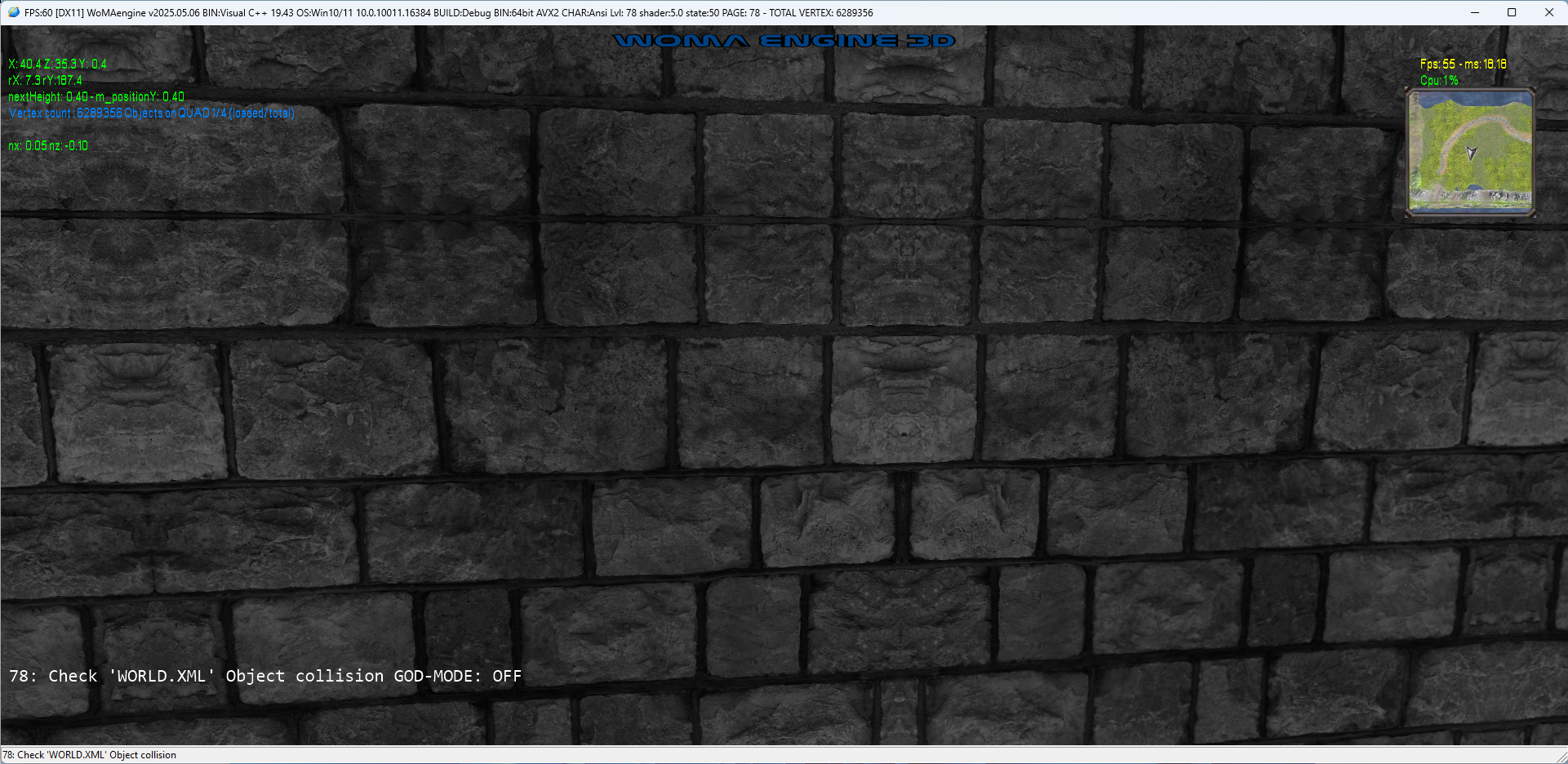

• LEVEL-78: Colision detection with objects


---

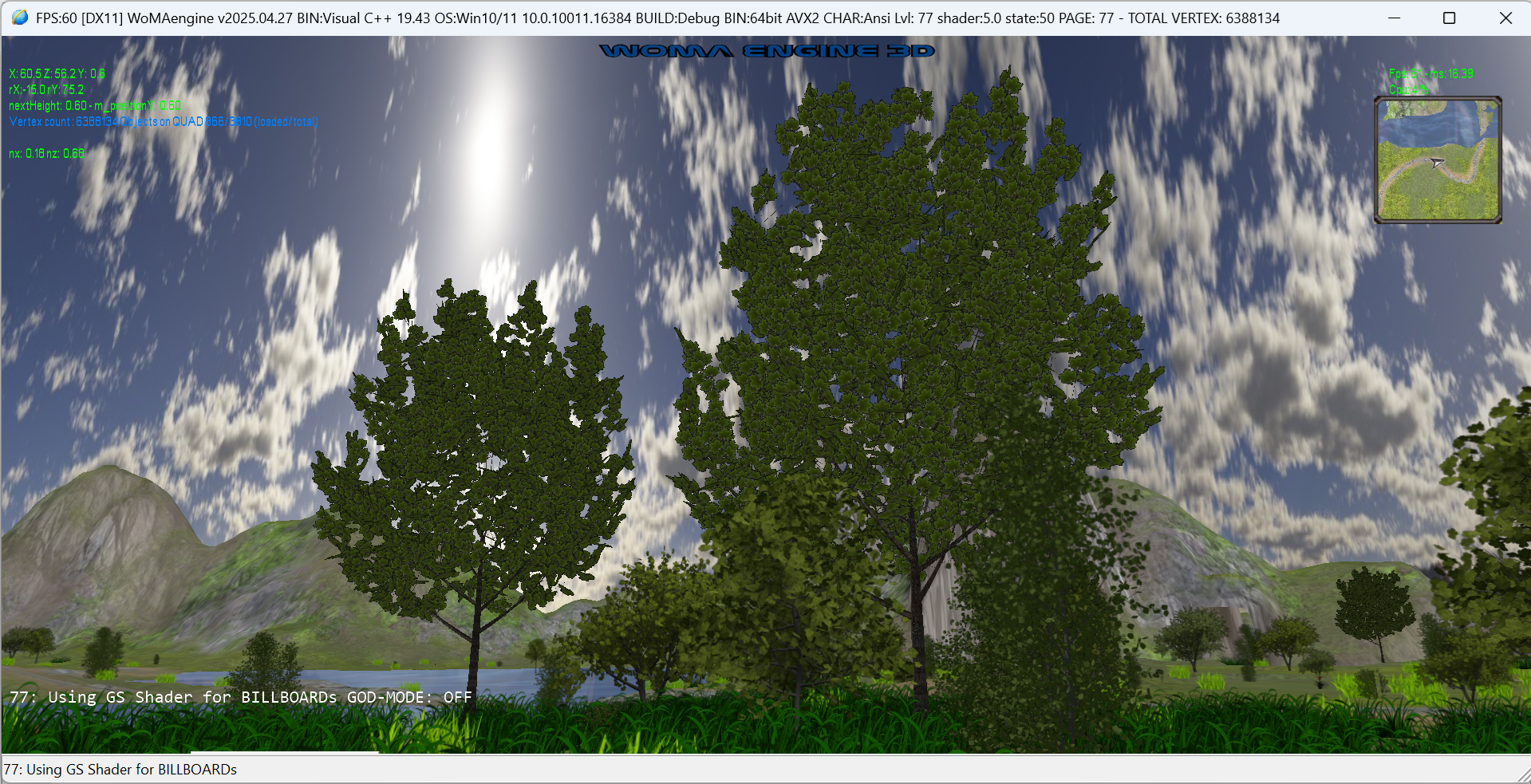

• LEVEL-77: Using instances for TREEs


---

• LEVEL-76: UTIL: INTRO VIDEO DEMO (Play: MP4)


---

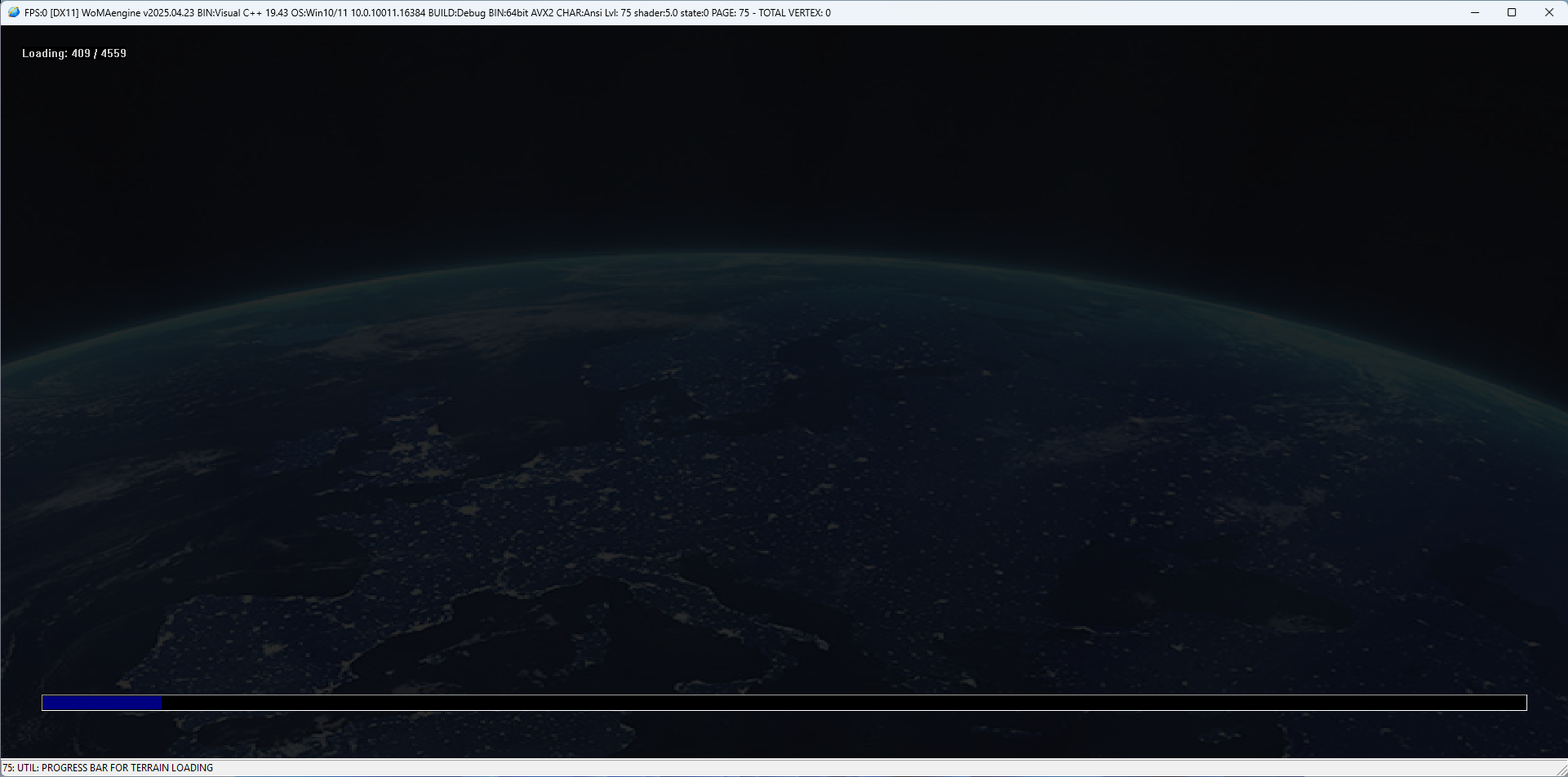

• LEVEL-75: UTIL: PROGRESS BAR FOR TERRAIN LOADING


---

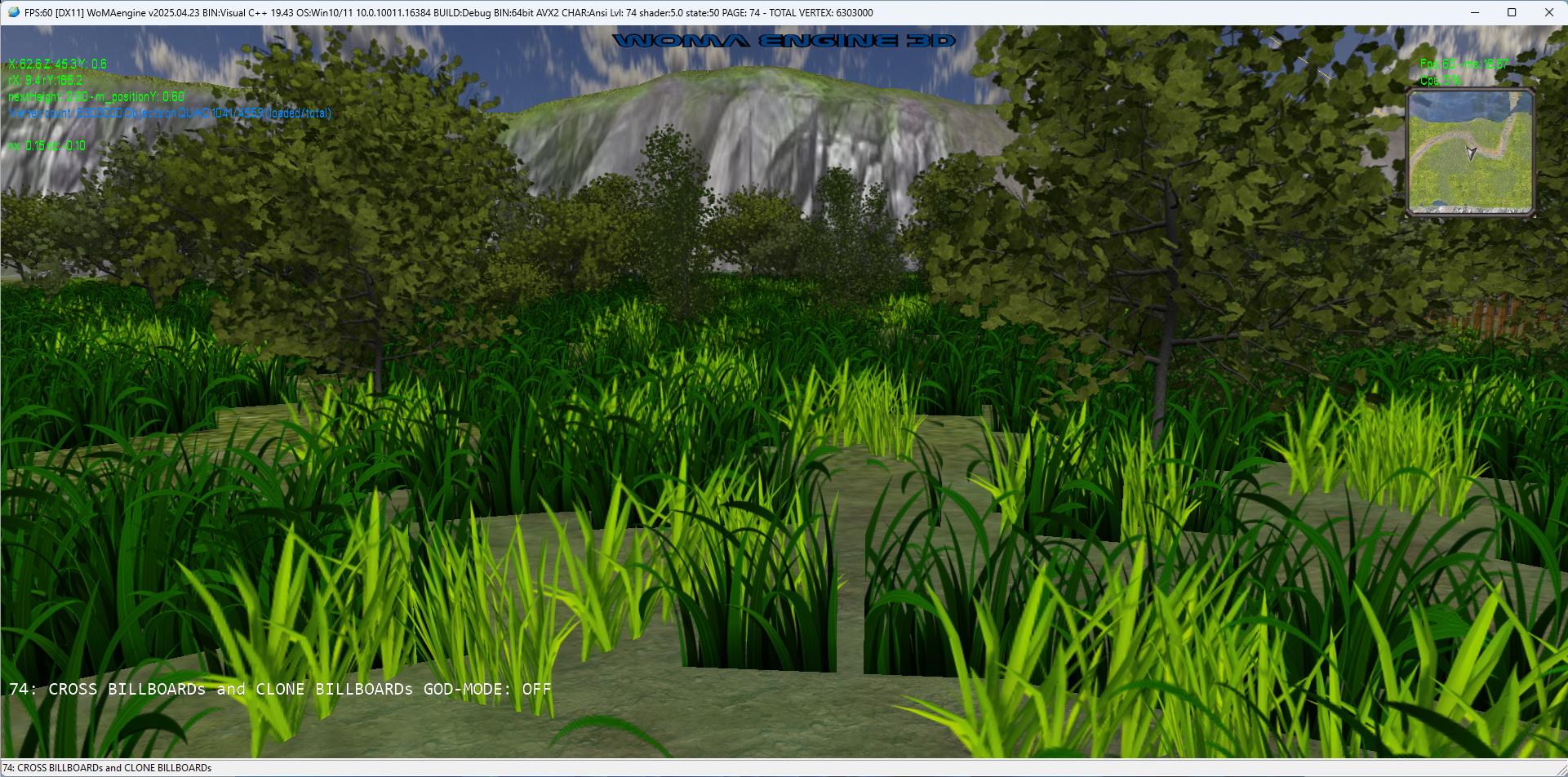

• LEVEL-74: CROSS BILLBOARDs and CLONEs


---

• LEVEL-73: GRASS - TYPE I


---

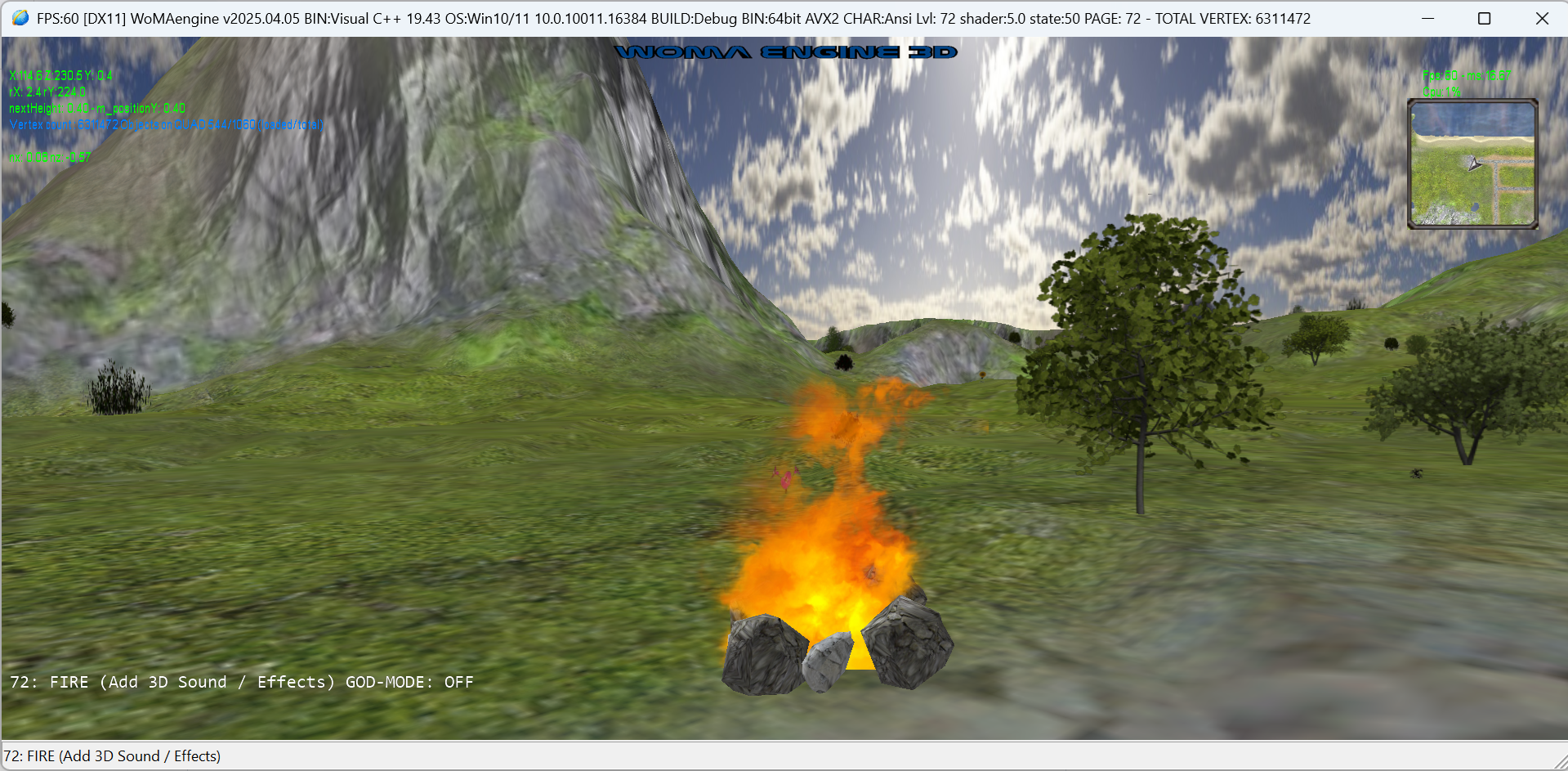

• LEVEL-72: FIRE (Add 3D Sound / Effects.)


---

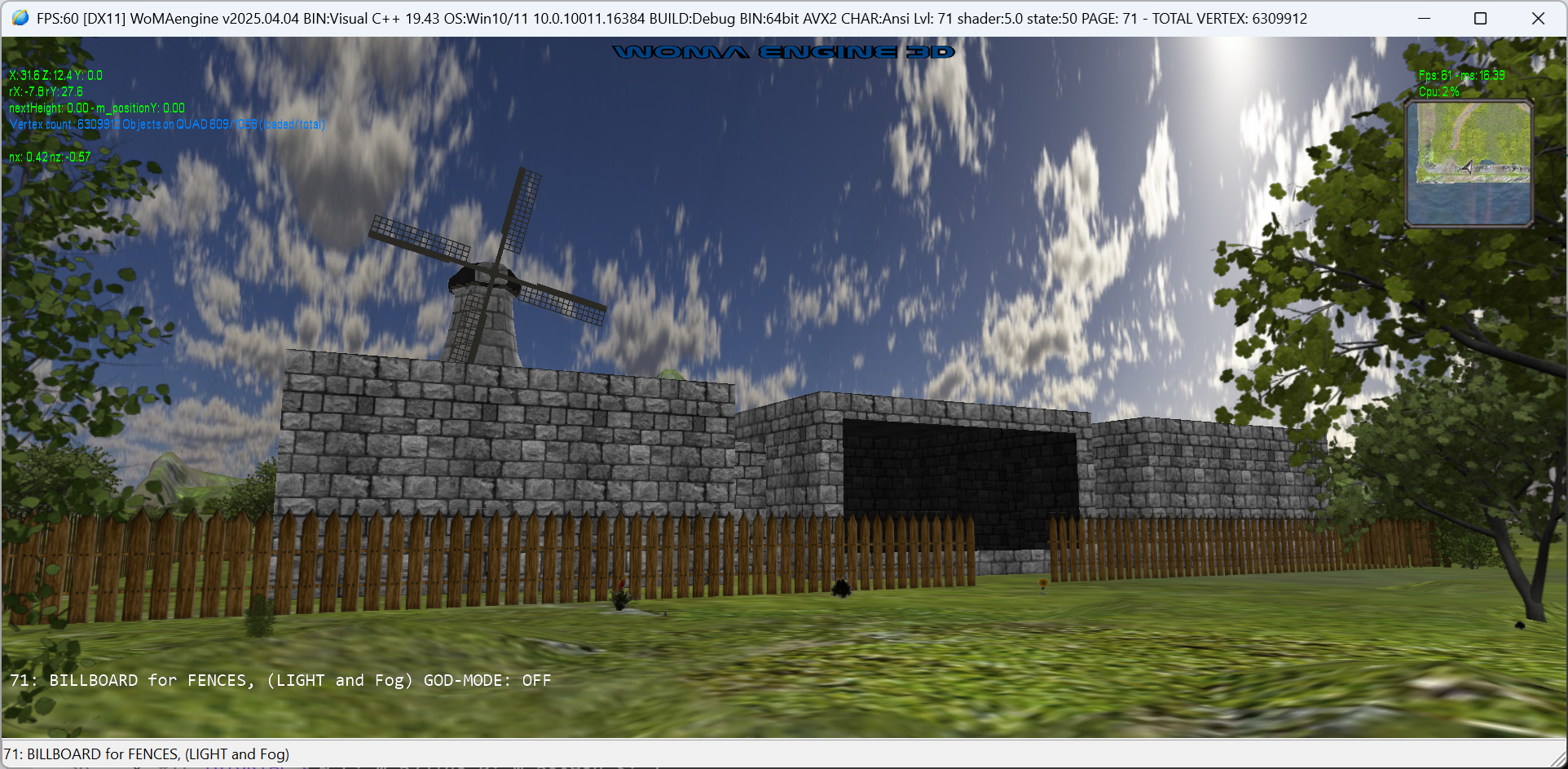

• LEVEL-71: BILLBOARD for FENCES


---

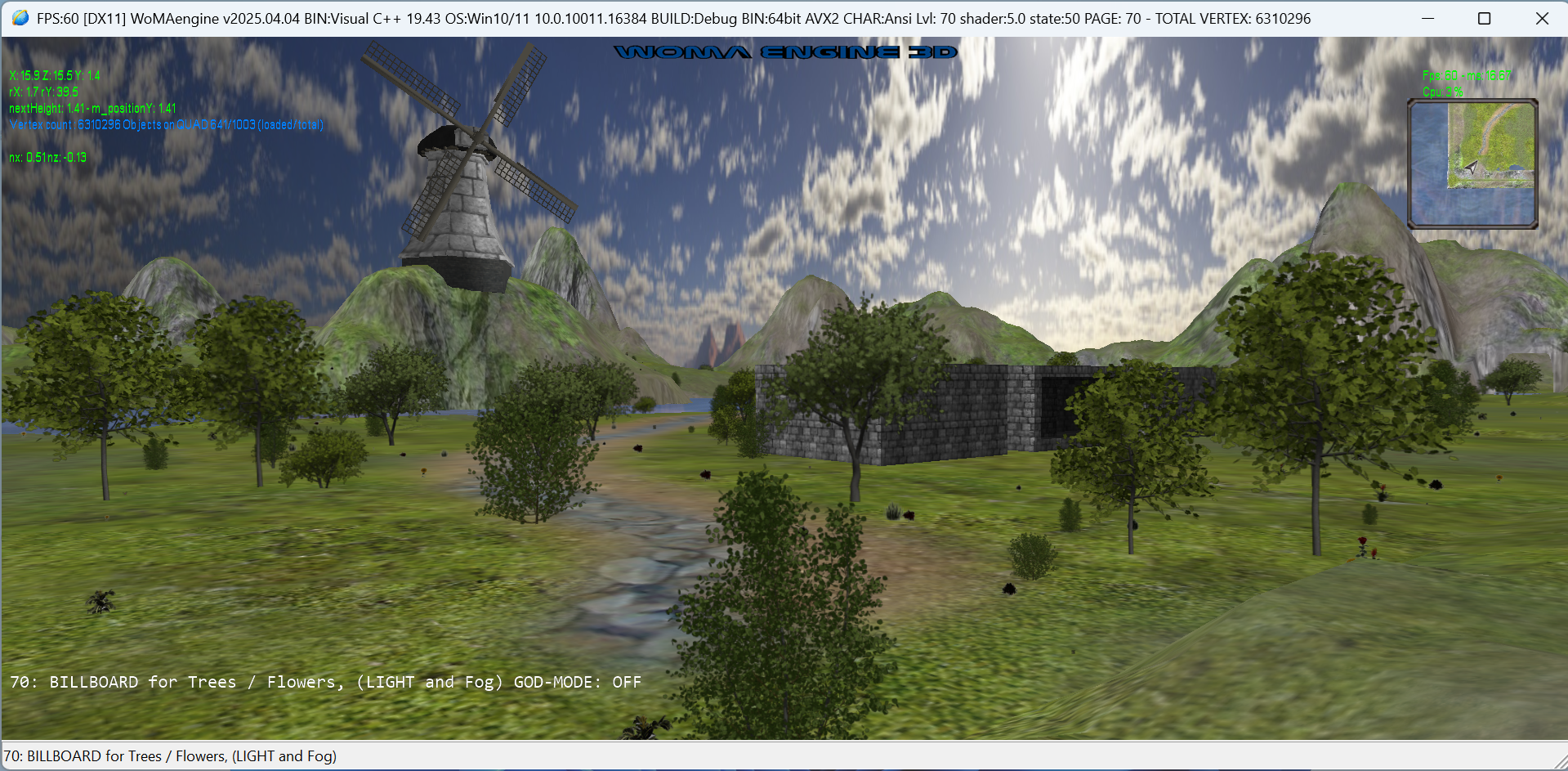

• LEVEL-70: BILLBOARD for Trees / Flowers


---

---

3D - BILLBOARD TUTORIAL SERIES: END

---

---

3D - TERRAIN TUTORIAL SERIES: START

---

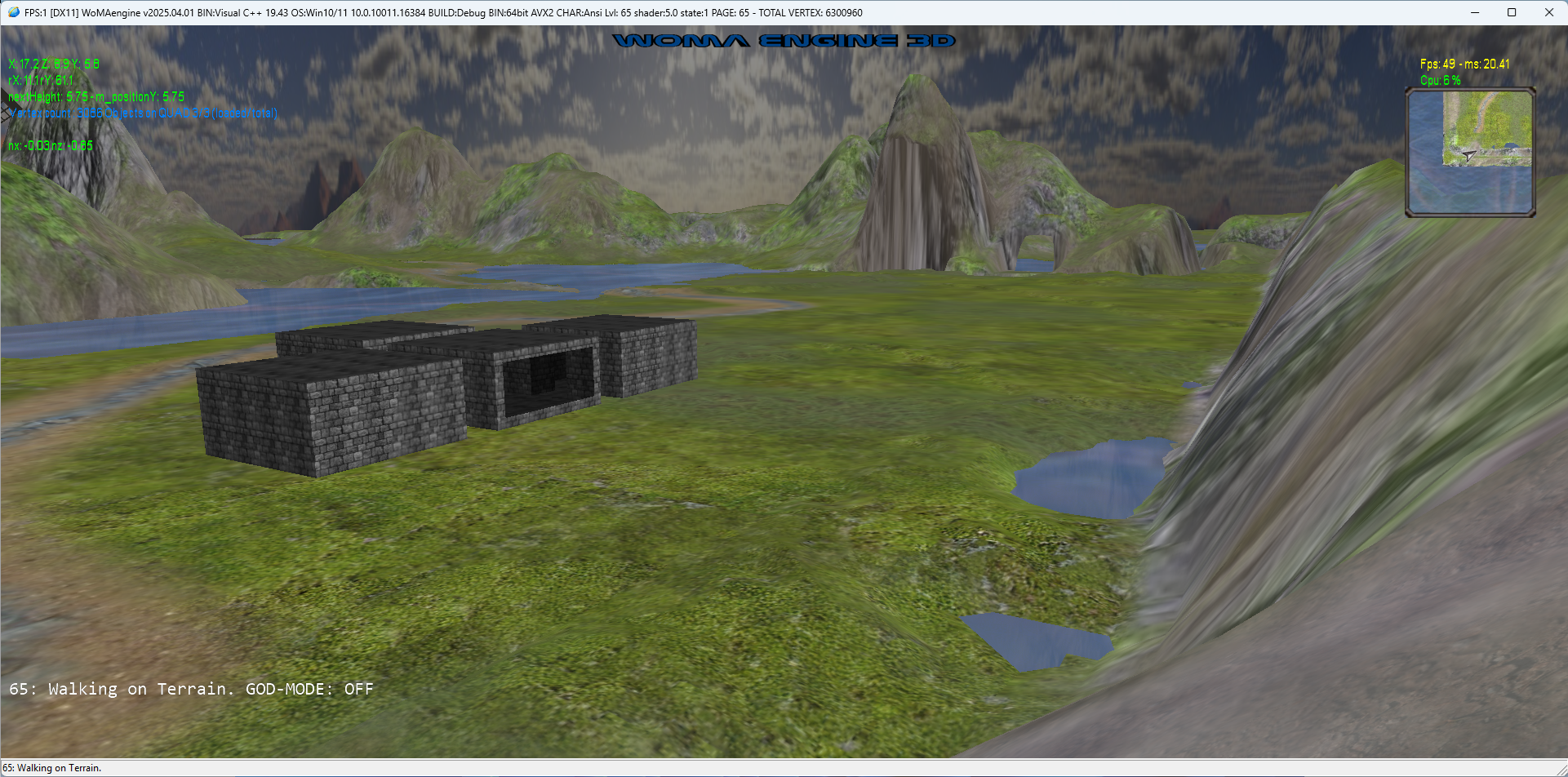

• LEVEL-65: WORLD.XML: TERRAIN: Walking on Terrain.


---

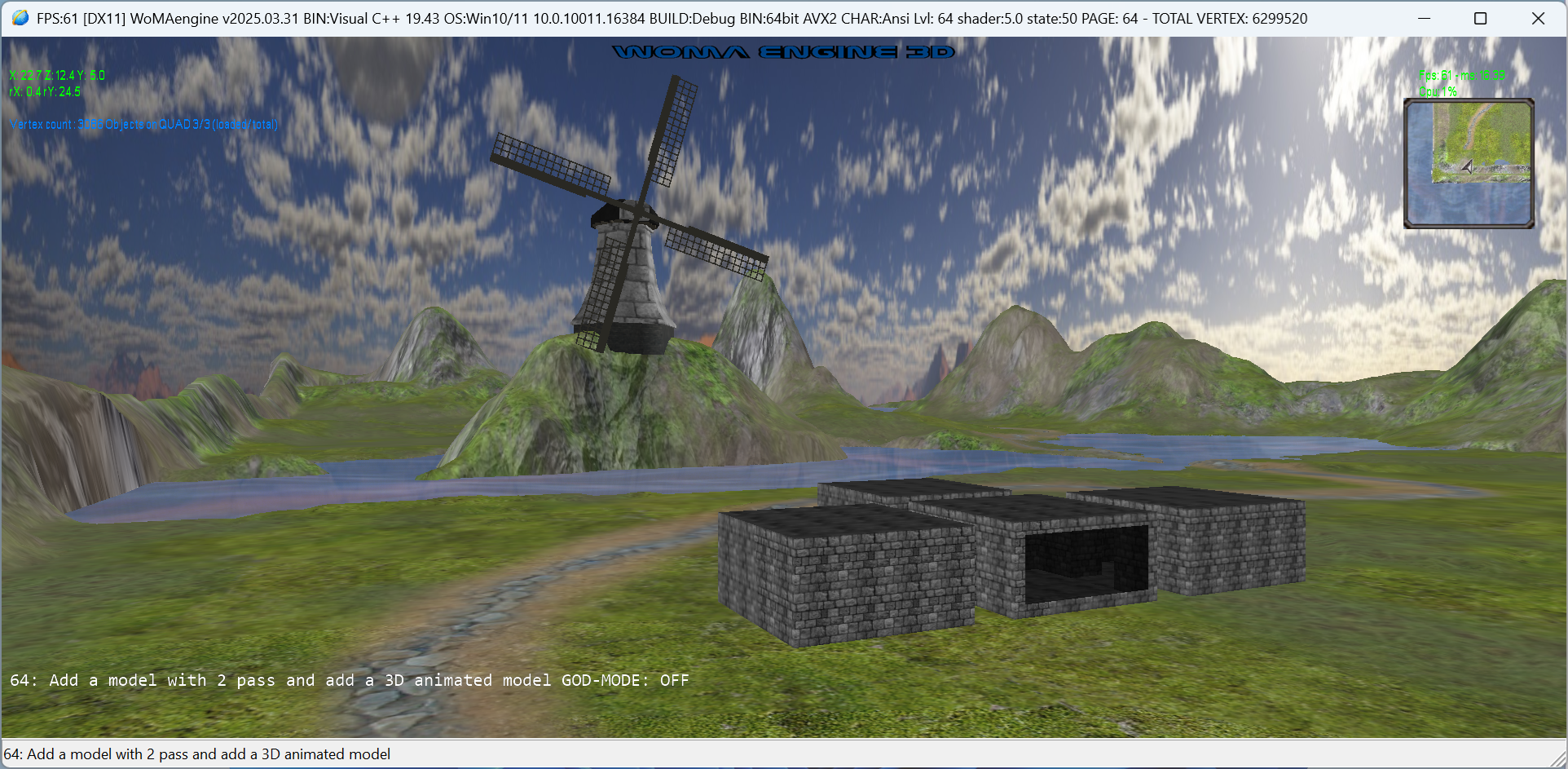

- LEVEL-64: WORLD.XML: TERRAIN: Add a model with 2 pass and add a 3D static animated model

---

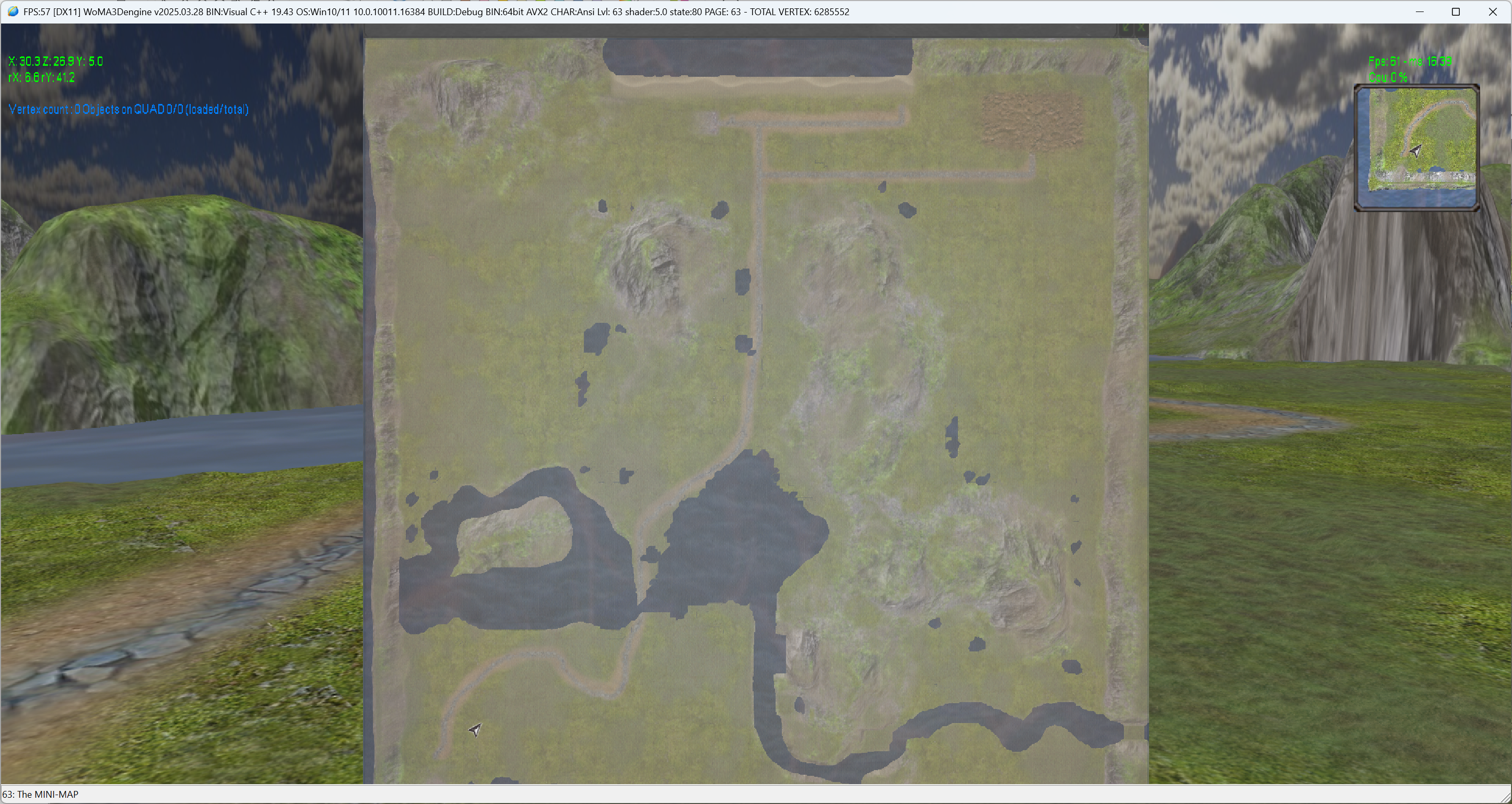

- LEVEL-63: WORLD.XML: TERRAIN: MAIN-MAP and MINI-MAP

---

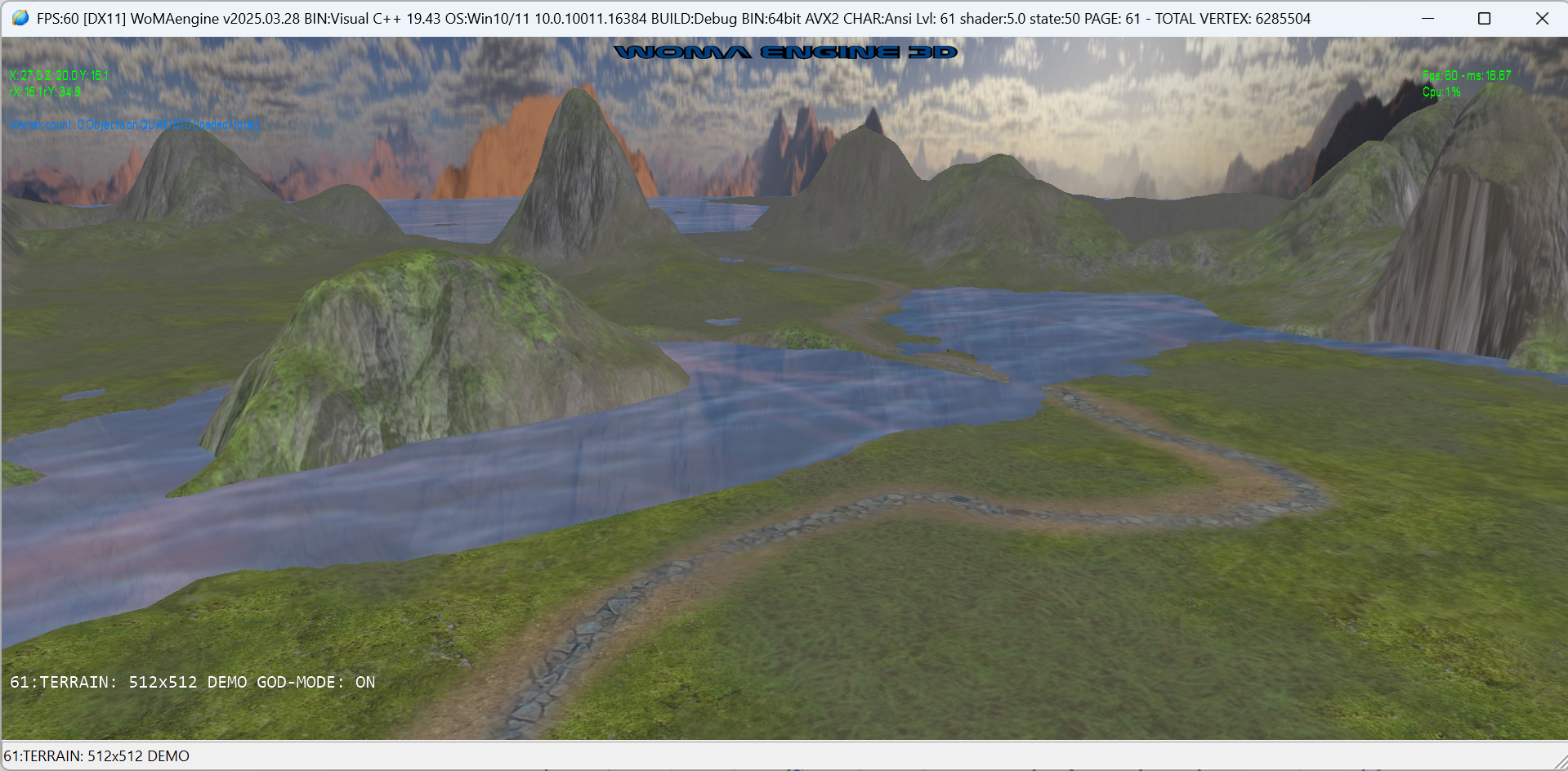

- LEVEL-61: WORLD.XML: TERRAIN: 256x256 MULTI-LAYER DEMO

---

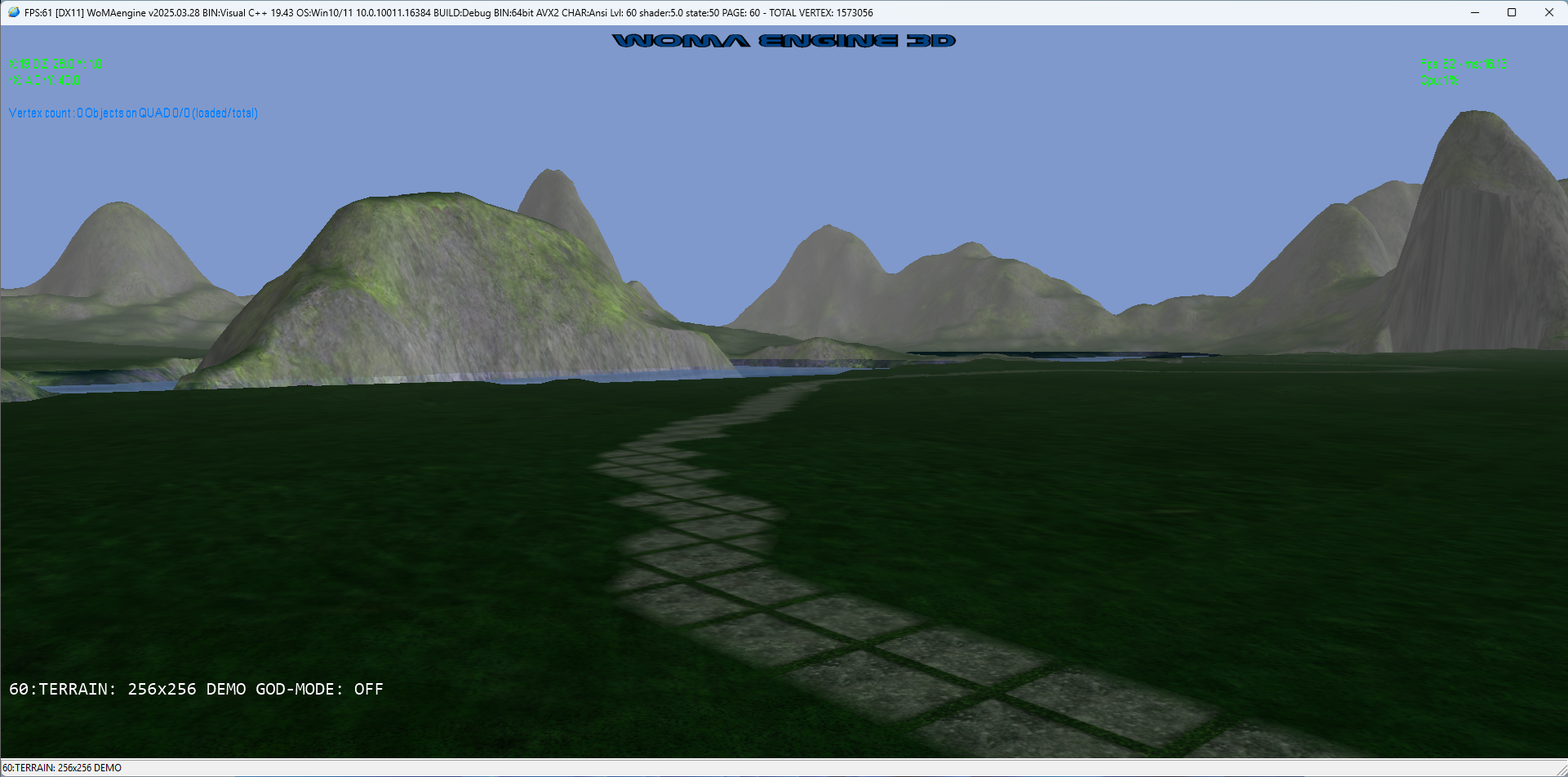

- LEVEL-60: WORLD.XML: TERRAIN: 256x256 MULTI-LAYER DEMO

---

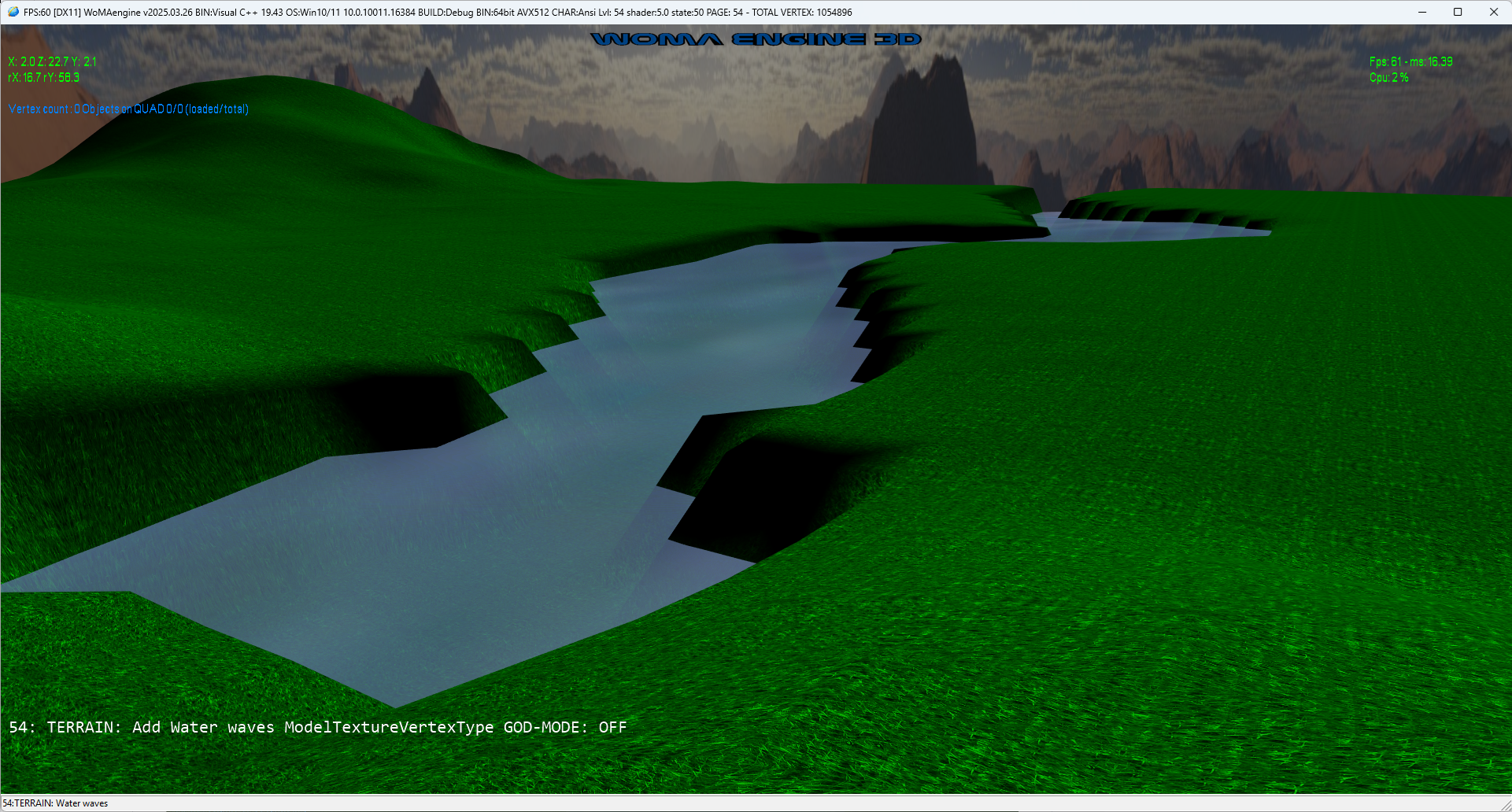

- LEVEL-54: WORLD.XML: TERRAIN: Add Water waves ModelTextureVertexType

---

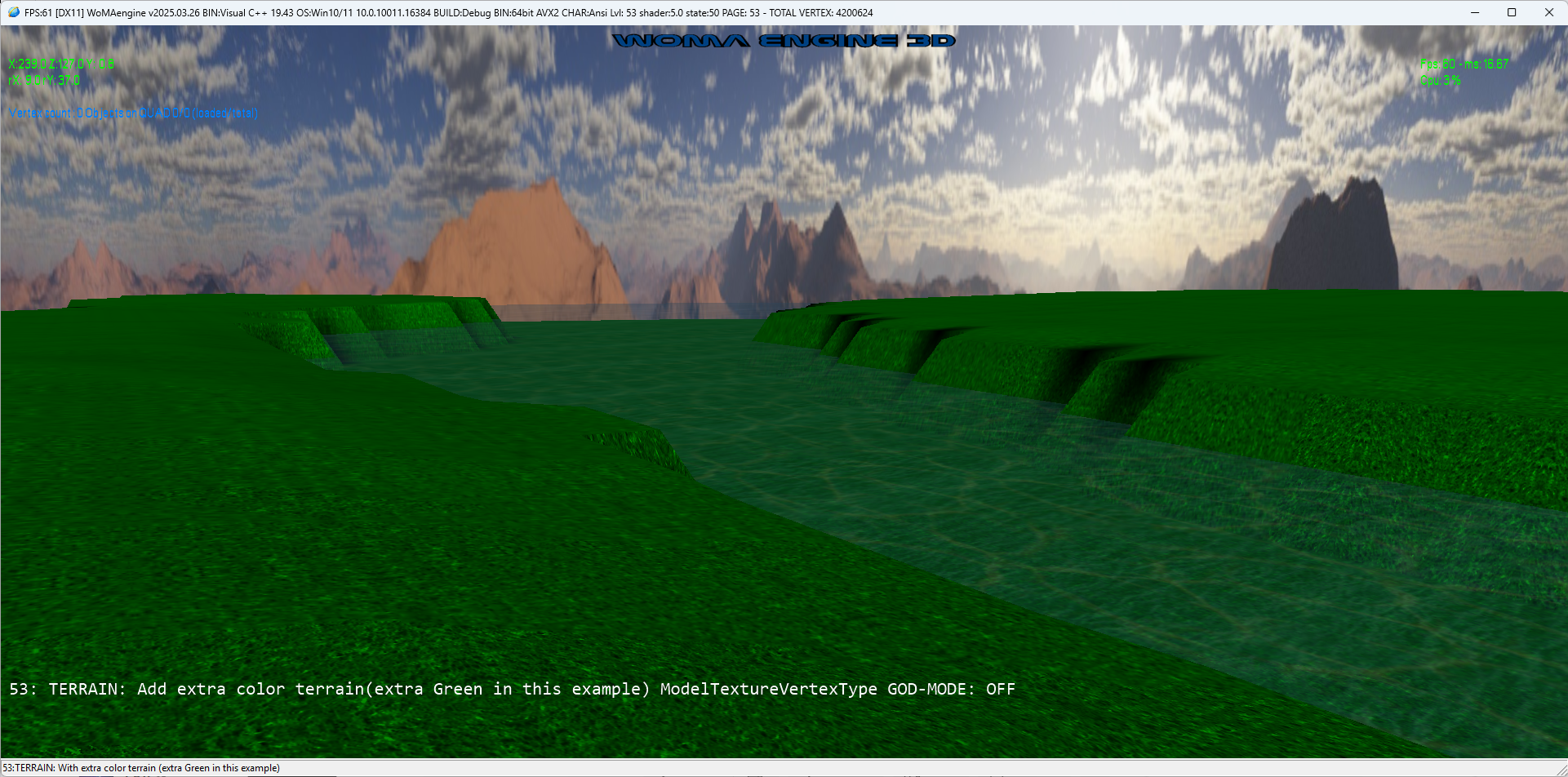

- LEVEL-53: WORLD.XML: TERRAIN: Add extra color terrain(extra Green in this example) ModelTextureVertexType

---

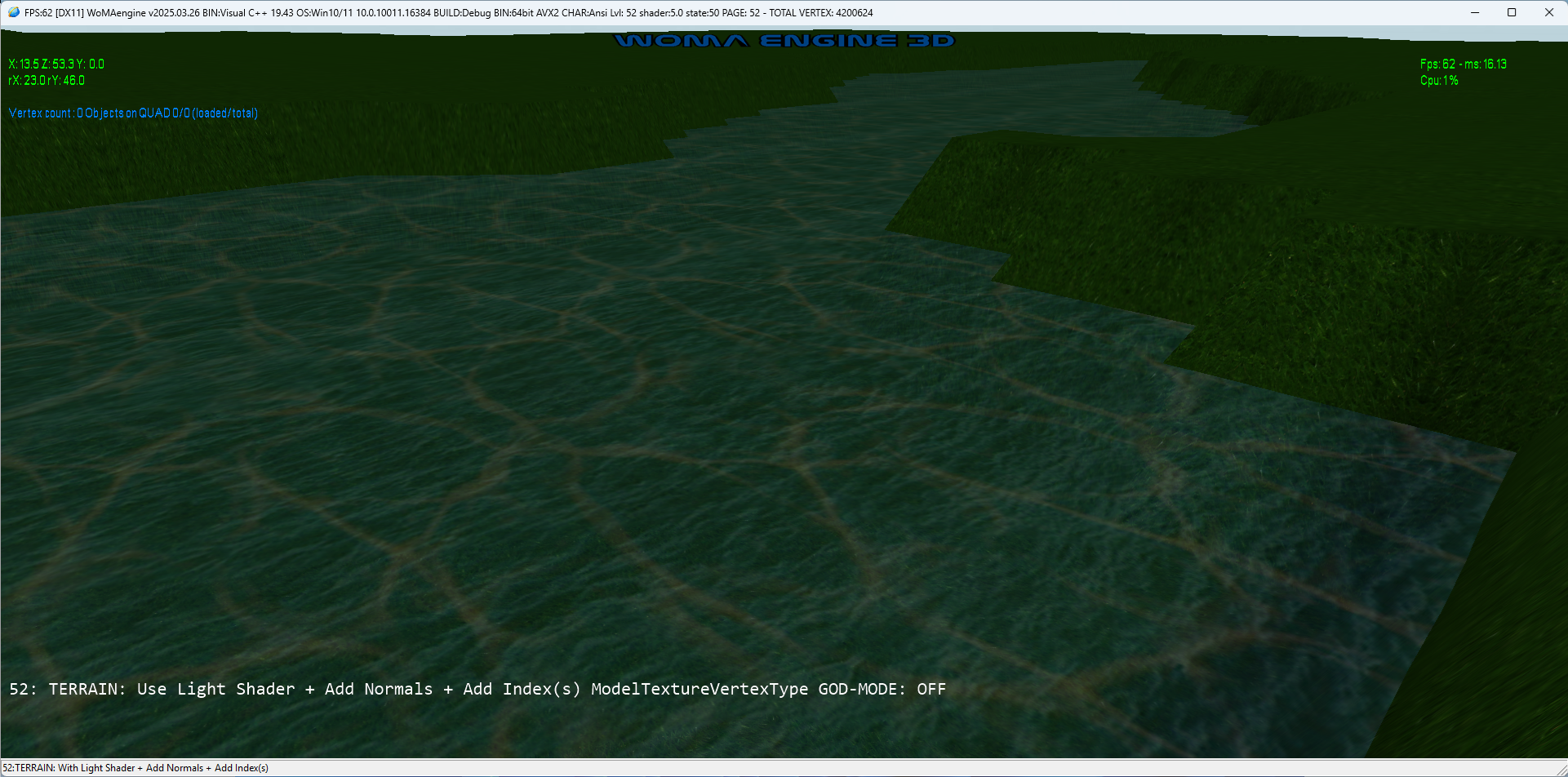

- LEVEL-52: WORLD.XML: TERRAIN: Use Light Shader + Add Normals + Add Index(s) ModelTextureVertexType.

---

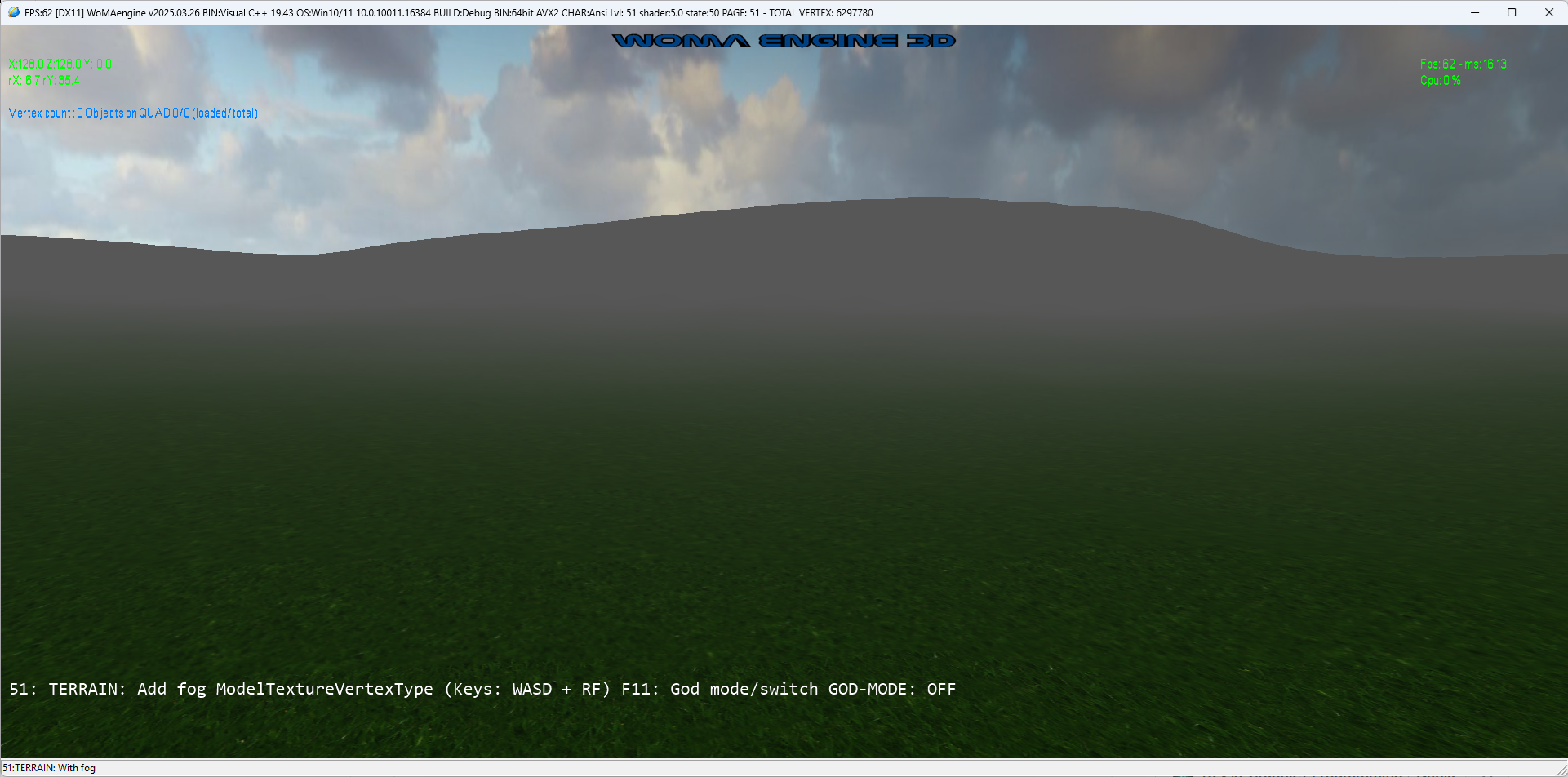

- LEVEL-51: WORLD.XML: Add fog (ModelTextureVertexType).

---

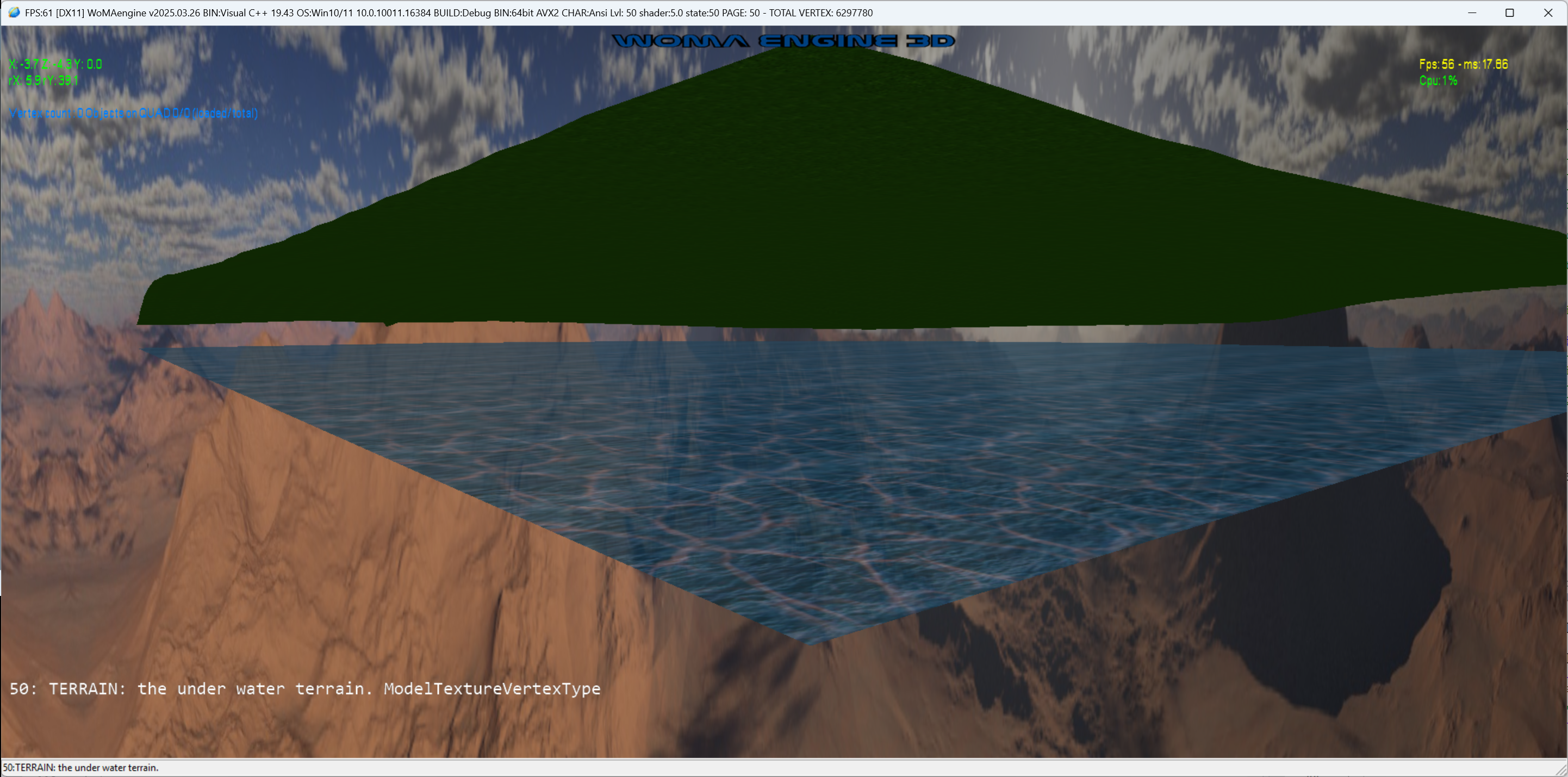

- LEVEL-50: WORLD.XML: The water and terrain above.

---

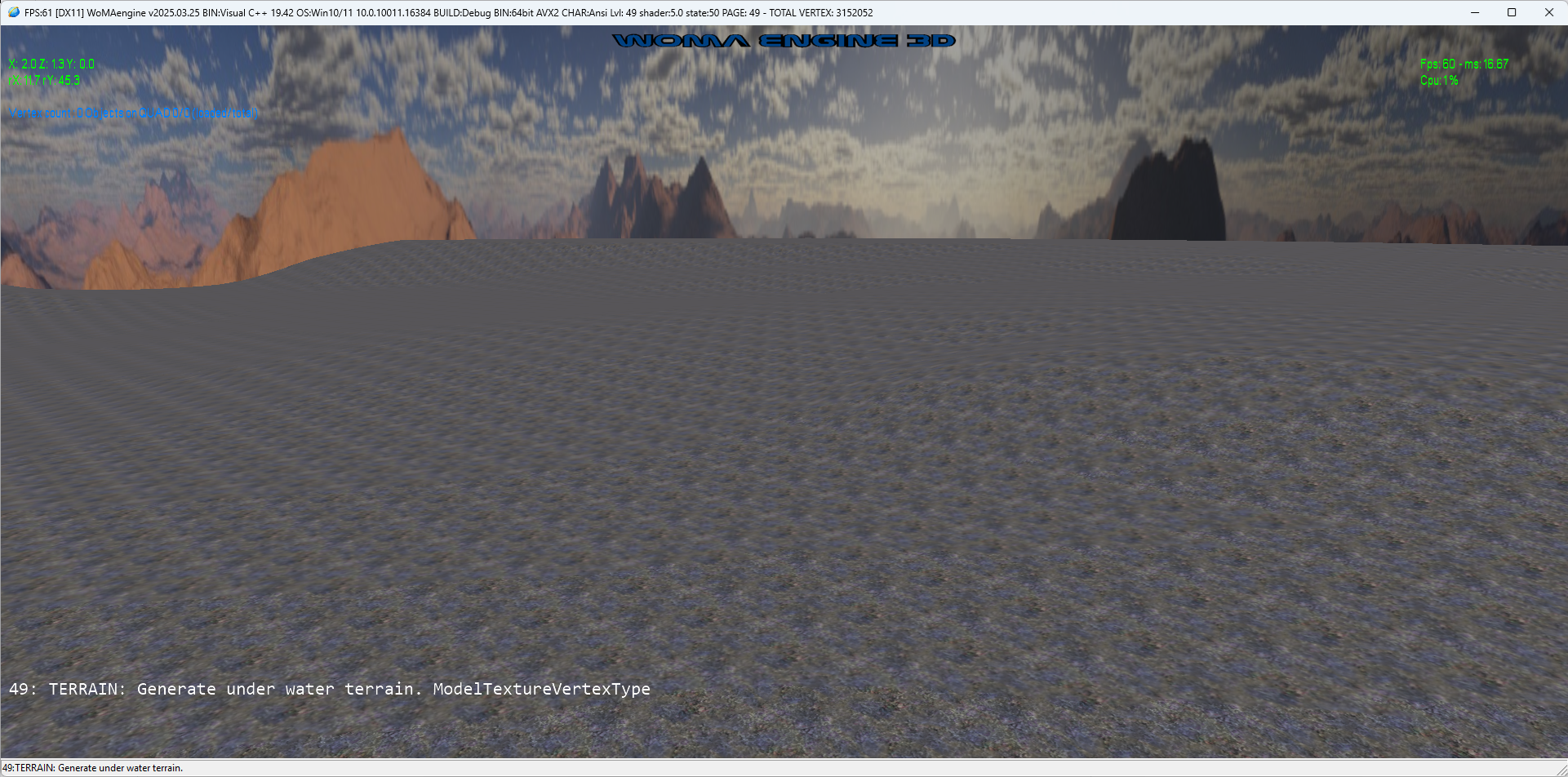

- LEVEL-49: WORLD.XML: Generate under water terrain.

---

3D - TERRAIN TUTORIAL SERIES: START

---

---

INTERMEDIATE 3D ENGINE TUTORIAL LIST

---

---

BASIC 3D ENGINE TUTORIAL LIST

---

• LEVEL-42: WORLD.XML: load W3D and use SHADOW INSTANCES but now with GPU ROTATION on (BLACK_BISHOPs and BLACK_KNIGHTs)


---

• LEVEL-41: WORLD.XML: load W3D and use SHADOW INSTANCES

  • This is a join of DX40 with DX39 now all together.
  • 041ShadowMapInstance.hlsl is equivalent to 036ShadowMap.hlsl but with instances.

---

• LEVEL-40: WORLD.XML: load W3D and use INSTANCES to clone objects using GPU

  • This is a very powerful tool, with less we can do more, using Shader INSTANCES to clone objects into different positions
  • 040LightInstance.hlsl is equivalent to 023Light.hlsl but with instances

---

• LEVEL-39: WORLD.XML: load W3D (the Woma 3D file format) files up to 30x faster than OBJ files in DX LEVEL 38

  • Loading the generated files (in DX38) ".W3D" Woma3DFormat. in 0.5 seconds vs 13.5 seconds using the ".OBJ" 3D file format

---

• LEVEL-38: WORLD.XML: load OBJ 3D file format, save to W3D Woma 3D fast file FORMAT

  • Load and Convert the powerfull/simple but slow ".OBJ" format 3D file, into to a super fast native WOMA file format: ".W3D" 20x faster!

---

• LEVEL-37: WORLD.XML: load OBJ 3D file format, render chess board pieces

  • Adding MAIN THREAD and the LOADER THREAD

---

• LEVEL-36: WORLD.XML: load OBJ 3D file format, render a SHADOW MAP

  • Loading an OBJ with SHADOW MAP, using a tecnique called: render to texture

---

• LEVEL-35: WORLD.XML: load OBJ 3D file format, with BUMP MAP

  • Loading an OBJ with BUMP MAP texture

---

- LEVEL-34: WORLD.XML: load OBJ 3D file format, with SPECULAR and SHININESS
- Adding SPECULAR and SHININESS to OBJ loader and shaders

---

- LEVEL-33: WORLD.XML: load OBJ 3D file format, the compond, using transparent textures ALFA MAP and ALFA COLOR
- Loading now OBJ with alfa color and alfamap

---

• LEVEL-32: WORLD.XML: load OBJ 3D file format, the first advanced object, using LIGHT shader

  • Loading more complex objects with light, the: OLD HOUSE.

---

LEVEL-31: WORLD.XML: load OBJ 3D file format, with MULTIPLE TEXTURES, using TEXTURE Shader:

- Loading Multiple Textures in one object

---

LEVEL-30: [Scene Graph][Node Tree] WORLD.XML: load OBJ 3D file format, using COLOR Shader:

- SceneManager and SceneNode
- QuadTree and Frustum
- World and Objects: Loading objects as a descriptor: World.xml
- Load obj format

Load obj format

---

INTERMEDIATE 3D ENGINE TUTORIAL LIST: END

---

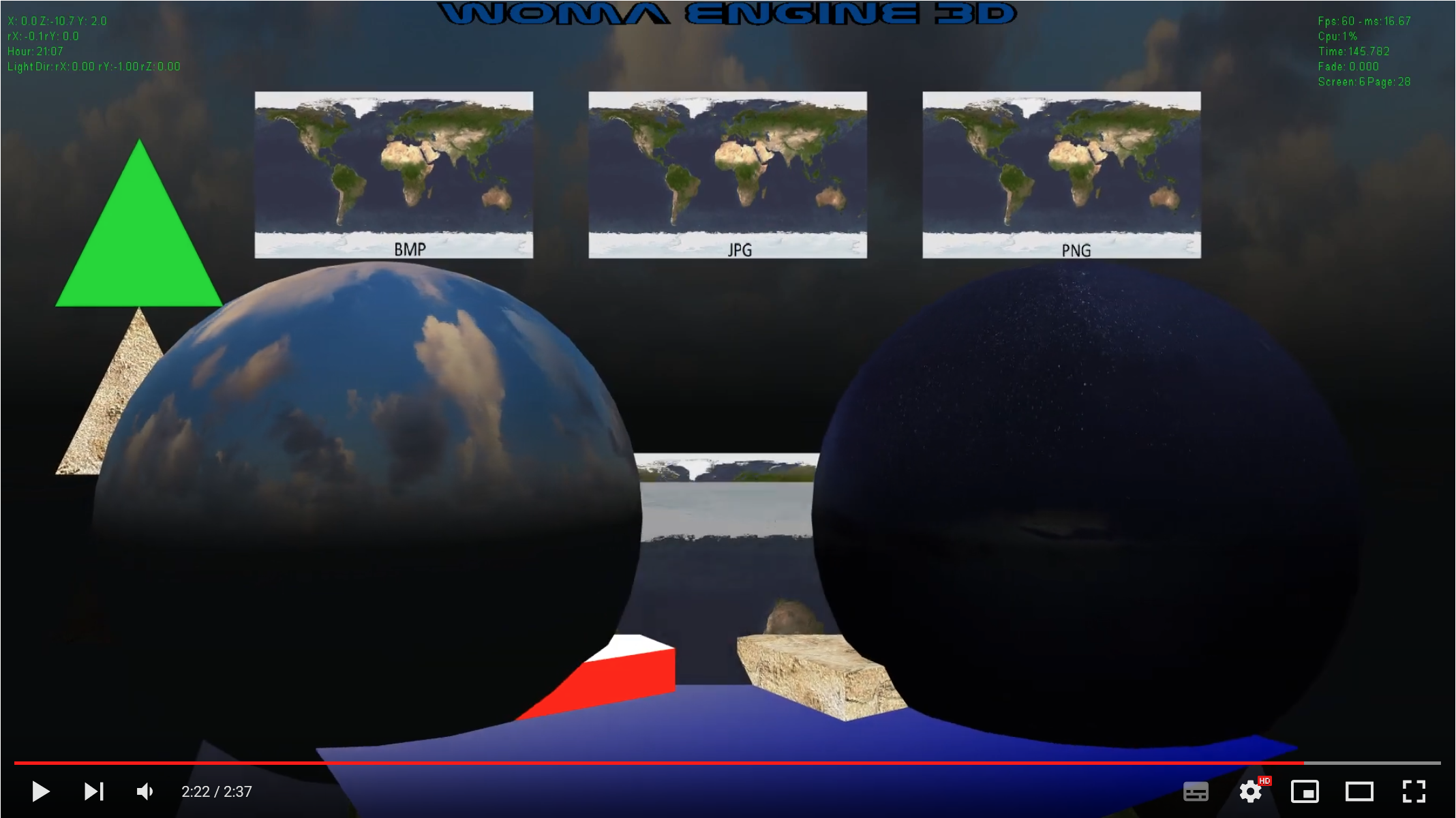

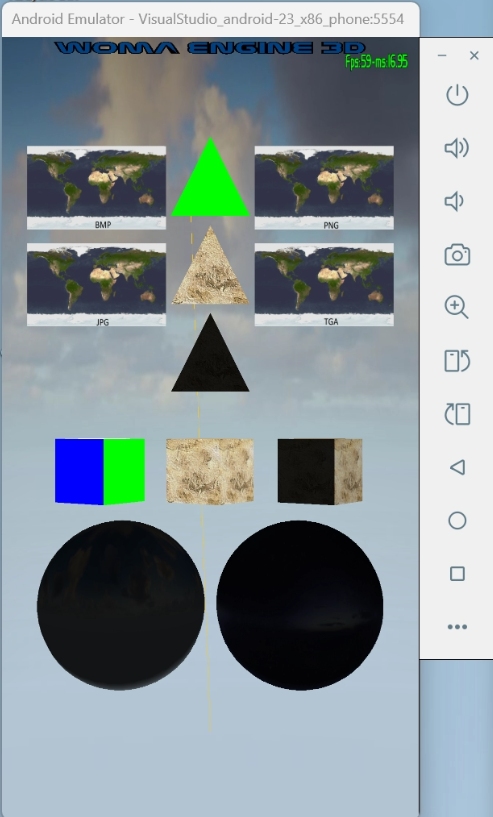

LEVEL-29: INTRO DEMO OF BASIC TUTORIAL SERIES:

Adding the Sound Manager

Adding Play background Music (Windows, Linux and Android)

Generate the first RELEASE BUILD

Add the installer of INTRO DEMO OF BASIC TUTORIAL SERIES

Adding the first release demo at LEVEL 29m for Windows, Linux and Android.

Intel/AMD X64 VIDEO:

Android ARM64/x86 VIDEO:

---

LEVEL-28: [Raw Mouse/Keyboard Input] Adding the fixed camera Sky and adding take snapshot:

- Adding the fixed camera Sky
- Adding Direct input for DX Drivers
- Allow snapshot file dump using "print screen" key, in any of these image formats:

		- Bmp
		- Png
		- Ico
		- Jpeg
		- Tiff
		- Gif
		- Wmp
		- Dds

WINDOWS:	LINUX:	ANDROID:

---

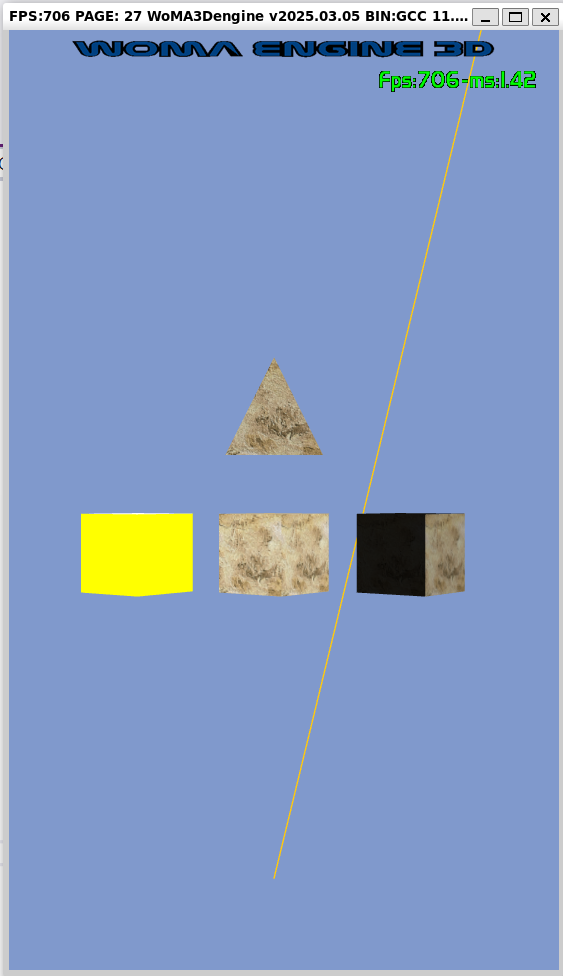

LEVEL-27: The Rastertek text font:

based on my mentor :)

https://rastertek.com/dx11win10tut14.html

WINDOWS:	LINUX:	ANDROID:

---

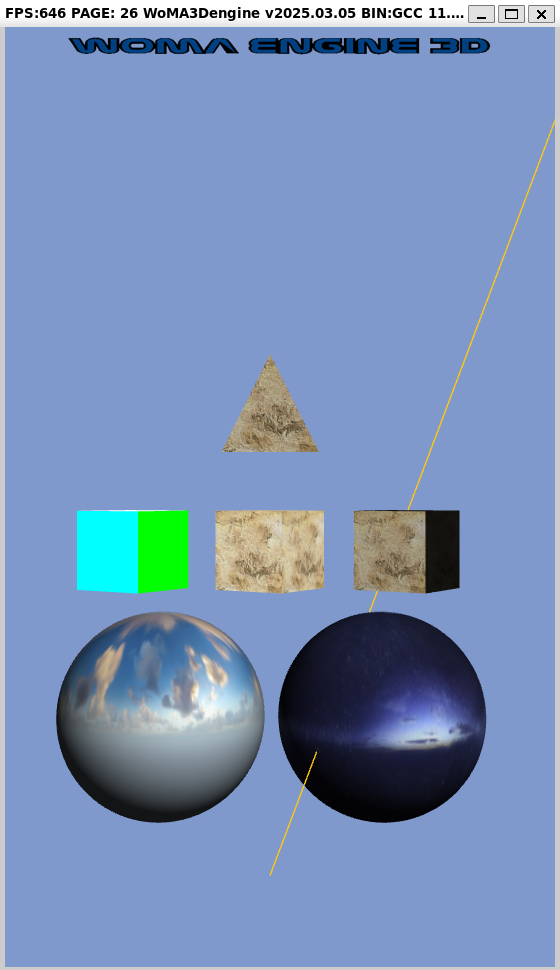

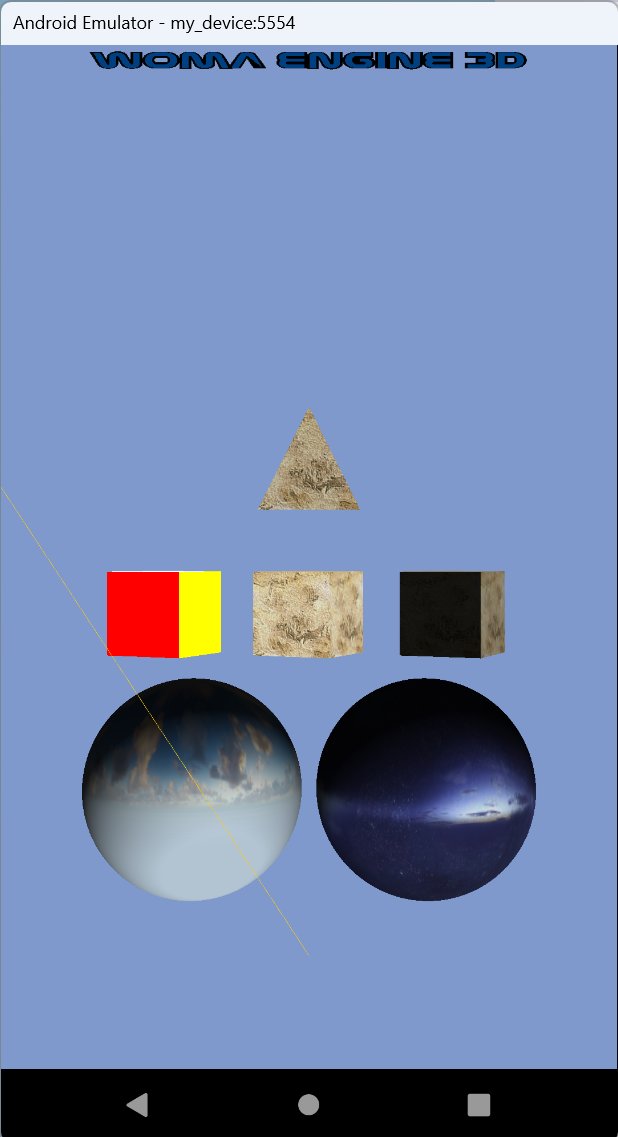

LEVEL-26: The Spheres (COLOR, TEXTURE and LIGHT Shaders):

One for each Shader type: (COLOR, TEXTURE and LIGHT Shaders)

WINDOWS:	LINUX:	ANDROID:

---

LEVEL-25: The CUBEs (the first auto-generated 3D object):

One for each Shader type: (COLOR, TEXTURE and LIGHT Shaders)

---

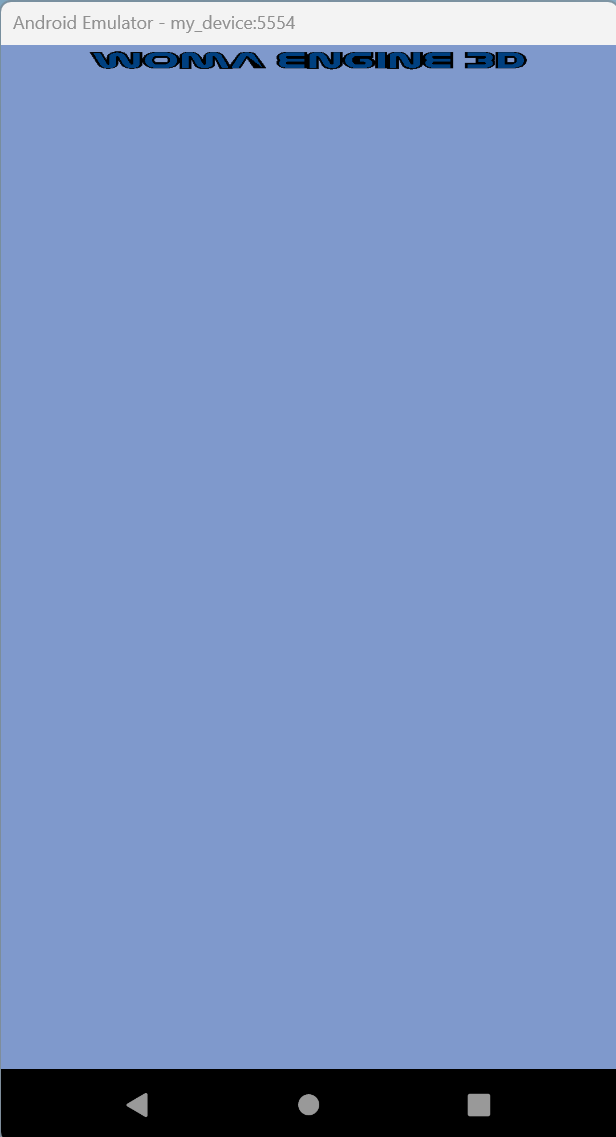

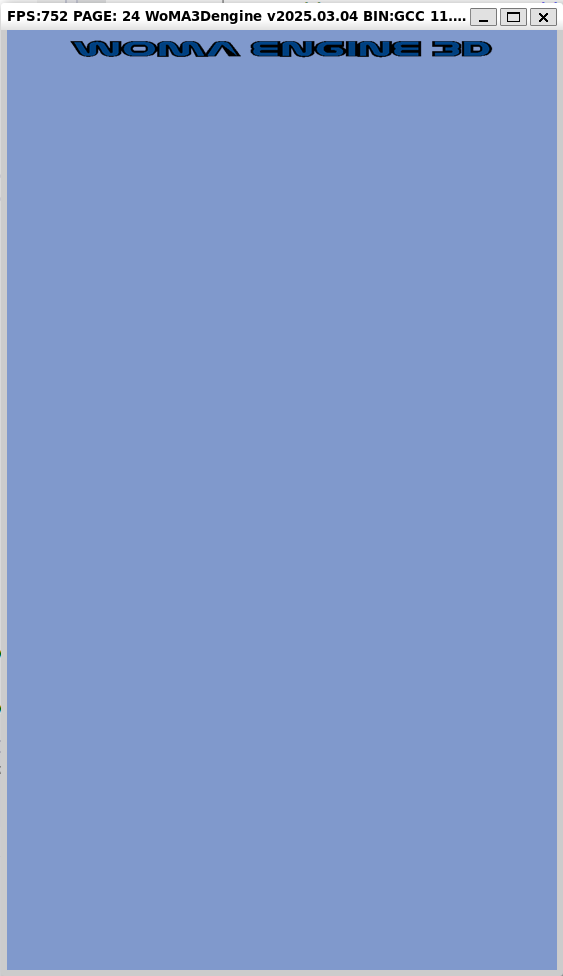

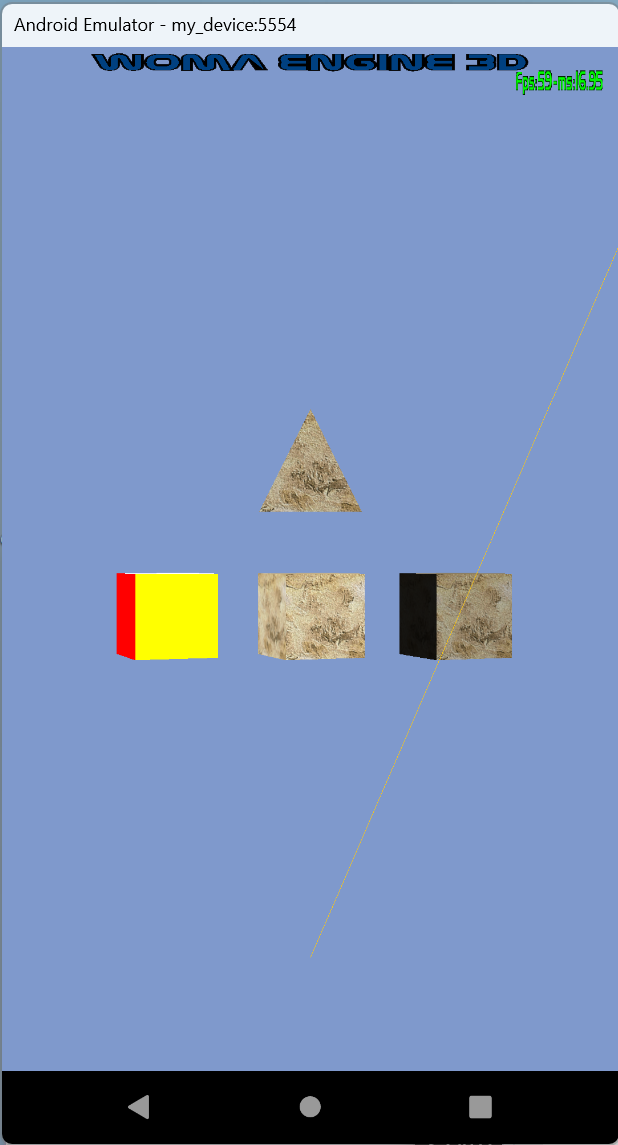

LEVEL-24: The 2D Rendering [Dynamic Vertex] (for Sprites):

WINDOWS:	LINUX:	ANDROID:

---

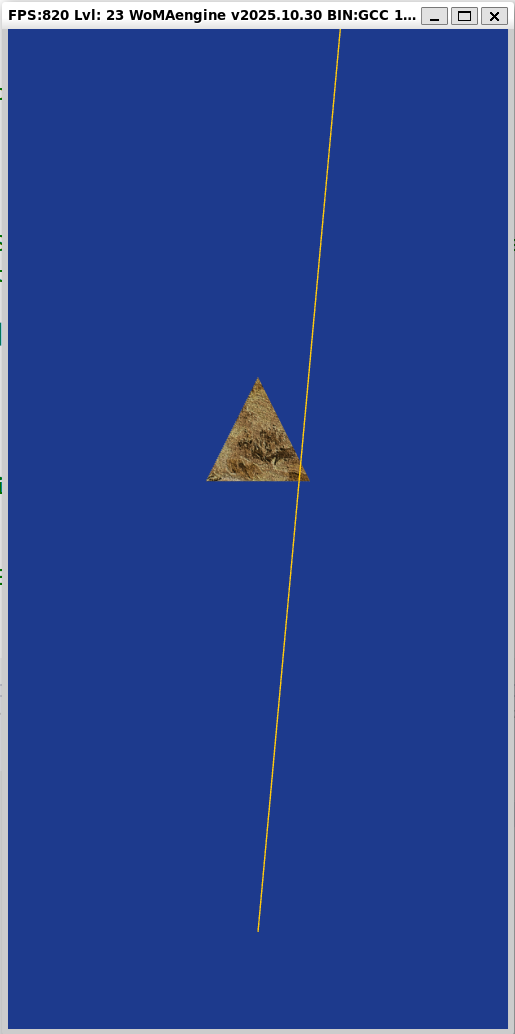

LEVEL-23: The [Directional Light] Shader with environment color:

Adding the first light, the Directional light.

WINDOWS:	LINUX:	ANDROID:

---

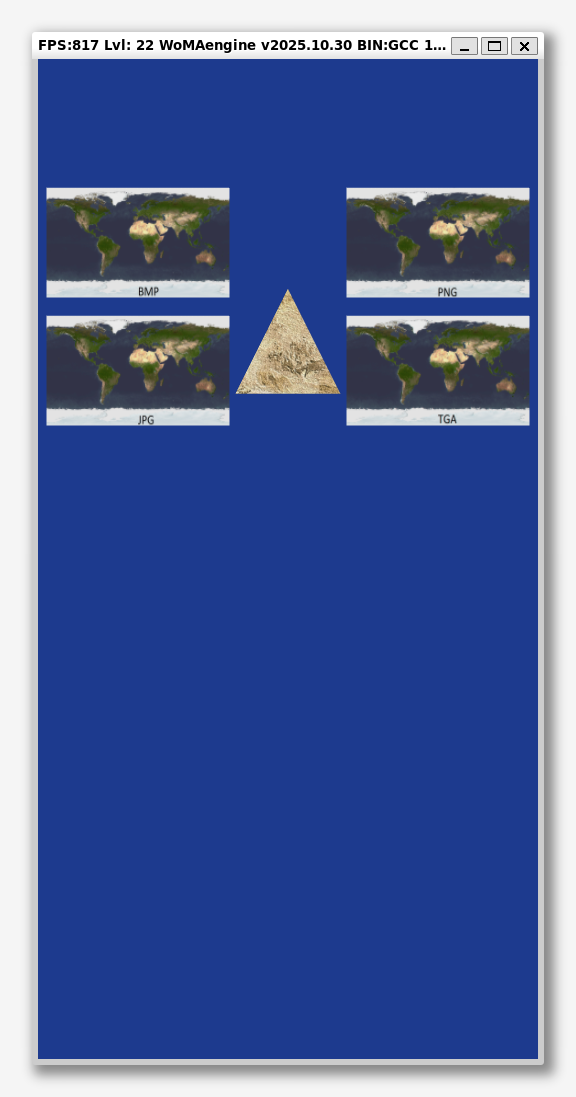

LEVEL-22: [The Textures] Shader:

Add third party image readers:
- BMP (WINDOWS, LINUX and ANDROID)
- JPG (WINDOWS, LINUX and ANDROID)
- PNG (WINDOWS, LINUX and ANDROID)
- TIFF (WINDOWS, LINUX and ANDROID)
- DDS (WINDOWS)
- TGA (WINDOWS)

WINDOWS:	LINUX:	ANDROID:

---

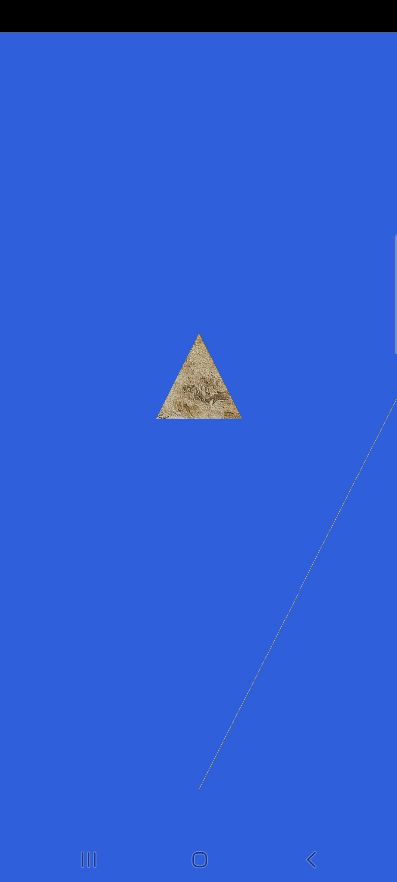

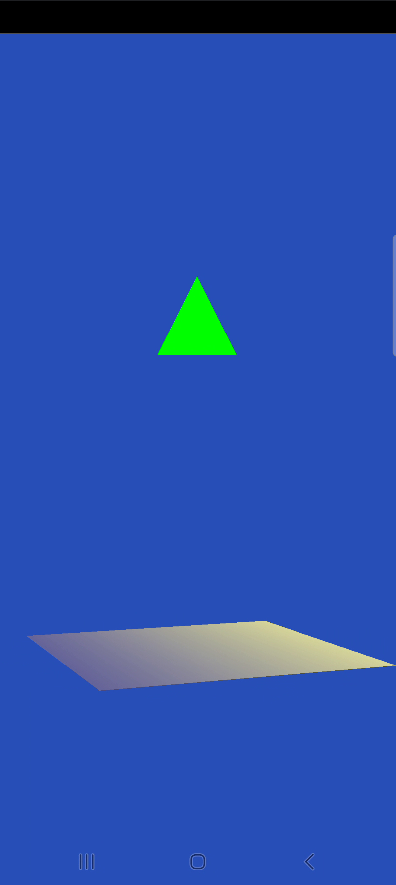

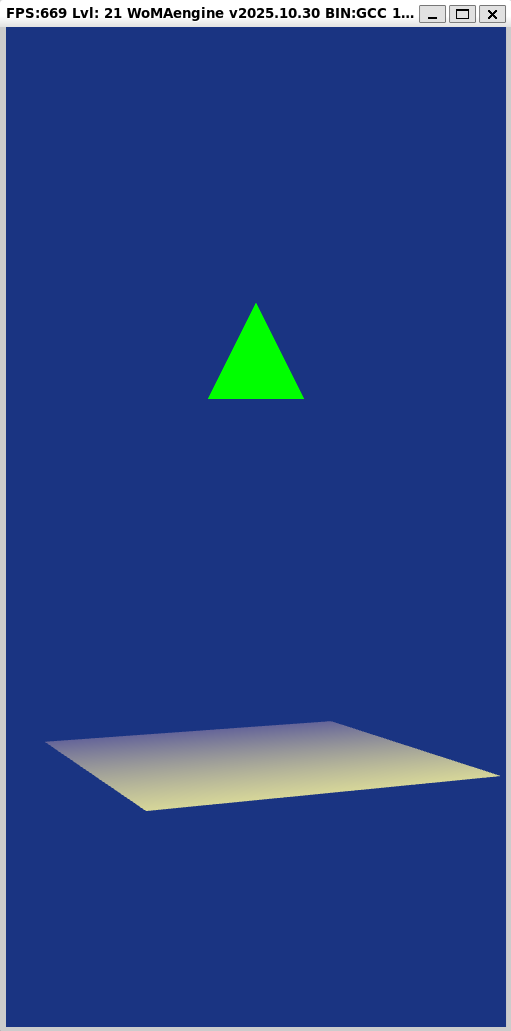

LEVEL-21: The COLOR Shader [First Triangle and Quad]:

Introduction to the: Rasterizer State

WINDOWS:	LINUX:	ANDROID:

---

LEVEL-20: Adding the Resize to Main Window:

Allow alt+enter swap
And allow user to change the window size

---

LEVEL-19: The Main 3D simple window:

Add Render Engine for "Windows":

DX9sdk (the original sdk, will be added/revealed later, at least on basic series)

DX9(using 11)

DX11

OPENGL3/4

DX12

Add Render Engine for "Linux":

OPENGL3/4

Add Render Engine for "Android":

GLES2/3

---

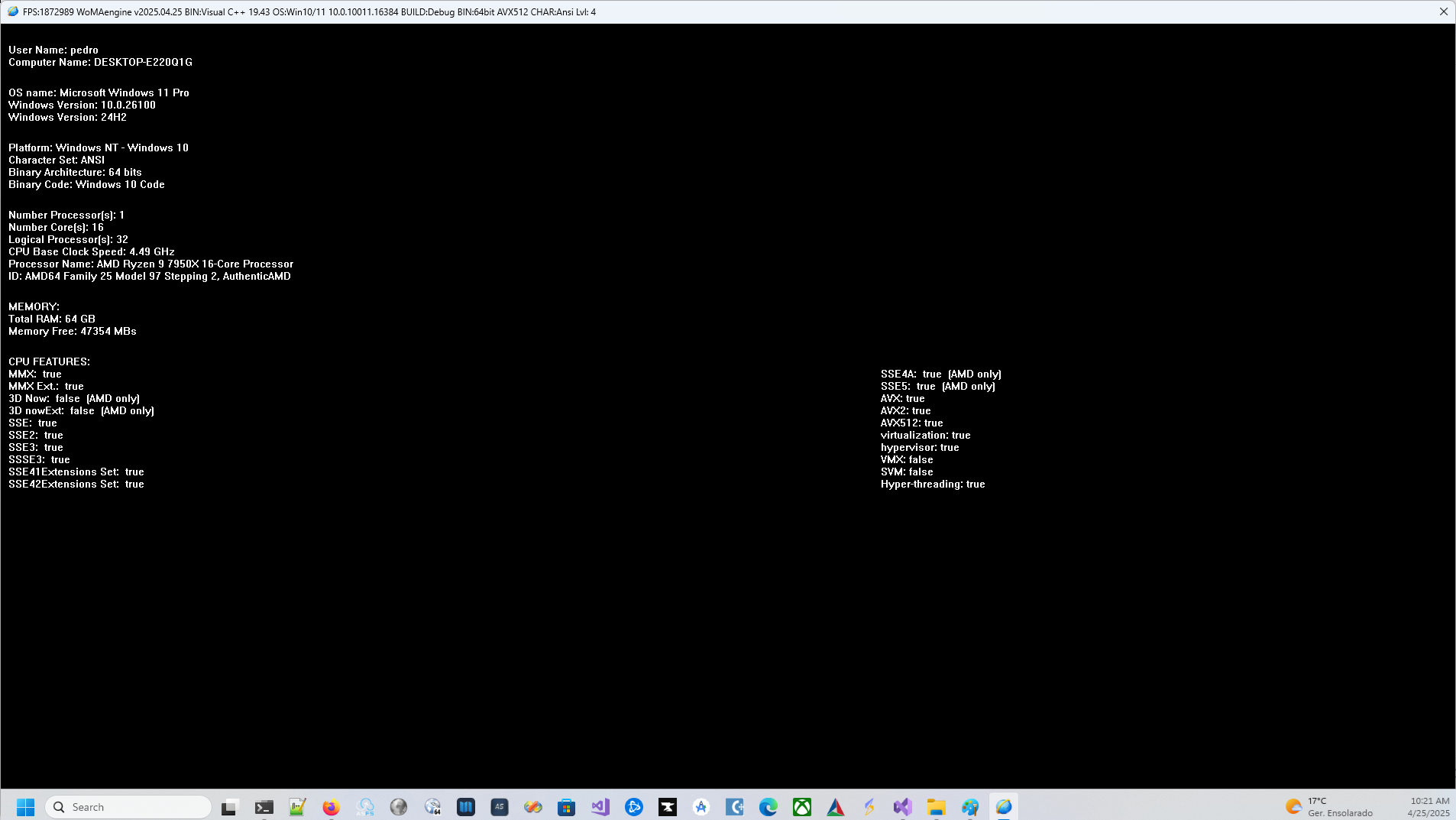

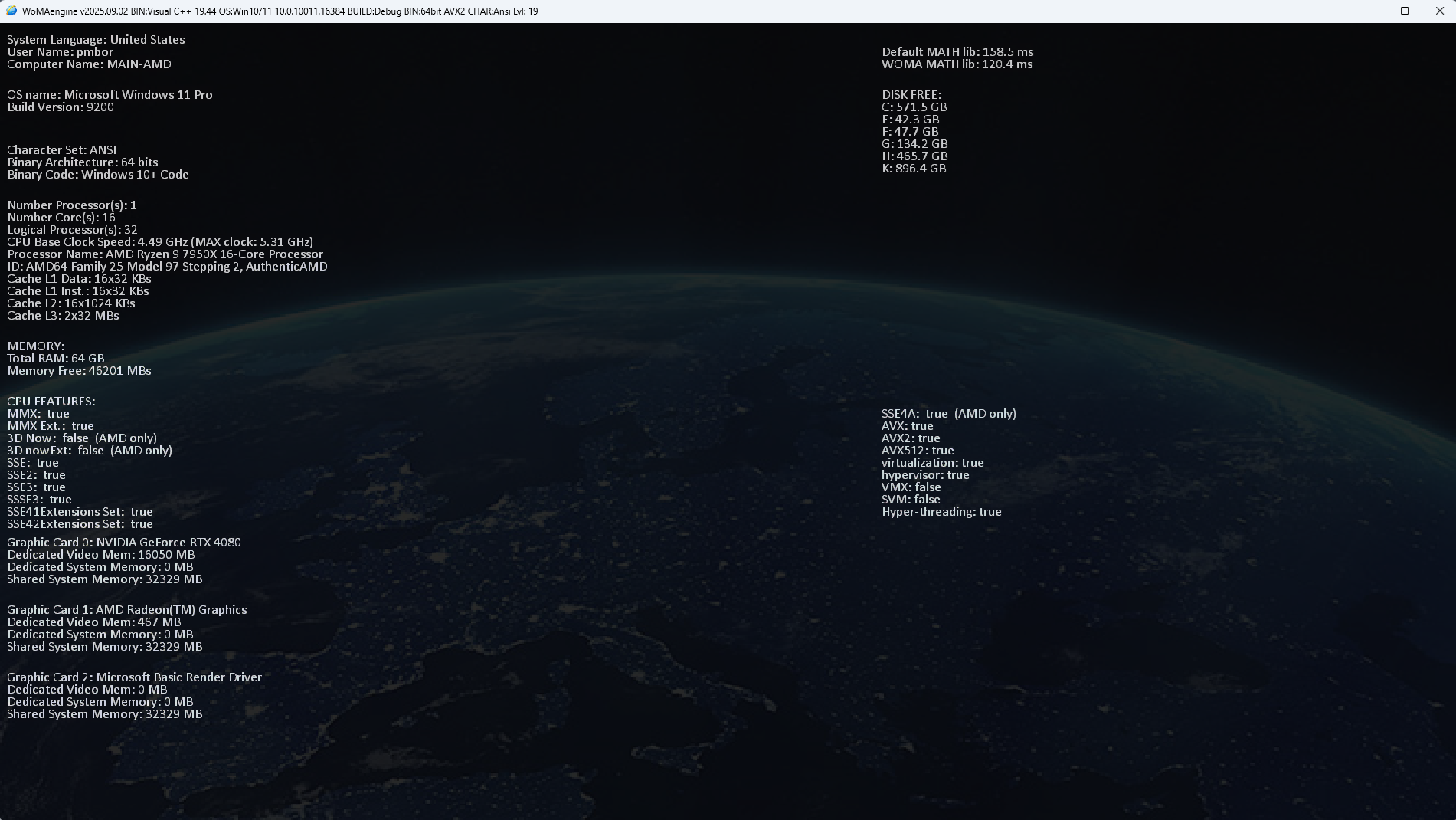

Level 19: [Create Device / Swap Chain] System Info image (F1):

Improve System Info, now with max CPU clock speed detection.

---

BASIC 3D ENGINE TUTORIAL LIST: END

---

---

3D - CORE TUTORIAL SERIES: BEGIN

---

009 Get current RealTime Weather using the aviation METAR:

METAR and TAF(later)

---

008 RealTimeMapGPSPosition

maxminddb_LIB

GeoLite2PP_LIB

---

007 Add the Real Time Celestial calculations:

These calculations will be used later:
- Loading files from engine.pck on RELEASE BUILD (explained later in an advanced chapeter with the installer)
- Calculate SunRise, SunSet
- Calculate Sun altitude angle and azimuth angle
- Moon Phase (based of realime date)
- Calculate Moon Distance
- Calculate moon Elevation, taking into account atmospheric refraction
- calculate Moon Ecliptic Latitude, Ecliptic Longitude and Azimuth

(NOTE: Later will be used to re-create more realistic astro positions)

---

006 Pack manager, the IDEA, the first simple MATH lib and CPU BENCH:

This will be used on bin release LEVEL 29:
- Create a pack file called engine.pack, which is a zip with the contents of all engine directory.
- Cypher the file with IDEA and call it: engine.pck
- Add the first Math libs for DX and OPENGL
- Add a simple CPU benchmark, to measure the performance improvement

---

005 [COM(Component Object Model)] The System Settings (settings.xml):

- Adding the OS Paint events
- Allow Load/Save Game System Settings in the settings.xml file.

---

004 SystemManager, TIMER and FPS:

- Adding the first version of SystemManager viewer
- Adding Precision Timer
- Add FPS (Frame per second) calculation
- OS [Keyboard] Manager

---

003 [Error Handling] Central EXCEPTIONs trace + Mini-Dumper and the upload (just the concept):

- Exception Stack trace viewer in detail for an _DEBUG build
- Exception Stack trace viewer and create the respective Mini Dump report
- Option to Upload the report for an FTP site.

---

002 The Main Window [Custom Icons]:

- Create Main OS Window [Window Creation]
- Handle the OS Windows events [Message Loop / WndProc]
- Main Window Paint events [Window Messages]

---

001 User language detection (later automatic translation), MEM Leaks and LOG:

- User language detection (later automatic translation)
- Log manager, will log on: REPORT.txt, on Visual Studio Console and on Console Window
- Memory leak detector level 1
- OS manager for main OS directories (DEBUG/RELEASE)

---

000 OSengine - The basic pillar foundations of the 3D WoMA Engine:

- platform.h [Introduction] (Auto detect: all platforms: WINDOWS, LINUX and ANDROID)
- main.cpp [WinMain] (for all platforms: WINDOWS, LINUX and ANDROID)
- Debug Console
- The default settings
- SystemClass (common for all platforms: WINDOWS, LINUX and ANDROID)
- WinSystemClass (for Windows)
- LinuxSystemClass (for Linux)
- AndroidSystemClass (for Android)

---

3D - CORE TUTORIAL SERIES: END

---

🚀 Latest Installer Release

📦 WoMA3Dengine v0.901 Installer — July 2025
No need to compile! This zip includes everything pre-packaged:

• 🧰 Downloads the latest source code
• ⚙️ Installs precompiled demo binaries fore DEBUG/RELEASE (from level 000 to 090)
• 🌐 Launch the engine instantly via HTML frontend

C:\WoMA3Dengine\CoreEngine_Tutorials\index.html

Notes:

Use:
Microsoft Visual Studio Community 2022 (64-bit) - Version 17.14.8

For now please just clone all content at (From this path all Platforms will compile using "Visual Studio", Windows, Linux and Android):
C:> git clone --recursive https://github.com/pmborg/WoMA3Dengine.git
Clone to: C:\WoMA3Dengine

Later on I will make path free but for now a few paths are hardcoded there.

---

cmake version need to be:

cmake-3.31.4

How did I install all environment from scratch:

INSTALL_ALL_FROM_SCRATCH.md

---

## 🧪 Which Project to Build?

WoMA3Dengine is divided into tutorial levels across three platforms:

🪟 Windows (Visual Studio 2022)

Choose the solution depending on your level of interest or tutorial stage:

Solution	Tutorials	Description
WindowsEngine_000-009-Core.sln	000–009	Engine startup, math, debug, sun/moon
WindowsEngine_019-029-Basic.sln	019–029	Texture mapping, camera, models, intro to terrain
WindowsEngine_030-045-Intermediate.sln	030–045	Billboards, instancing, lighting, input
WindowsEngine_049-089-Terrain.sln	049–089	Full terrain system, weather, PBR, animation

🔹 To explore the latest and most complete version, open and build:
WindowsEngine_049-089-Terrain.sln → CoreEngine_089

---

🤖 Android (Visual Studio 2022)

To build the Android version using NDK:
ANDROID1_engine_ALL.sln

Android-SDK:
C:\Program Files (x86)\Android\AndroidSDK\25
Android-NDK:
C:\Program Files (x86)\Android\AndroidNDK\android-ndk-r15c
Java:
C:\Java\jdk1.8.0_202
Ant:
C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\Apps\apache-ant-1.9.3

---

🐧 Linux (Visual Studio 2022)

LINUX_engine_ALL.sln
Check this file for more information about how to setup WSL:
https://github.com/pmborg/WoMA3Dengine/blob/main/HowTo/HowToWSL2/What%20to%20install%20on%20WSL%20LINUX.txt

---

---

🧩 Third-Party Components and License Information

(This section summarizes all external dependencies used by the engine)

The WoMA3Dengine integrates several external open-source and third-party libraries.
Each component retains its original license, and all attributions are included for transparency and compliance.

📘 Documentation:

• ThirdParty_Licenses.md —
  Full list of external libraries, licenses, and copyright notices.
• Dependency_Map.md —
  Structured overview of where each dependency is used within the engine.

🔍 Summary by License Type

License Type	Examples	Notes
🟢 MIT / BSD	TinyXMLv2, DirectXTex, DirectXTK, Assimp, PPG-master, libcurl	Open & permissive licenses
🟣 LGPL / BSD	OpenAL, ALUT, Vorbis, VorbisFile	Audio codecs and sound engines
🟠 Apache 2.0 / CC BY-SA	GeoLite2PP, MaxMindDB	IP geolocation libraries
🟡 Educational / Tutorial	Rastertek text fonts	Based on Rastertek DirectX tutorials

🧾 These dependencies enable features such as:

• Asset importing (Assimp, PPG)
• Advanced PBR rendering (PPG + DirectXTK)
• 3D sound (OpenAL + Vorbis)
• XML parsing (TinyXMLv2)
• Network data (libcurl)
• Geolocation services (GeoLite2PP, MaxMindDB)

---

_{End of README — see /ThirdParty for full details.}

📘 Developer Documentation Index

The WoMA3Dengine project includes in-depth technical documentation for developers and contributors.

📄 Document	Description
ThirdParty_Licenses.md	Complete overview of all third-party libraries, their licenses, and legal attributions.
Dependency_Map.md	Visual map of engine dependencies by module, including internal utilities and cross-platform relations.
INSTALL_ALL_FROM_SCRATCH.md	Step-by-step installation and build environment setup guide.

📁 All files are located under /ThirdParty and /HowTo.

---

_{© 2012–2025 Pedro Borges — WoMA3Dengine. All rights reserved. Open-source components remain property of their respective authors under their stated licenses.}
