openscad.nvim

Syntax highlighting, cheatsheet, snippets, offline manual and fuzzy help plugin for the openscad language

OpenSCAD help system and syntax highlighting in Neovim. This plugin was first created as a companion to the original openscad syntax highlighting. But it now contains a modified and updated version. In addition a openscad-help filetype and syntax is implemented.

In the future maybe lsp, error checking, hints and completion will exist here.

Note that some features of this plugin is *NIX only

Requirements

Nvim >= 0.5

Dependencies

Run :checkhealth to see if you fulfill the dependencies and requirements.

• zathura or another pdf viewer
• skim, fzf or snacks.nvim
• htop
• LuaSnip(optional)

Install

• Using packer.nvim

  use {
      'salkin-mada/openscad.nvim',
      config = function ()
          require('openscad')
          -- load snippets, note requires
          vim.g.openscad_load_snippets = true
      end,
      requires = 'L3MON4D3/LuaSnip'
  }

• Using lazy.nvim

  {
      "salkin-mada/openscad.nvim",
      config = function()
          vim.g.openscad_load_snippets = true
          require("openscad")
      end,
      dependencies = { "L3MON4D3/LuaSnip", "junegunn/fzf.vim" },
  },

Available mappings

<Enter>/<C-m> in normal mode Toggle cheatsheet window

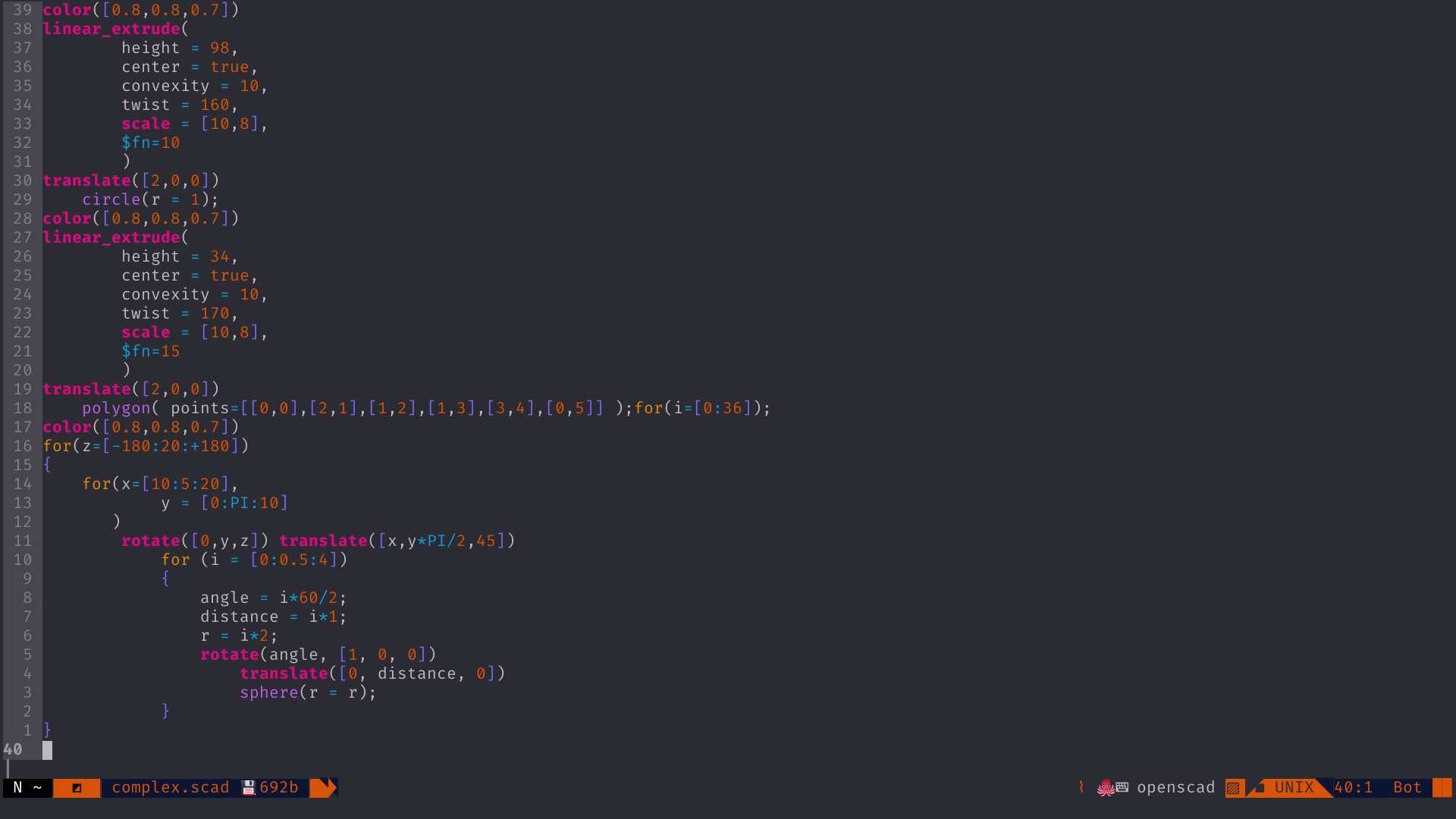

<A-h> in normal mode Fuzzy find help resource

<A-m> in normal mode Open offline openscad manual in pdf via pdf command (if one is set)

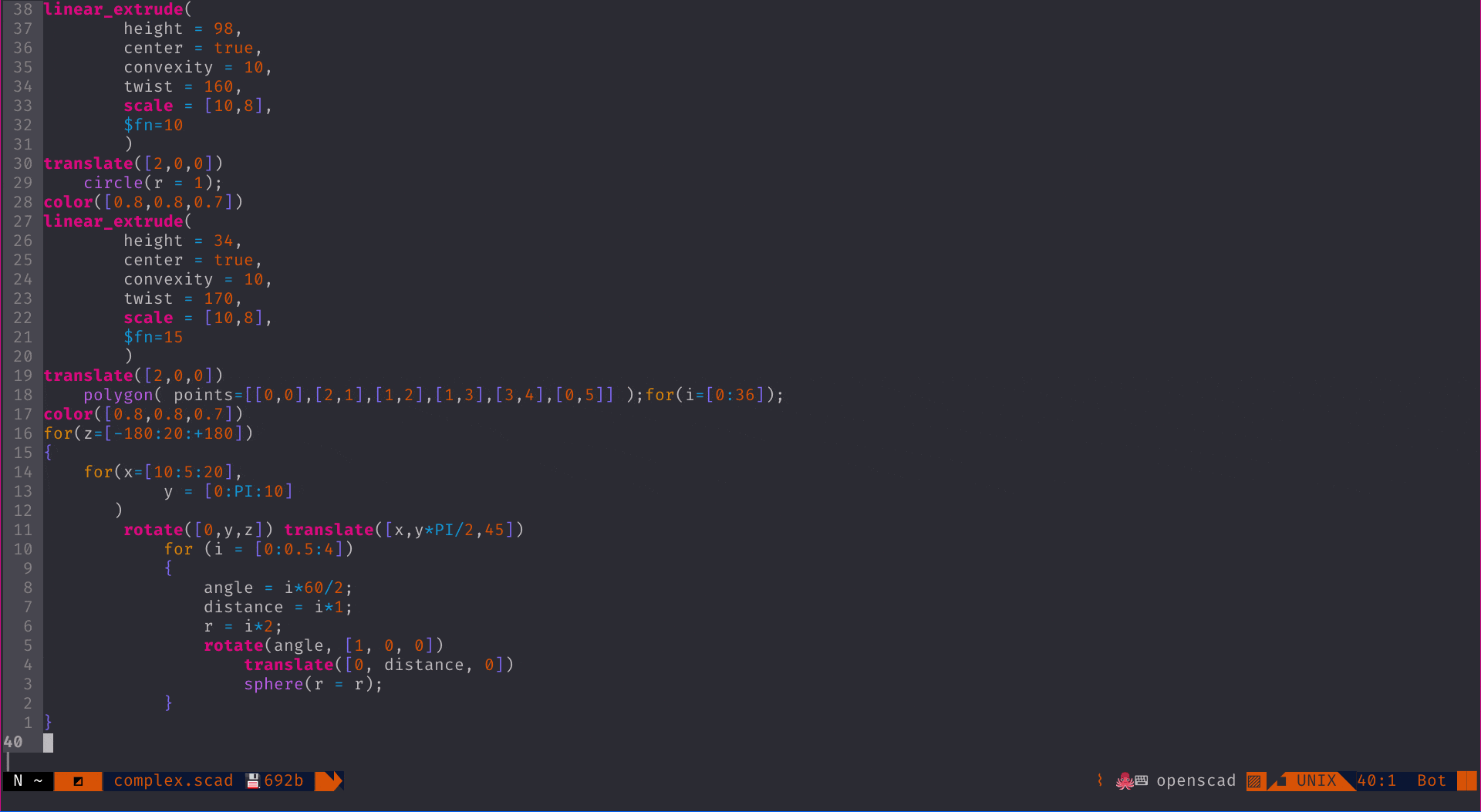

<A-o> in normal mode Open file in OpenSCAD

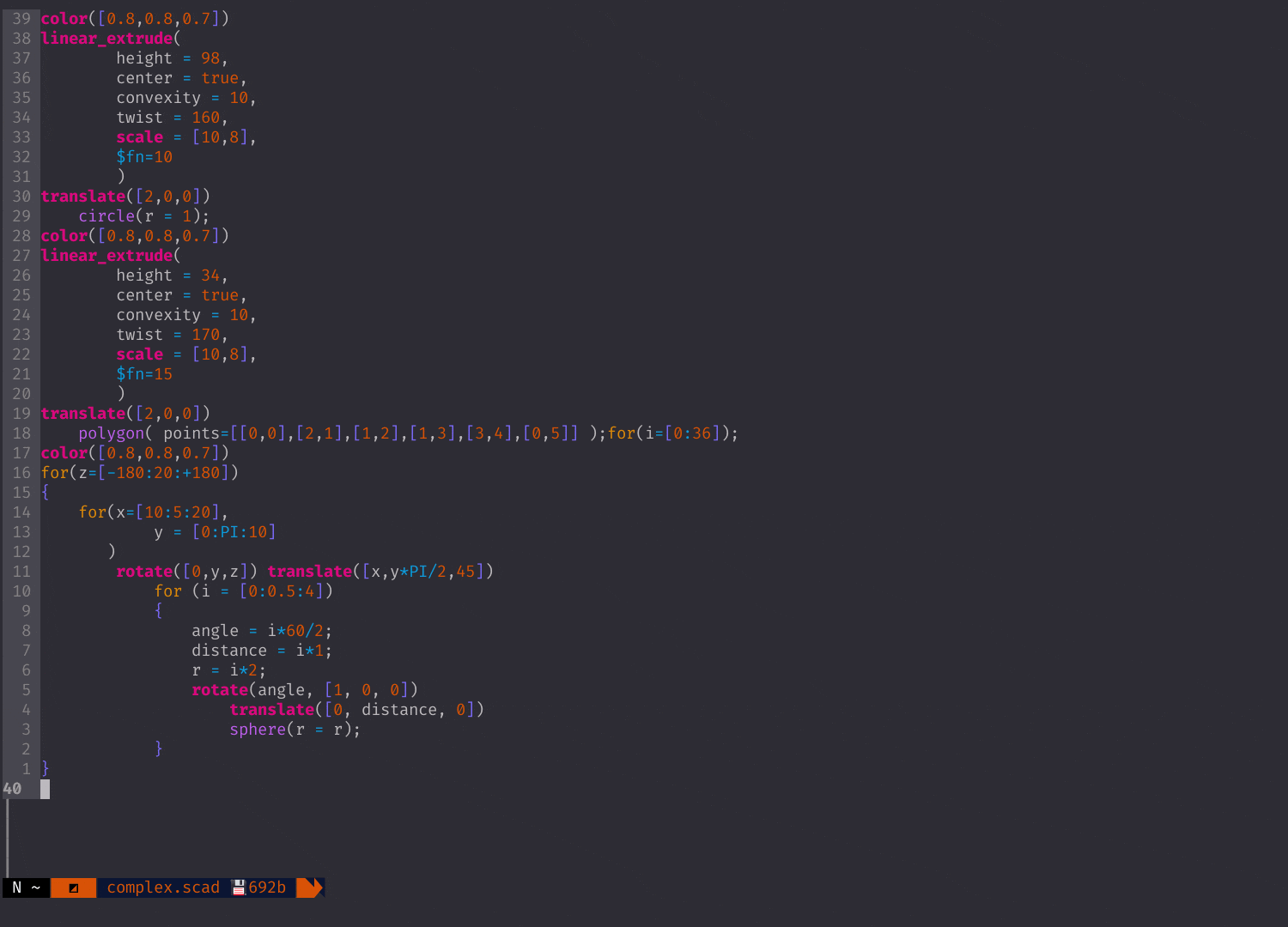

<A-c> in normal mode toggle htop filtered for openscad processes

Options

These are the defaults:

vim.g.openscad_fuzzy_finder = 'skim'
-- when the pdf_command is run, the last argument will be the pdf filename
vim.g.openscad_pdf_command = ''
vim.g.openscad_cheatsheet_window_blend = 15 --%
vim.g.openscad_load_snippets = false
-- should the openscad project automatically be opened on startup
vim.g.openscad_auto_open = false

Mappings

openscad.nvim mappings is by default not enabled.

vim.g.openscad_default_mappings = true

The default mappings are:

vim.g.openscad_cheatsheet_toggle_key = '<Enter>'
vim.g.openscad_help_trig_key = '<A-h>'
vim.g.openscad_manual_trig_key = '<A-m>'
vim.g.openscad_exec_openscad_trig_key = '<A-o>'
vim.g.openscad_top_toggle = '<A-c>'

• Options and Mappings may be defined in either Lua or Vimscript.
