LiDAR Data Vehicle Trajectory Prediction

This repository is a project to predict vehicle trajectories using sequential LiDAR point clouds from a sample of the KITTI Odometry dataset. It demonstrates end‑to‑end data loading, balancing, augmentation, modeling, and training utilities in PyTorch.

It uses a PointNet encoder to extract features from point clouds, followed by an LSTM to predict future trajectories. The model is trained using a combination of distance and direction loss functions. The training process is visualized live using Matplotlib, and checkpoints are saved automatically.

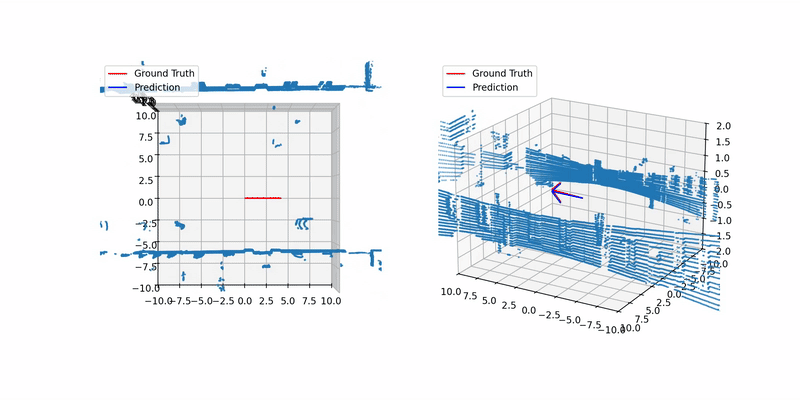

Video on the test dataset (never seen during training) showing the predicted trajectory overlaid on the ground truth trajectory: Watch the full demo on YouTube

I had to balance the dataset as the original data is heavily imbalanced, with most sequences having the vehicle moving straight. I implemented a custom dataset class to sample sequences with a balanced distribution of turns and straight paths (>3 absolute degrees over x axis).

For training I sample the 1e5 points per frame to around 30k points, which is a good trade-off between performance and speed. I also added a small amount of noise to the point clouds to augment the dataset.

Project Highlights

Mathematical Background

Translation Computation

To extract the 3D translation between two consecutive LiDAR frames:

1. World poses are loaded as 4×4 homogeneous matrices pose_i and pose_j (from load_poses), each containing rotation R and translation t:

   pose = [[R | t],
           [0 0 0 1]]


2. Relative transform is computed by inverting the first pose and multiplying by the second:

   rel = torch.inverse(pose_i) @ pose_j

3. Translation vector is the first three elements of the last column of rel:

   t_rel = rel[:3, 3]  # shape (3,)

This vector t_rel is stored in self.translations and used as the training target.

Model Architecture

1. PointNetEncoder
   • Input: batch of point clouds [B, N, 3].
   • Applies shared MLP (Conv1d(3→64→128→feat_dim) + ReLU)
   • Global max-pooling → outputs features [B, feat_dim].
2. Temporal LSTM
   • Input: sequence of encoded frames [B, T, feat_dim].
   • Two-layer LSTM with hidden size hidden_dim → outputs sequence [B, T, hidden_dim].
   • Final hidden state at time step T → [B, hidden_dim].
3. Decoder MLP
   • Two fully-connected layers (hidden_dim→hidden_dim→out_dim) with ReLU.
   • Output: predicted translation vector [B, 3], corresponding to (t_x, t_y, t_z).

This pipeline transforms raw LiDAR scans into accurate short‑term trajectory estimates.

• End-to-end Pipeline: From raw KITTI scans to trajectory prediction.
• Modular Design: Clean separation of dataset, model, loss, and training code.
• Interactive Visualization: Live loss curves (train / val / random baseline) via Matplotlib.
• Checkpoint Management: Automatically saves the latest and keeps top‑3 best by validation loss.

Repository Layout

├── data/                  # Utility modules and configs
│   ├── config.py          # Hyperparameter and path configs
│   └── plotstate.py       # Dataclass for live metric plotting
├── datasets/              # Data-loading pipelines
│   ├── SemanticKITTIDataset.py # Main dataset class for loading LiDAR data
│   ├── PointSamplerDataset.py # Subsampling point clouds
│   ├── SequenceDataset.py # Stacking point clouds into sequences
│   ├── BalancedSequenceDataset.py # Balancing dataset for turns and straight paths
│   └── utils.py           # Helper functions for parsing calibration/poses
├── losses/                # Loss function modules
│   ├── distance_loss.py
│   ├── direction_loss.py
│   └── combined_loss.py
├── models/                # Model definitions
│   ├── PointNetEncoder.py
│   └── TrajectoryPredictor.py
├── plotting/              # Visualization & checkpoint management
│   └── CheckpointManager.py
├── train_modules/         # Training and validation loops
│   ├── train_loop.py
│   ├── val_loop.py
│   └── utils.py           # Device selection and helpers
├── SemanticKITTI_00/      # KITTI odometry data
│   ├── velodyne/          # LiDAR scans (.bin files)
│   ├── calib.txt
│   ├── poses.txt
│   └── times.txt
├── checkpoints/           # Saved model checkpoints
├── train.py               # Main entrypoint script
├── test.py                # Quick evaluation script
├── traj_anim.gif          # Sample trajectory animation
└── README.md              # Project overview and instructions

Configuration

Edit the Config dataclass in train.py to adjust hyperparameters or file paths:

data_path: Path = Path("SemanticKITTI_00/")
seq_len: int = 5
n_points: int = 30_000
batch_size: int = 16
num_epochs: int = 50
train_split: float = 0.8
lr: float = 1e-3
weight_decay: float = 1e-5
checkpoint_dir: Path = Path("checkpoints")
angle_threshold: float = 3.0
noise_amount: float = 0.15

Training

Run the main script:

python -m train

This will:

• Load and preprocess data
• Initialize the PointNet‑LSTM model
• Train over the specified epochs
• Live‑plot losses and save checkpoints
• Save the best model based on validation loss

Testing

To evaluate the model, run:

python test.py

This will:

• Load the best checkpoint
• Predict trajectories on the test set
• Save the predictions in a video as traj_anim.mp4

Checkpoints

• latest.pt: Overwritten each epoch
• Top‑3 best: Files named val_{val_loss:.4f}_epoch_{epoch}.pt, auto‑pruned beyond three

Customization

• Data Augmentation: Adjust noise level in SemanticKITTIDataset.
• Balancing: Modify __init__ in BalancedSequenceDataset to change sampling strategy.
• Loss Weights: Change (w_dist, w_dir) in loss.py’s combined_loss.
• Model Variants: Swap encoder or tweak LSTM size in model.py.

Result Table

Over the test set, the model achieved the following metrics:

Metric	Min	Max	Avg
Combined Loss (50% mse 50% cosine similarity)	0.0009	0.2908	0.0519
Angle Error (degrees)	0.0198	9.0369	0.9129
Length Error (meters)	0.0000	0.5815	0.1013
