💻📸 ascii-chat 🔡💬

Video chat in your terminal

Probably the first command line video chat program (let me know if this isn't true). Initial commits November 20-24, 2013, with @craigpalermo, at some collegiate hackathon (I forget which one).

ascii-chat is a client-server application that operates over TCP/IP. It supports color and audio and crypto and compression and multiple clients and has lots of other little features and options.

The client functions by simply printing text and terminal escape codes to your terminal, so it works EVERYWHERE that terminals work: on rxvt-unicode in OpenBox, in a Putty SSH session, in iTerm and Kitty.app on macOS, and theoretically everywhere else terminals run. You just need a webcam.

ascii-chat even works in an initial UNIX login shell. You know, the shell that runs 'startx' and launches your desktop environment so you can open a GUI terminal app like Konsole or Kitty or Alacritty. You don't need a desktop environment at all to video chat with ascii-chat. (*)

🆕 We support UTF-8 now so it's not just ASCII anymore. However the name is still ascii-chat.

🆕 Now 3+ simultaneous people can connect and the server will render the clients to each other as a grid, like Google Hangouts and Zoom calls do. See the Network Protocol docs.

🆕 Audio is now supported - turn on your microphone and start talking! (TODO: buggy - needs work) See the Audio System docs.

📚 Read the Documentation - Full API reference, architecture guides, and more.

(*) Testing needed to verify a decent framerate on different systems and environments.

Animated Demonstrations

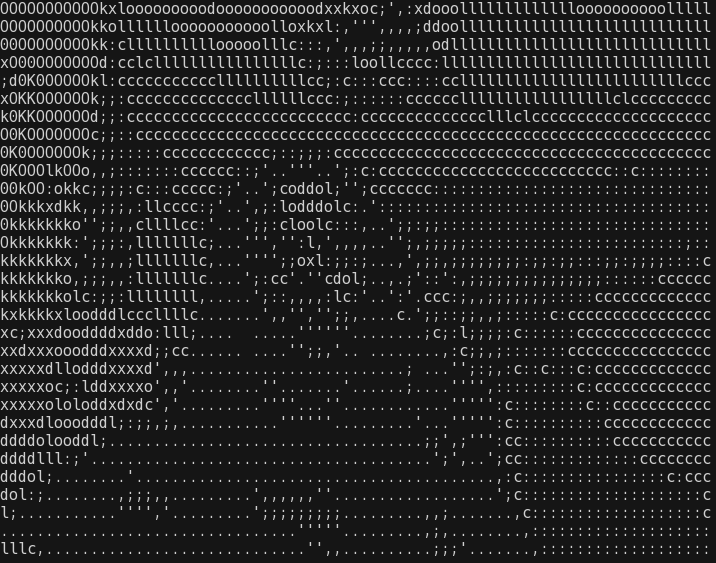

ascii-chat v0 from 2013:

ascii-chat v0.3.5 in 2025. Here are 3 clients connected to a single server, in a call:

Code Coverage

Get ascii-chat

macOS (Homebrew):

# Add the tap
brew tap zfogg/ascii-chat

# Install runtime binary
brew install ascii-chat

# Install development libraries (headers, static/shared libs, docs)
brew install libasciichat

Arch Linux (AUR):

# Stable releases
paru -S ascii-chat           # Runtime binary
paru -S libasciichat         # Development libraries (headers, libs, docs)

# Latest git versions (recommended for development)
paru -S ascii-chat-git       # Runtime binary from git
paru -S libasciichat-git     # Development libraries from git

All Platforms:

Latest release: v0.4.12
All downloads: GitHub Releases
Documentation: zfogg.github.io/ascii-chat — API reference and developer guides
Source installation: see the Dependencies section below, then follow the Build from source steps (or the Build System docs)

Usage

ascii-chat uses a unified binary with three modes: server, client, and mirror.

Start a server and wait for client connections:

# NOTE: on Windows the filename is ascii-chat.exe
ascii-chat [binary-options...] server [server-options...]

Connect to a server as a client:

ascii-chat [binary-options...] client [<address>] [client-options...]

View your local webcam without a network connection (mirror mode):

ascii-chat [binary-options...] mirror [mirror-options...]

Get help for any mode:

ascii-chat --help             # Top-level help
ascii-chat server --help      # Server-specific help
ascii-chat client --help      # Client-specific help
ascii-chat mirror --help      # Mirror-specific help

Man Page:

ascii-chat includes a man page with comprehensive documentation. When installed via Homebrew or a package manager:

man ascii-chat

From the build directory (after running cmake --build build --target docs):

man build/docs/ascii-chat.1

Command line flags

Binary-Level Options

These options apply to all modes (server, client, mirror) and must be specified before the mode:

Configuration:

--config FILE: Load configuration from TOML file
--config-create [PATH]: Create default configuration file and exit

Logging:

-L --log-file FILE: Redirect logs to file (default: server.log/client.log/mirror.log based on mode)
--log-level LEVEL: Set log level: dev, debug, info, warn, error, fatal (default: info in release, debug in debug builds)
-V --verbose: Increase verbosity (stackable: -V, -VV, -VVV for more detail)
-q --quiet: Disable console logging (logs only to file)

Information:

--version: Display version information
--help: Show help message

Example:

# Binary options come before the mode
ascii-chat -V --log-level debug --log-file /tmp/debug.log client
ascii-chat --config ~/my-config.toml server

Client Options

Run ascii-chat client --help to see all client options.

Connection (positional argument):

Client accepts 0-1 positional argument for server address:

[address][:port]: Server address with optional port
- address: IPv4, IPv6, or hostname (default: localhost)
- :port: Optional port suffix (default: 27224)

Examples:

ascii-chat client                      # Connect to localhost:27224
ascii-chat client 192.168.1.1          # Connect to 192.168.1.1:27224
ascii-chat client example.com:8080     # Connect to example.com:8080
ascii-chat client [::1]:8080           # Connect to IPv6 ::1:8080

Connection (flags):

-p --port PORT: TCP port (default: 27224) - conflicts with port in positional argument
--reconnect VALUE: Automatic reconnection behavior: off, auto, or number 1-999 (default: auto)

Terminal Dimensions:

-x --width WIDTH: Terminal width in characters (auto-detected by default)
-y --height HEIGHT: Terminal height in characters (auto-detected by default)
--stretch: Stretch video to fit without preserving aspect ratio

Webcam Options:

-c --webcam-index INDEX: Webcam device index (0-based, default: 0)
-f --webcam-flip: Toggle horizontal flip of webcam image (default: flipped)
--test-pattern: Use test pattern instead of real webcam (for debugging/testing)
--list-webcams: List available webcam devices and exit

Display & Color:

--color-mode MODE: Color modes: auto, none, 16, 256, truecolor (default: auto)
-M --render-mode MODE: Render modes: foreground (fg), background (bg), half-block (default: foreground)
-P --palette TYPE: ASCII palette: standard, blocks, digital, minimal, cool, custom (default: standard)
-C --palette-chars CHARS: Custom palette characters (implies --palette=custom)
--show-capabilities: Display detected terminal color capabilities and exit
--utf8: Force enable UTF-8/Unicode support

Audio Options:

-A --audio: Enable audio capture and playback
--microphone-index INDEX: Microphone device index (-1 for system default)
--speakers-index INDEX: Speakers device index (-1 for system default)
--list-microphones: List available audio input devices and exit
--list-speakers: List available audio output devices and exit
--audio-analysis: Enable audio analysis for debugging audio quality issues
--no-audio-playback: Disable speaker playback while keeping received audio recording

Performance:

--fps FPS: Desired frame rate, 1-144 (default: 60)
--compression-level LEVEL: zstd compression level 1-9 (default: 1, fastest)
--no-compress: Disable video frame compression and audio encoding entirely
--encode-audio: Force enable Opus audio encoding (overrides --no-compress)
--no-encode-audio: Disable Opus audio encoding, send raw audio samples

Snapshot Mode:

-S --snapshot: Capture single frame from server and exit (useful for scripting, CI/CD)
-D --snapshot-delay SECONDS: Delay in seconds before capturing snapshot (default: 3.0-4.0 for webcam warmup)
--strip-ansi: Remove all ANSI escape codes from output (plain ASCII only)

Encryption:

-E --encrypt: Enable packet encryption (default: enabled if keys are available)
-K --key FILE: SSH/GPG key file for authentication (supports /path/to/key, github:user, gitlab:user, or 'ssh' for auto-detect)
--password PASSWORD: Password for connection encryption
-F --keyfile FILE: Alternative way to specify key file (alias for --key)
--no-encrypt: Disable encryption (for local testing)
--server-key KEY: Expected server public key for identity verification (prevents MITM attacks)

Server Options

Run ascii-chat server --help to see all server options.

Network Binding (positional arguments):

Server accepts 0-2 positional arguments for bind addresses:

0 arguments: bind to defaults (127.0.0.1 and ::1)
1 argument: bind to this IPv4 OR IPv6 address
2 arguments: bind to both (must be one IPv4 and one IPv6)

Examples:

ascii-chat server                      # Bind to 127.0.0.1 and ::1
ascii-chat server 0.0.0.0              # Bind to all IPv4 interfaces
ascii-chat server ::                   # Bind to all IPv6 interfaces
ascii-chat server 0.0.0.0 ::           # Bind to all interfaces (IPv4 and IPv6)
ascii-chat server 127.0.0.1 ::1        # Bind to localhost (IPv4 and IPv6)

Network Binding (flags):

-p --port PORT: TCP port to listen on (default: 27224)
--max-clients N: Maximum concurrent client connections, 1-32 (default: 10)

Display & Palette:

-P --palette TYPE: ASCII palette: standard, blocks, digital, minimal, cool, custom (default: standard)
-C --palette-chars CHARS: Custom palette characters (implies --palette=custom)

Performance:

--compression-level LEVEL: zstd compression level 1-9 (default: 1, fastest)
--no-compress: Disable video frame compression entirely
--encode-audio: Force enable Opus audio encoding (overrides --no-compress)
--no-encode-audio: Disable Opus audio encoding, send raw audio samples
--no-audio-mixer: Disable audio mixer, send silence instead of mixing (debug only)

Encryption:

-E --encrypt: Enable packet encryption (default: enabled if keys are available)
-K --key FILE: SSH/GPG key file for authentication: /path/to/key, github:user, gitlab:user, or 'ssh' for auto-detect
--password PASSWORD: Password for connection encryption
-F --keyfile FILE: Alternative way to specify key file (alias for --key)
--no-encrypt: Disable encryption (for local testing)
--client-keys FILE: File containing allowed client public keys for authentication (whitelist, one per line in authorized_keys format)

Mirror Mode Options

Run ascii-chat mirror --help to see all mirror mode options.

Mirror mode displays your local webcam as ASCII art without any network connection - perfect for testing your webcam, palette settings, and terminal rendering.

Terminal Dimensions:

-x --width WIDTH: Terminal width in characters (auto-detected by default)
-y --height HEIGHT: Terminal height in characters (auto-detected by default)
--stretch: Stretch video to fit without preserving aspect ratio

Webcam Options:

-c --webcam-index INDEX: Webcam device index (0-based, default: 0)
-f --webcam-flip: Toggle horizontal flip of webcam image (default: flipped)
--test-pattern: Use test pattern instead of real webcam
--list-webcams: List available webcam devices and exit

Display & Color:

--color-mode MODE: Color modes: auto, none, 16, 256, truecolor (default: auto)
-M --render-mode MODE: Render modes: foreground (fg), background (bg), half-block (default: foreground)
-P --palette TYPE: ASCII palette: standard, blocks, digital, minimal, cool, custom (default: standard)
-C --palette-chars CHARS: Custom palette characters (implies --palette=custom)
--show-capabilities: Display detected terminal color capabilities and exit
--utf8: Force enable UTF-8/Unicode support

Performance:

--fps FPS: Desired frame rate, 1-144 (default: 60)

Snapshot Mode:

-S --snapshot: Capture single frame and exit (useful for testing palettes)
-D --snapshot-delay SECONDS: Delay in seconds before capturing snapshot (default: 3.0-4.0 for webcam warmup)
--strip-ansi: Remove all ANSI escape codes from output (plain ASCII only)

Example:

# View webcam with custom palette
ascii-chat mirror --palette blocks

# Test truecolor rendering with half-block mode
ascii-chat mirror --color-mode truecolor --render-mode half-block

# Capture a single snapshot with debug logging
ascii-chat -V --log-level debug mirror --snapshot

Cryptography

🔐 Protocol details: Cryptographic Handshake Documentation

ascii-chat supports end-to-end encryption using libsodium with Ed25519 key authentication and X25519 key exchange.

ascii-chat's crypto works like your web browser's HTTPS: the client and server perform the Diffie-Hellman exchange to establish secure communication with ephemeral keys every connection. HTTPS depends on certificates tied to DNS names with a certificate authority roots build into the operating system, but ascii-chat is built on TCP so DNS doesn't work for us to secure our servers. ascii-chat users need to verify their server's public keys manually until ACDS (ascii-chat discovery service) is built.

Authentication Options

SSH/GPG Key Authentication (--key):

Use your existing SSH Ed25519 keys for authentication
Use GPG Ed25519 keys via gpg-agent (no passphrase prompts)
Supports encrypted SSH keys (prompts for passphrase or uses ssh-agent)
Supports GitHub public keys with --client-keys github:username and --server-key github:username
GPG key formats: gpg:KEYID where KEYID is 8, 16, or 40 hex characters (short/long/full fingerprint)

Password-Based Encryption (--password):

Simple password string for encrypting connections
Can be combined with --key for dual authentication + encryption

Ephemeral Keys (default):

When no authentication is provided, generates temporary keypair for the session

Usage Examples

# SSH key authentication (prompts for passphrase if encrypted)
ascii-chat client --key ~/.ssh/id_ed25519

# GPG key authentication (uses gpg-agent, no passphrase prompt)
ascii-chat server --key gpg:897607FA43DC66F612710AF97FE90A79F2E80ED3

# Password-based encryption
ascii-chat server --password "hunter2"

# Both SSH key + password (double security)
ascii-chat client --key ~/.ssh/id_ed25519 --password "extra_encryption"

# Disable encryption (for local testing)
ascii-chat server --no-encrypt

# Server key verification with SSH (client verifies server identity)
ascii-chat client --key ~/.ssh/id_ed25519 --server-key ~/.ssh/server1.pub
# This .pub file format is standard OpenSSH public key format (ssh-ed25519).

# Server key verification with GPG (client verifies server identity)
ascii-chat client --server-key gpg:897607FA43DC66F612710AF97FE90A79F2E80ED3

# Server key verification using GitHub GPG keys (fetches server's GPG keys from GitHub)
ascii-chat client --server-key github:zfogg.gpg

# Server key verification using GitLab GPG keys
ascii-chat client --server-key gitlab:username.gpg

# Client key whitelisting (server only accepts specific clients)
ascii-chat server --key ~/.ssh/id_ed25519 --client-keys allowed_clients.txt
# This .txt file contains multiple .pub file contents, 1 per line, where each line is a client key that is allowed to connect to the server.

# GitHub GPG key whitelisting (fetch client's public GPG keys from GitHub)
ascii-chat server --key gpg:MYKEYID --client-keys github:zfogg.gpg
# Server fetches all GPG public keys from https://github.com/zfogg.gpg and whitelists them
# Client must authenticate with their GPG key:
ascii-chat client --key gpg:897607FA43DC66F612710AF97FE90A79F2E80ED3 --server-key gpg:MYKEYID

# GitLab GPG key whitelisting (same but from GitLab)
ascii-chat server --key gpg:MYKEYID --client-keys gitlab:username.gpg

# Combine all three for maximum security!
ascii-chat server --key ~/.ssh/id_ed25519 --client-keys ~/.ssh/client1.pub --password "password123"
# You need to know (1) the server public key and (2) the password before connecting, and the server needs to know (3) your public key and (4) the same password.

# GPG key with password for extra security
ascii-chat server --key gpg:7FE90A79F2E80ED3 --password "password123"

libasciichat

ascii-chat is built on a modern, reusable C library called libasciichat that can be embedded in other projects. The library provides production-ready implementations for video processing, networking, cryptography, and cross-platform development. You can install libasciichat as a development dependency and use it in your own applications.

What's in the library:

Network Protocol: Full implementation of the ascii-chat client/server protocol with encrypted packet exchange, lossless frame compression (zstd), and audio codec integration (Opus). See the protocol reference in the docs.
Image Processing: The video module converts images to ASCII art with hardware acceleration via SIMD (AVX2, NEON, SSE) for 1-4x performance gains. Includes grid layout algorithms for multi-client rendering.
Platform Abstraction: Write once, run anywhere. Cross-platform abstractions for threads, mutexes, read-write locks, condition variables, sockets, and terminal I/O that work identically on Windows, macOS, and Linux.
Media Support: Audio capture, mixing, and playback via PortAudio; webcam integration with V4L2 (Linux), AVFoundation (macOS), and Media Foundation (Windows); frame buffering and synchronization.
Cryptography: End-to-end encryption with libsodium (X25519 key exchange, XSalsa20-Poly1305 AEAD, Ed25519 signatures) and SSH key authentication with agent support.
Debugging & Profiling: Built-in memory leak detection with source file/line tracking, lock contention analysis, AddressSanitizer integration, and comprehensive logging infrastructure.
Memory Management: High-performance buffer pooling, lock-free ring buffers, and thread-safe packet queues designed for real-time video/audio applications.

Install libasciichat:

# macOS (Homebrew)
brew install libasciichat

# Arch Linux (AUR)
paru -S libasciichat       # Stable release
paru -S libasciichat-git   # Latest from git

The library headers, static and shared libraries, and API documentation are included. Installation also provides CMake config files (asciichatConfig.cmake) and pkg-config metadata (libasciichat.pc) for integration into your own projects.

Using libasciichat in your CMake project:

find_package(asciichat REQUIRED)
target_link_libraries(your_project asciichat::asciichat)

Using libasciichat with pkg-config:

pkg-config --cflags --libs libasciichat

See the online API documentation for detailed function references and architecture guides.

Open Source

ascii-chat is an open source project with an MIT license, meaning you can and should use our code to make cool stuff. Follow through this Open Source section of the README and you'll be compiling against libasciichat in no time.

💡 For detailed API documentation, see the online docs — includes function references, architecture diagrams, and module documentation generated from source comments.

The first thing you need to do is get the dependencies. Some of them are git submodules of the repo. When you clone the repo get the submodules too.

git submodule init
git submodule update --recursive

Now let's list out and talk about the dependencies before we install them.

Dependencies

📦 Complete guide: Build System / Dependencies

ascii-chat is built on operating system code and several libraries.

List of Dependencies and What We Use Them For

musl libc - A small and focused implementation of the C standard library for Linux
- Purpose: This enables us to nicely make static builds that work on any Linux system. This is just for Linux releases - you can build ascii-chat with your system libc if you don't want to use musl (cmake -B build -DUSE_MUSL=OFF).
- License: MIT
mimalloc - A drop-in replacement for malloc()
- Purpose: Better performing memory allocation. ascii-chat releases are build with mimalloc but you can build without it if you want to use the system default allocator (cmake -B build -DUSE_MIMALLOC=OFF).
- License: MIT
PortAudio - Audio I/O Library
- Purpose: So the clients can talk to and hear each other. This library provides audio via the same interface on all three major operating systems, which is really neat because for webcam code I have to work with three different operating system APIs to build ascii-chat.
- License: MIT
tomlc17 - TOML File Library
- Purpose: Modern implementation of TOML for config file parsing and editing. For ~/.config/ascii-chat/config.toml.
- License: MIT
uthash - Hash Table Library
- Purpose: Gives us fast O(1) lookups for the server's client manager, and persistent memory for caching data
- License: BSD revised
libsodium - Cryptographic Library
- Purpose: I use this for the crypto protocol, which you can read more about below. End-to-end encryption and authentication of the protocol's packets, with features like password protection and re-keying.
- License: ISC
libsodium-bcrypt-pbkdf - libsodium-Compatible Code
- Purpose: Exports a single function that does the blowfish cipher key derivation needed for decrypting ed25519 keys. This code for bcrypt + BearSSL for aes-ctr and aes-cbc + libsodium crypto algorithms = the ability to decrypt and use password-protected ~/.ssh/id_ed25519 files.
- License: [none]
BearSSL - SSL/TLS Library
- Purpose: We need this for our custom HTTPS client, to fetch public keys from GitHub/GitLab for encryption authorization. We also use its aes-ctr and aes-cbc functions with libsodium-bcrypt-pkdf to decrypt ed25519 keys.
- License: MIT
zstd - Compression Library
- Purpose: To make the protocol more efficient. Makes all the protocol packets smaller at the cost of some compute time every frame. Check out lib/compression.c, it's pretty small.
- License: BSD/GPLv2
Opus - Audio Codec Library
- Purpose: Real-time audio compression for low-bandwidth audio transmission. Enables high-quality bidirectional voice and audio communication between clients with minimal latency and bandwidth overhead.
- License: BSD
Sokol - Utility Library
- Purpose: Header-only C library providing simple cross-platform APIs (random collection of header-only SDKs for things like timing and audio and async downloads).
- License: zlib/libpng
liburcu - Userspace RCU (Read-Copy-Update) Library
- Purpose: Lock-free synchronization for high-performance concurrent data structures in the ACDS (ASCII-Chat Discovery Service). Provides read-side access that scales linearly with CPU cores, achieving 5-10x performance improvement on read-heavy workloads compared to traditional rwlock approaches.
- License: LGPLv2.1
SQLite3 - Embedded SQL Database Engine
- Purpose: Persistent storage for the ACDS (ASCII-Chat Discovery Service) session database. Stores active sessions, user identities, and connection metadata for the discovery service.
- License: Public Domain

Operating System APIs

🔌 Cross-platform details: Platform Abstraction Layer

ascii-chat uses native platform APIs for each platform for webcam access:

Linux: V4L2 Linux kernel module
macOS: AVFoundation native macOS API
Windows: Media Foundation native Windows API

Install Dependencies on Linux or macOS

Linux (apt/yum/pacman):

./scripts/install-deps.sh

macOS:

brew install make cmake ninja llvm zstd portaudio opus libsodium criterion userspace-rcu sqlite3

Install Dependencies on Windows

Install Scoop (if not already installed):

Set-ExecutionPolicy -ExecutionPolicy RemoteSigned -Scope CurrentUser
irm get.scoop.sh | iex

Install build tools via Scoop:
```
scoop install cmake ninja llvm
```
Install Windows SDK:
- Download and install Visual Studio Build Tools
- Or install via Scoop: scoop install windows-sdk-10-version-2004

Install dependencies via vcpkg:

# Install vcpkg (if not already installed)
git clone https://github.com/Microsoft/vcpkg.git
cd vcpkg
.\bootstrap-vcpkg.bat

# Install required packages for a development build
vcpkg install zstd:x64-windows portaudio:x64-windows opus:x64-windows libsodium:x64-windows liburcu:x64-windows sqlite3:x64-windows

# If you want to do a release build
vcpkg install zstd:x64-windows-static portaudio:x64-windows-static opus:x64-windows-static libsodium:x64-windows-static liburcu:x64-windows-static sqlite3:x64-windows-static mimalloc:x64-windows

‼️ Note: Criterion, our test framework, is POSIX based, and so tests don't work on Windows natively. You can run tests via Docker with ./tests/scripts/run-docker-tests.ps1.

Build from source

📚 See also: Build System Documentation — CMake presets, configuration options, and platform-specific build details.

For open source developers who want a working copy:

Clone this repository: git clone git@github.com:zfogg/ascii-chat.git; ls ascii-chat && cd ascii-chat.
Install the dependencies for your platform (see Dependencies above or the Build System / Dependencies docs).
Build an optimized-with-debug build: make CMAKE_BUILD_TYPE=RelWithDebInfo.
Run ./build/bin/ascii-chat server.
Open a second terminal window, tab, split, or pane. Or go to another computer.
Run ./build/bin/ascii-chat client.
👯 Optional: open more terminals and run more clients! ascii-chat is multiplayer 🔢. They'll all connect and show in a grid. On macOS you can just open multiple terminals and run ascii-chat client in each one. On Windows and Linux computers only one program can use a webcam at a time, so use multiple computers to test connecting multiple clients to the server (call a friend).

make configures CMake for you; if you prefer manual steps, you can still run cmake directly: cmake --preset default && cmake --build build (or choose another --preset).

What is musl and mimalloc?

musl libc: A lightweight, fast, and simple C standard library alternative to glibc. Release builds (cmake --preset release) use musl to create statically linked binaries that have no external dependencies - perfect for deployment as they work on any Linux system without requiring specific libraries to be installed.

mimalloc: Microsoft's high-performance memory allocator. Release builds use mimalloc instead of the system allocator for better performance. It provides:

Up to 2x faster allocation/deallocation
Better memory locality and cache performance
Lower memory fragmentation
Optimized for multi-threaded workloads

Development Tools

First configure a debug build so the cmake targets we want will be available:

cmake --preset debug

Now we can access useful development targets:

cmake --build build --target format - Format all source code using clang-format
cmake --build build --target format-check - Error if the code is not formatted correctly
cmake --build build --target clang-tidy - Run clang-tidy across the tree
cmake --build build --target docs - Generate the Doxygen API reference into build/docs/html
cmake --build build --target docs-open - Build and open the docs in your default browser
cmake --build build --target package-productbuild - Build a release and make a .pkg installer for macOS (analogous targets exist per platform.. try --target package-deb for a .deb installer on Linux)
./build.ps1 - PowerShell helper that stops running binaries, cleans, configures, builds, and syncs artifacts into bin/ when developing on Windows
ctest --test-dir build --output-on-failure --parallel 0 - Run all tests with ctest (auto-detects CPU cores).
./tests/scripts/run-docker-tests.ps1 - Runs tests in a Docker container. Useful on Windows where Criterion tests don't compile.
./scripts/* - Developer utilities (dependency installers, useful aliases and functions, etc.)

Sanitizers giving you trouble? Here's how to build a Dev build, which is like Debug but with sanitizers disabled:

cmake --preset dev && cmake --build build --target ascii-chat

Configuration Options

Pass these Boolean options via -D<option>=ON|OFF when configuring CMake (for example cmake -B build -DASCIICHAT_ENABLE_ANALYZERS=ON). Defaults reflect the logic in our CMake modules. For complete details, see the Build System Reference.

USE_MUSL (Linux only): defaults to ON for Release/RelWithDebInfo builds to produce static PIE binaries with musl + mimalloc; OFF for other build types and on non-Linux hosts.
USE_MIMALLOC: defaults to ON whenever we're optimizing for performance (Release/RelWithDebInfo or musl builds), and OFF for Debug/Dev configurations to keep debugging predictable.
BUILD_TESTS: defaults to ON so Criterion unit/integration/performance tests are compiled.
USE_PRECOMPILED_HEADERS: defaults to ON (requires CMake ≥ 3.16 and is disabled automatically for musl builds) to accelerate core library builds.
USE_CCACHE: defaults to ON to speed up rebuilds with ccache (forced OFF when musl is enabled).
USE_CPACK: defaults to ON to make packaging targets (package, package-productbuild, etc.) available. The release preset turns this ON.
ASCIICHAT_RELEASE_ENABLE_FAST_MATH: defaults to OFF; flip to ON to allow aggressive fast-math optimizations in Release builds. The release preset turns this ON.
ASCIICHAT_RELEASE_KEEP_FRAME_POINTERS: defaults to ON; set OFF if you want slightly tighter Release binaries and are okay with poorer stack traces. The release preset turns this OFF.
ASCIICHAT_ENABLE_ANALYZERS: defaults to OFF; enable to wire clang-tidy/cppcheck into the build (respecting ASCIICHAT_CLANG_TIDY/ASCIICHAT_CPPCHECK overrides). The release preset turns this OFF.
ASCIICHAT_ENABLE_UNITY_BUILDS: defaults to OFF, but the presets turn it ON; enable to batch-compile sources for faster rebuilds on some toolchains.
ASCIICHAT_ENABLE_CTEST_DASHBOARD: defaults to OFF; enable to include CTest dashboard configuration (include(CTest)). All presets except release and release-musl turn this ON.

Documentation

📖 Online Documentation: zfogg.github.io/ascii-chat

The documentation is automatically generated from source code comments using Doxygen and published to GitHub Pages on every push to master.

To build documentation locally:

Install Doxygen (brew install doxygen, apt-get install doxygen, etc.) to enable the documentation targets.
Configure a build (cmake --preset default) to let cmake find the doxygen binary.
Run cmake --build build --target docs to generate HTML + manpage docs in build/docs/.
Run cmake --build build --target docs-open to generate the docs and open build/docs/html/index.html in your default browser (works on macOS, Linux, and Windows).

Testing

🧪 Full documentation: Testing Framework

Testing Framework

Framework: libcriterion
Coverage: Code coverage reports generated in CI
Performance: SIMD performance tests with aggressive speedup expectations (1-4x)
Memory Checking: Comprehensive sanitizer support via -b debug for detecting memory issues, undefined behavior, and more

Tests are run using CMake's ctest tool, which integrates with Criterion for parallel execution and XML output.

Quick Start

Have the dependencies installed.
Choose:
1. Linux or macOS: Use ctest directly
2. Windows: Use Docker: ./tests/scripts/run-docker-tests.ps1

Test Types

Unit Tests: Test individual components in isolation
Integration Tests: Test component interactions and full workflows
Performance Tests: Benchmark stuff like SIMD vs scalar implementations

Running Tests with ctest

# Build tests first
cmake --build build --target tests

# Run all tests
ctest --test-dir build --output-on-failure --parallel 0

# Run specific test categories using labels
ctest --test-dir build --label-regex "^unit$" --output-on-failure
ctest --test-dir build --label-regex "^integration$" --output-on-failure
ctest --test-dir build --label-regex "^performance$" --output-on-failure

# Run specific tests by name pattern
ctest --test-dir build -R "buffer_pool" --output-on-failure
ctest --test-dir build -R "test_unit_options" --output-on-failure

# Verbose output
ctest --test-dir build --output-on-failure --verbose

# List available tests
ctest --test-dir build -N

Windows Docker Testing

On Windows, since Criterion is POSIX-based, tests must be run in a Docker container. Use the PowerShell wrapper script:

# Run all tests
./tests/scripts/run-docker-tests.ps1

# Run specific test category
./tests/scripts/run-docker-tests.ps1 unit
./tests/scripts/run-docker-tests.ps1 integration
./tests/scripts/run-docker-tests.ps1 performance

# Run tests matching a pattern
./tests/scripts/run-docker-tests.ps1 -Filter "buffer"

# This script can also run clang-tidy static analysis
./tests/scripts/run-docker-tests.ps1 clang-tidy
./tests/scripts/run-docker-tests.ps1 clang-tidy lib/common.c

# INFO: powershell doesn't like when you pass -Verbose to a script - use -VerboseOutput
./tests/scripts/run-docker-tests.ps1 unit options -VerboseOutput

The Docker script automatically:

Builds the test container if needed
Mounts your source code for live testing
Handles incremental builds
Provides the same test interface as the native script

Manual Test Execution

You can also run individual test executables directly:

# Build the project first
cmake --preset debug && cmake --build build

# Run individual tests
build/bin/test_unit_mixer --verbose
build/bin/test_performance_ascii_simd --filter "*monochrome*"

Environment Variables

ascii-chat uses several environment variables for configuration and security controls. These variables can be set to modify the program's behavior without changing command-line arguments.

Security Variables

ASCII_CHAT_INSECURE_NO_HOST_IDENTITY_CHECK
- Purpose: Disables host identity verification (known_hosts checking)
- Values: 1 (enable), unset or any other value (disable, default)
- ⚠️ DANGER: This completely bypasses security checks and makes connections vulnerable to man-in-the-middle attacks
SSH_AUTH_SOCK
- Purpose: SSH agent socket for secure key authentication
- Values: Path to SSH agent socket (e.g., /tmp/ssh-XXXXXX/agent.12345)
- Security: ✅ Secure - uses SSH agent for key management
- When to use: Preferred method for SSH key authentication (automatically detected)
- Used for: SSH key authentication without storing passphrases in environment
ASCII_CHAT_KEY_PASSWORD
- Purpose: Provides key passphrase for encrypted SSH or GPG keys
- Values: The passphrase string for your encrypted key
- Security: ⚠️ Sensitive data - contains your key passphrase - prefer ssh-agent/gpg-agent over this (we support both)
- When to use: When using encrypted keys and you want to avoid interactive passphrase prompts

Terminal Variables (Used for Display Detection)

TERM
- Purpose: Terminal type detection for display capabilities
- Usage: Automatically set by terminal emulators
- Used for: Determining color support, character encoding, and display features
COLORTERM
- Purpose: Additional terminal color capability detection
- Usage: Automatically set by modern terminal emulators
- Used for: Enhanced color support detection beyond TERM
LANG, LC_ALL, LC_CTYPE
- Purpose: Locale and character encoding detection
- Usage: Automatically set by system locale
- Used for: UTF-8 support detection and character encoding
TTY
- Purpose: Terminal device detection
- Usage: Automatically set by terminal sessions
- Used for: Determining if running in a real terminal vs. script
LINES, COLUMNS
- Purpose: Terminal size detection for display dimensions
- Usage: Automatically set by terminal emulators
- Used for: Auto-detecting optimal video dimensions

POSIX-Specific Variables

USER
- Purpose: Username detection for system identification on POSIX systems
- Usage: Automatically set by POSIX systems
- Used for: System user identification and logging
HOME
- Purpose: Determines user home directory for configuration files on POSIX systems
- Usage: Automatically detected by the system
- Used for:
  - SSH key auto-detection (~/.ssh/)
  - Configuration file paths (~/.ascii-chat/)
  - Path expansion with ~ prefix

Windows-Specific Variables

USERNAME
- Purpose: Username detection for system identification on Windows
- Usage: Automatically set by Windows system
- Used for: System user identification and logging
USERPROFILE
- Purpose: Determines user home directory for configuration files on Windows
- Usage: Automatically detected by the Windows system
- Used for:
  - SSH key auto-detection (~/.ssh/)
  - Configuration file paths (~/.ascii-chat/)
  - Path expansion with ~ prefix
_NT_SYMBOL_PATH
- Purpose: Windows debug symbol path for crash analysis
- Usage: Automatically set by Windows debug tools
- Used for: Enhanced crash reporting and debugging

Development/Testing Variables

CI
- Purpose: Continuous Integration environment detection
- Values: Any non-empty value indicates CI environment
- Used for: Adjusting test behavior and terminal detection in automated environments
TESTING, CRITERION_TEST
- Purpose: Test environment detection
- Values: Any non-empty value indicates test environment
- Used for: Reducing test data sizes and adjusting performance expectations
WEBCAM_DISABLED
- Purpose: Automatically enables test pattern mode without requiring --test-pattern flag
- Values: 1, true, yes, or on (case-insensitive for string values)
- Used for: CI/CD pipelines and testing environments where no physical webcam is available
- Effect: Sets opt_test_pattern = true, causing the client to use a generated test pattern instead of webcam input

TODO

Notes

Note: Colored frames are many times larger than monochrome frames due to the ANSI color codes.
We don't really save bandwidth by sending color ascii video. I did the math with Claude Code.

Name		Name	Last commit message	Last commit date
Latest commit History 2,985 Commits
.claude		.claude
.github		.github
.vscode		.vscode
cmake		cmake
deploy/acds/coturn		deploy/acds/coturn
deps		deps
docs		docs
git-hooks		git-hooks
images		images
lib		lib
notes		notes
scripts		scripts
share		share
src		src
tests		tests
todo		todo
.bazelversion		.bazelversion
.clang		.clang
.clang-format		.clang-format
.clang-tidy		.clang-tidy
.cursorignore		.cursorignore
.dockerignore		.dockerignore
.editorconfig		.editorconfig
.gitignore		.gitignore
.gitmodules		.gitmodules
.rgignore		.rgignore
CLAUDE.md		CLAUDE.md
CMakeLists.txt		CMakeLists.txt
CMakePresets.json		CMakePresets.json
Dockerfile		Dockerfile
Info.plist		Info.plist
LICENSE.txt		LICENSE.txt
Makefile		Makefile
README.md		README.md
TODO-SUMMARY.md		TODO-SUMMARY.md
build.ps1		build.ps1
codecov.yml		codecov.yml

License

zfogg/ascii-chat

Folders and files

Latest commit

History

Repository files navigation

💻📸 ascii-chat 🔡💬

Animated Demonstrations

Code Coverage

Table of Contents

Get ascii-chat

Usage

Command line flags

Binary-Level Options

Client Options

Server Options

Mirror Mode Options

Cryptography

Authentication Options

Usage Examples

libasciichat

Open Source

Dependencies

List of Dependencies and What We Use Them For

Operating System APIs

Install Dependencies on Linux or macOS

Install Dependencies on Windows

Build from source

What is musl and mimalloc?

Development Tools

Configuration Options

Documentation

Testing

Testing Framework

Quick Start

Test Types

Running Tests with ctest

Windows Docker Testing

Manual Test Execution

Environment Variables

Security Variables

Terminal Variables (Used for Display Detection)

POSIX-Specific Variables

Windows-Specific Variables

Development/Testing Variables

TODO

Notes

About

Topics

Resources

License

Uh oh!

Stars

Watchers

Forks

Releases 17

Packages 0

Uh oh!

Uh oh!

Contributors 6

Uh oh!

Languages

Packages
